6 Port 10G uplink 2.5G web managed Ethernet Switch
- Product No.:SST-HWTG5E1F
【Product Description】

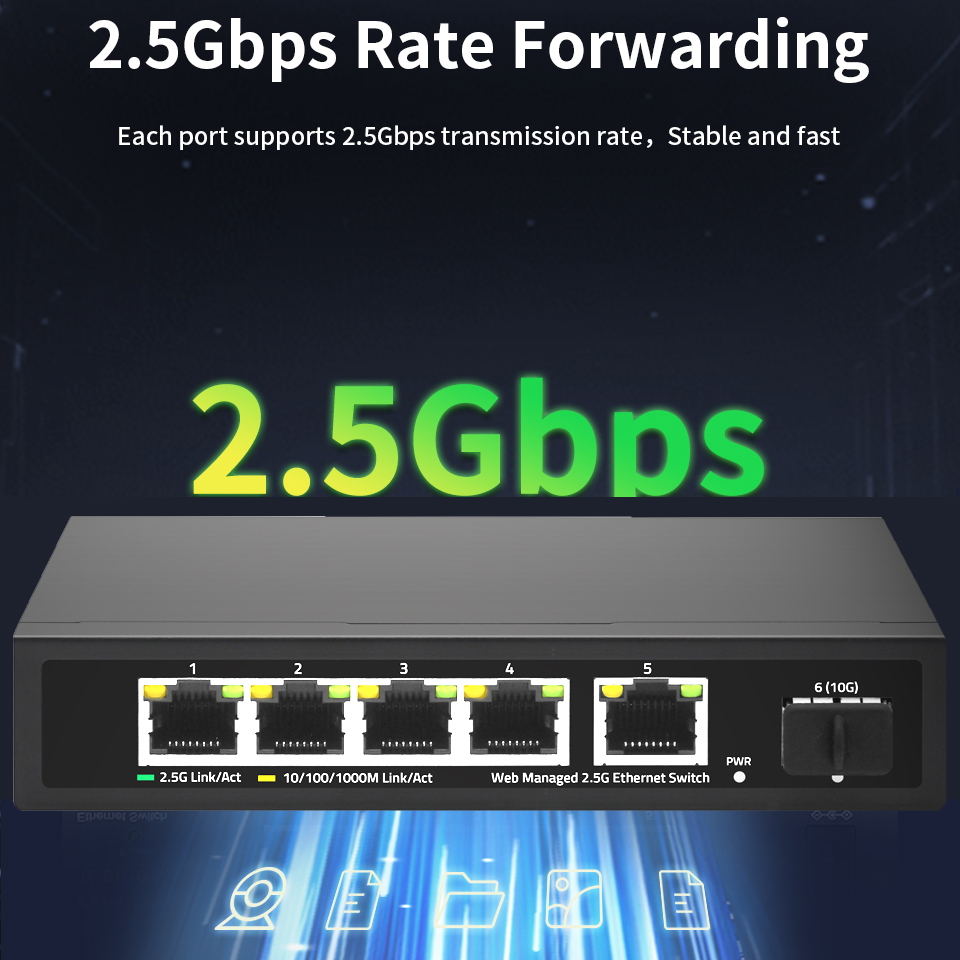

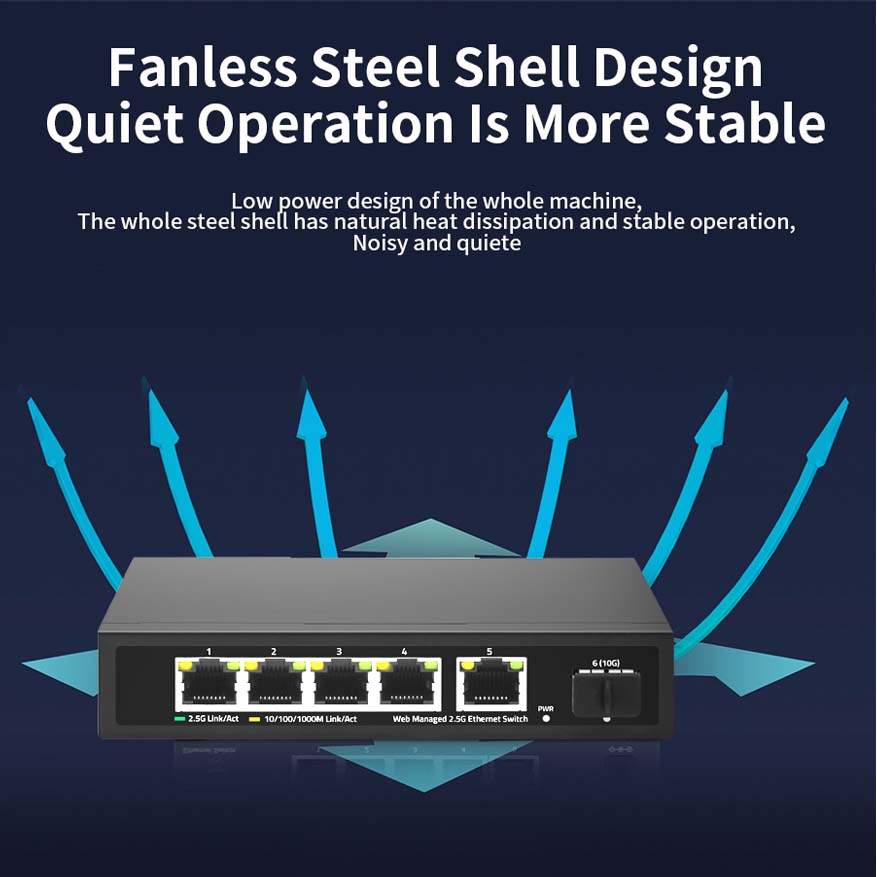

6 Port 10G uplink 2.5G web managed Ethernet Switch, using high quality and high speed network chip solution, this product completely solves the problem of loud noise of small switches deployed in the office environment through the fanless silent design. This switch has 5* 100/1000/2500M RJ45 ports and 1* 10G SFP+ port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.
【Main Features】
5* 100/1000/2500M RJ45 ports+1* 10G SFP+ port;
Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x;
Ethernet ports support 100/1000/2500M self-adaptive;
Support port Auto MDI/MDIX;
Panel indicator lights monitor working status and help failure analysis;
Support QoS data priority;
Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back-pressure standard;
Support surge protection: common mode 6KV; differential mode 2KV; ESD Air 8KV, contact 6KV;
【Application Environment】
Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration, etc.
Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.
Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications.
Real-time monitoring: Simultaneous transmission of real-time control signals, images and data.
【Technical Specification】
I/O Interface |
|
Power |
DC 12/2A |
Ethernet |
5*100/1000/2500M RJ45 Ports 1*10G SFP Port |
Performance |
|
Bandwidth |
45Gbps |
Pack forward rate |
33.48Mpps |
VLAN |
4096 |
MAC address |
4K |
Jumbo Frame |
10Kbytes |
Transfer mode |
Storage & forward |
MTBF |
100000 Hours |
Standard |
|
Network protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) |
Industry standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge) |
Network Medium |
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) |
Optical Medium |
multi mode: 50/125, 62.5/125, 100/140um Single mode: 8/125, 8.7/125, 9/125, 10/125um |
Certificate |
|
Safety certificate |
CE, FCC, RoHS |
Environment Standard |
|
Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
Power Voltage |
Adapter input voltage: AC 100-240 V switch input voltage: DC 12V1A |
Power |
Maximum 24W |
Indicator |
|
PWR (Power) |
On: Powered on Off: Powered off |
SYS |
Flashing: System startup Lighting: System Running |
1-5 Port |
Green On: 2.5G Link connect normal Yellow On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting |
6 Port Green Light |
On: 10G Link connect normal Off: Link off Flashing: data transmitting |
Reset |
Long press for 6 seconds to Factory reset |
Physical Specification |
|
Structure Size |
Product size: 140*93*28mm Package size: 203*160*55mm Product weight: 0.33KG Packing weight: 0.46KG |
Packing Info |
Outer box size: 580*335*445mm Packing quantity: 40 pcs Packing weight: 19.5KG |
Packaging List |
1. Switch 1pcs 2. User manual 1pcs 3. Certificate 1pcs 4. Power adapter 1pcs |
