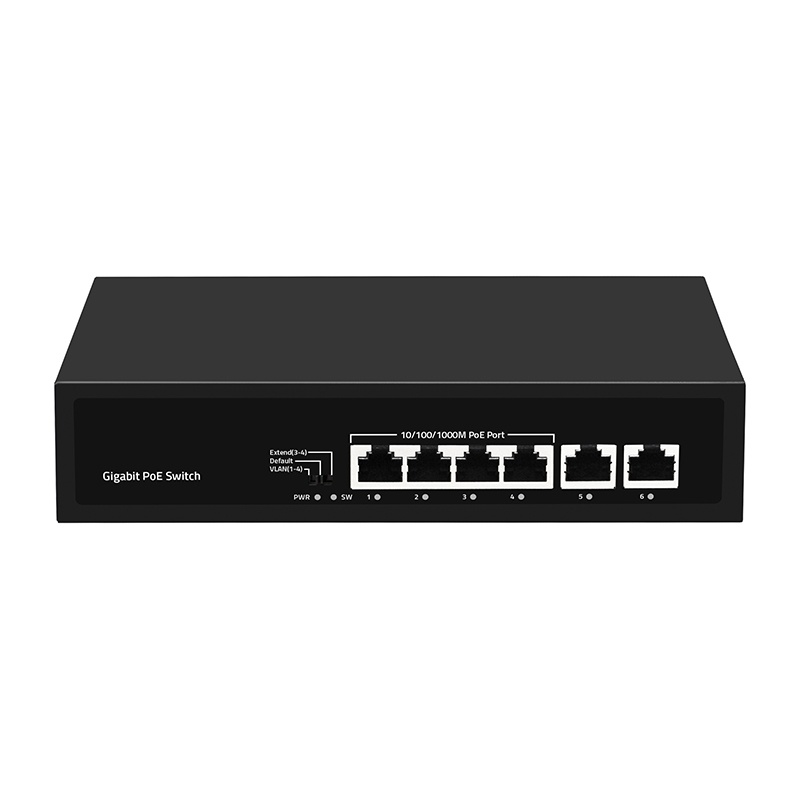

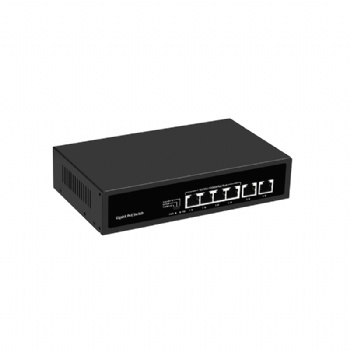

1000Mbps 4 ports PoE switch

Products

1000Mbps 4 ports PoE switch

Product No.:SST- P4ET2ET

  • Details

Product Highlights

1,  4*1Gbps PoE ports+2*1Gbps RJ45 ports
2,  Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x
standards
3,  Ethernet Ports support 10/100/1000Mbps self-adaptive
4,  Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back
pressure standard
5,  Support automatic port flipping (Auto MDI/MDIX)
6,  The panel indicator LEDs will monitor the working status and assist in fault analysis
7,  Support three modes: VLAN, Default, and Extend
8,  Port 1 supports HiPoE 60W

Hardware Features

Description

Specification

Model

SST- P4ET2ET

Interface

4*1Gbps PoE ports

2*1Gbps RJ45 ports

Port Standard

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab (Gigabit Ethernet)

IEEE802.3x (Flow Control)

Switching Bandwidth

12 Gbps

Packet Forwarding Rate

8.928Mpps

Packet Buffer

1Mbit

MAC Address Table

2K

Transmission Method

Store and Forward

PoE Standard

IEEE802.3af (15.4W)

IEEE802.3at (30W)

PoE Port Output Voltage

DC 44-57V

PoE Ports

Ports 2-4 PoE power output <30W

Port 1 supports HiPoE 60W

PoE Power Budget

60W

Power Supply

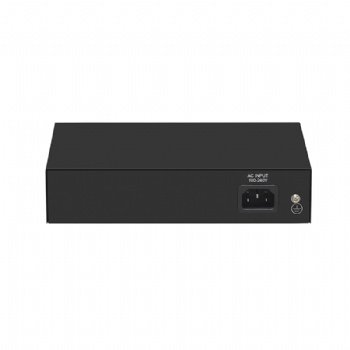

AC 100-240V 50/60Hz

DC 52V 1.25A

Mainboard Power Consumption

3.7W

Structure Information

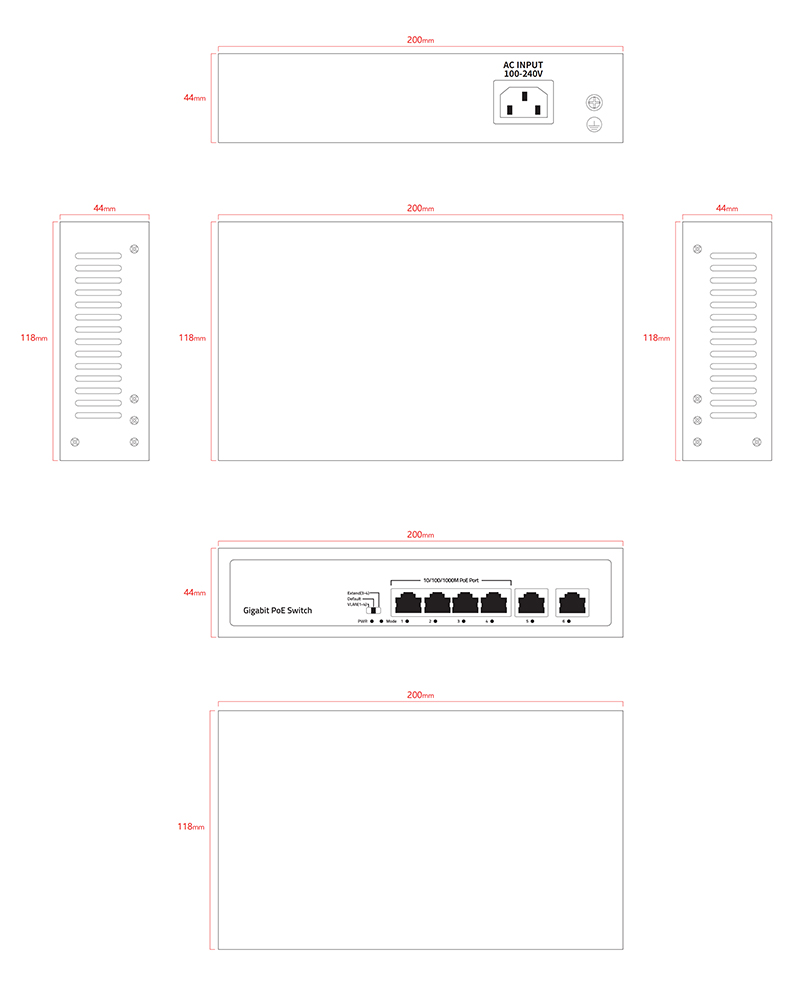

Product Dimensions: 200*118*44mm

Packaging Dimensions: 245*190*60mm

Product Net Weight: 0.61KG

Product Gross Weight: 0.91KG

Packing Information

Carton Dimensions: 520*320*400mm

Packing Quantity: 20PCS

Packing Weight: 19.2KG

Package Contents

Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs

Fan Quantity

0

Installation

Desktop

Surge Protection
Port Surge: Common mode 4KV, Differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV(Class B)
Operating Temperature
0~40°C
Storage Temperature
-40~70°C
Operation Humidity
10%~90%, non condensing
Storage Humidity
5%~95%, non condensing

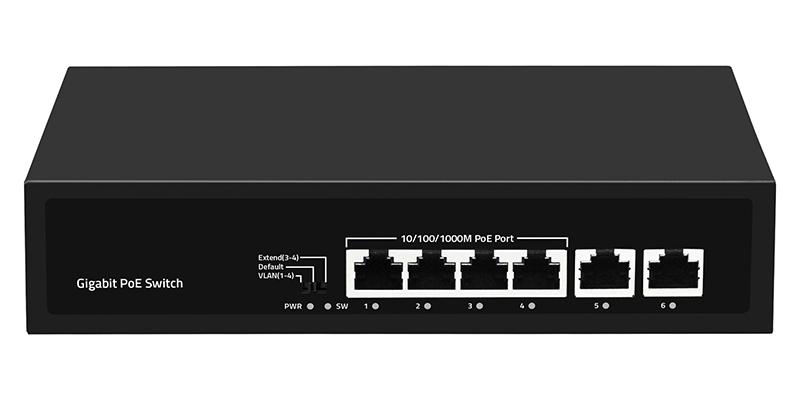

PWR Red LED
On: Powered on
Off: Powered off
SW Green LED
On: VLAN
Flashing: Extend
Off: Default
Ports 1-6 Green LED
On: 10/100/1000Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
VLAN/Default/Extend Modes Buttons
VLAN: VLAN mode, ports 1-4 are isolated from each other, communicating with ports
5-6, and automatically activate the PoE watchdog mode
Default: Normal mode, all ports can communicate with each other, transmission
distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive(PoE
Watchdog off)
Extend: Extend mode, when the PoE port is in Extend mode, ports 3-4 force 10Mbps
to extend the transmission distance to 250meters, and automatically activate the PoE
watchdog mode
