Product Highlights
2， Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, and IEEE 802.3x standards
3， Ethernet Ports support 10/100/1000Mbps self-adaptive
4， PoE ports automatically activate PoE watchdog mode in VLAN and Extend modes
5， Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard
6， Support automatic port flipping (Auto MDI/MDIX)
7， The panel indicator LEDs will monitor the working status and assist in fault analysis
8， Support three modes: VLAN, Default, and Extend
9， Port 1 supports HiPoE 60W
Hardware Features
|
Description |
Specification |
|
Model |
SST- P4ET1ET1S |
|
Interface |
4*1Gbps PoE ports 1*1Gbps RJ45 port 1*1Gbps SFP port |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3x (Flow Control) |
|
Switching Bandwidth |
12Gbps |
|
Packet Forwarding Rate |
8.928Mpps |
|
Packet Buffer |
1Mbit |
|
MAC Address Table |
2K |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Ports |
Port 1 supports HiPoE 60W, Ports 2-4 PoE power output <30W |
|
PoE Power Budget |
60W |
|
Power Supply |

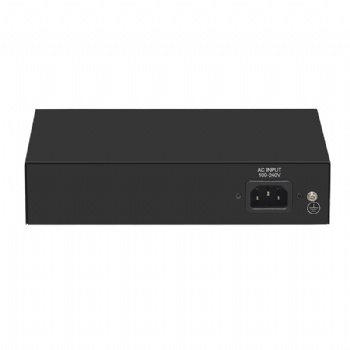

AC 100-240V 50/60Hz DC 52V 1.25A |
|
Mainboard Power Consumption |
3.7W |
|
Structure Information |

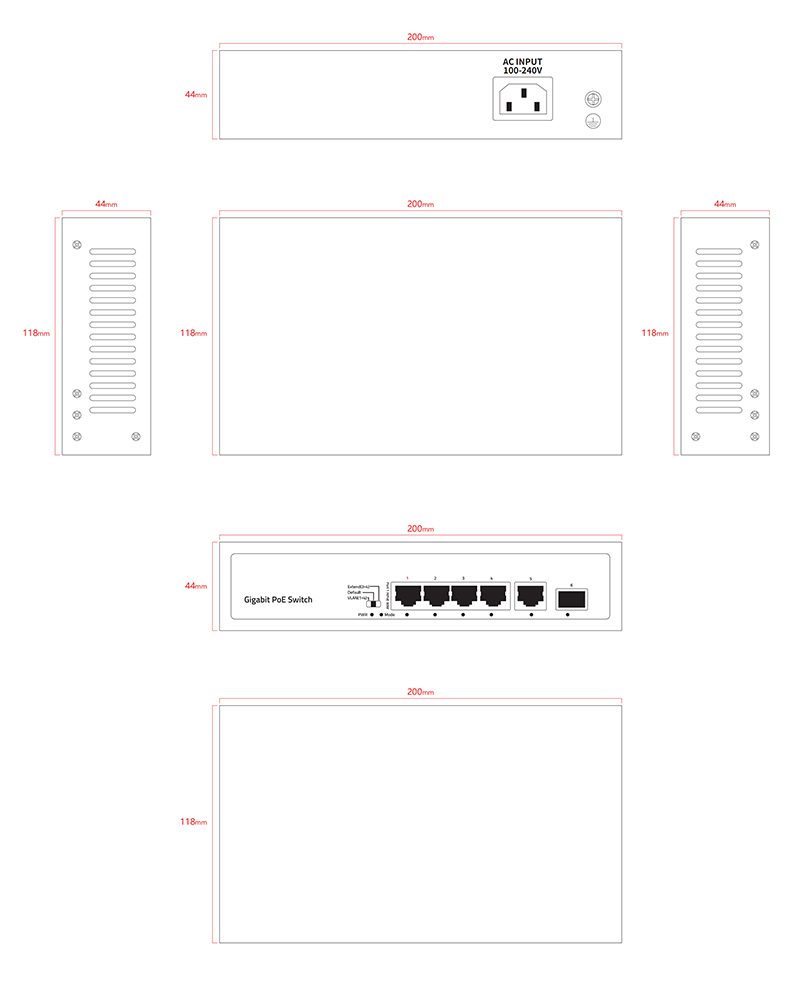

Product Dimensions: 200*118*44mm Packaging Dimensions: 245*190*60mm Product Net Weight: 0.63KG Product Gross Weight: 0.93KG |
|
Packing Information |
Carton Dimensions: 520*320*400mm Packing Quantity: 20PCS Packing Weight: 19.6KG |
|
Package Contents |
Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs |
|
Fan Quantity |
0 |
|
Installation |
Desktop |
| Surge Protection |
Port Surge: Common mode 4KV
Electrostatic ESD: Air 8KV, Contact 6KV
|
|
Operating Temperature
|
0~40°C
|
|
Storage Temperature
|
-40~70°C
|
|
Operation Humidity
|
10%~90%, non condensing
|
|
Storage Humidity
|
5%~95%, non condensing
|
|

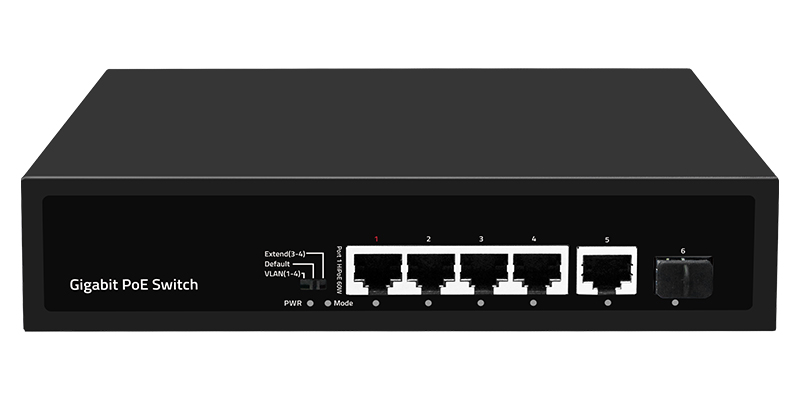

PWR Green LED
|
On: Powered on
Off: Powered off
|
|
Mode Green LED
|
On: VLAN
Flashing: Extend
Off: Default
|
|
Ports 1-6 Green LED
|
On: 10/100/1000Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
|
|
VLAN/Default/Extend Modes Buttons
|
VLAN: VLAN mode, ports 1-4 are isolated from each other, communicating with
ports 5-6, and automatically activate the PoE watchdog mode
Default: Normal mode, all ports can communicate with each other, transmission
distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive(PoE
Watchdog off)
Extend: Extend mode, when the PoE port is in Extend mode, ports 3-4 force 10Mbps
to extend the transmission distance to 250meters, and automatically activate the
PoE watchdog mode
|
