Product Highlights
1, 8*100Mbps PoE ports+2*100Mbps uplink RJ45 ports
2, Comply with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards
3, Ethernet Ports support 10/100Mbps self-adaptive
4, PoE ports automatically activate PoE watchdog mode in VLAN and Extend modes
5, Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back
pressure standard
6, Support automatic port flipping (Auto MDI/MDIX)
7, The panel indicator LEDs will monitor the working status and assist in fault analysis
8, Support three modes: VLAN, Normal, and Extend
9, Port 1 supports HiPoE 60W
Hardware Features
|
Description |
Specification |
|
Model |
SST- P8EH2EH |
|
Interface |
8*100Mbps PoE ports 2*100Mbps uplink RJ45 ports |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) |
|
Switching Bandwidth |
2Gbps |
|
Packet Forwarding Rate |
1.488Mpps |
|
Packet Buffer |
768Kbit |
|
MAC Address Table |
2K |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Ports |
Ports 2-8 PoE power output <30W Port 1 supports HiPoE 60W |
|
PoE Power Budget |
115W |
|
Surge Protection |
Port Surge: Common mode 4KV, Differential mode 2KV(Class B) Electrostatic ESD: Air 8KV, Contact 6KV (Class B) |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-40~70°C |
|
Operation Humidity |
10%~90%, non condensing |
|
Storage Humidity |
5%~95%, non condensing |
|
Power Supply |
AC 100-240V 50/60Hz DC 52V 2.3A |
|
Mainboard Power Consumption |
1.98W |
|
Structure Information |

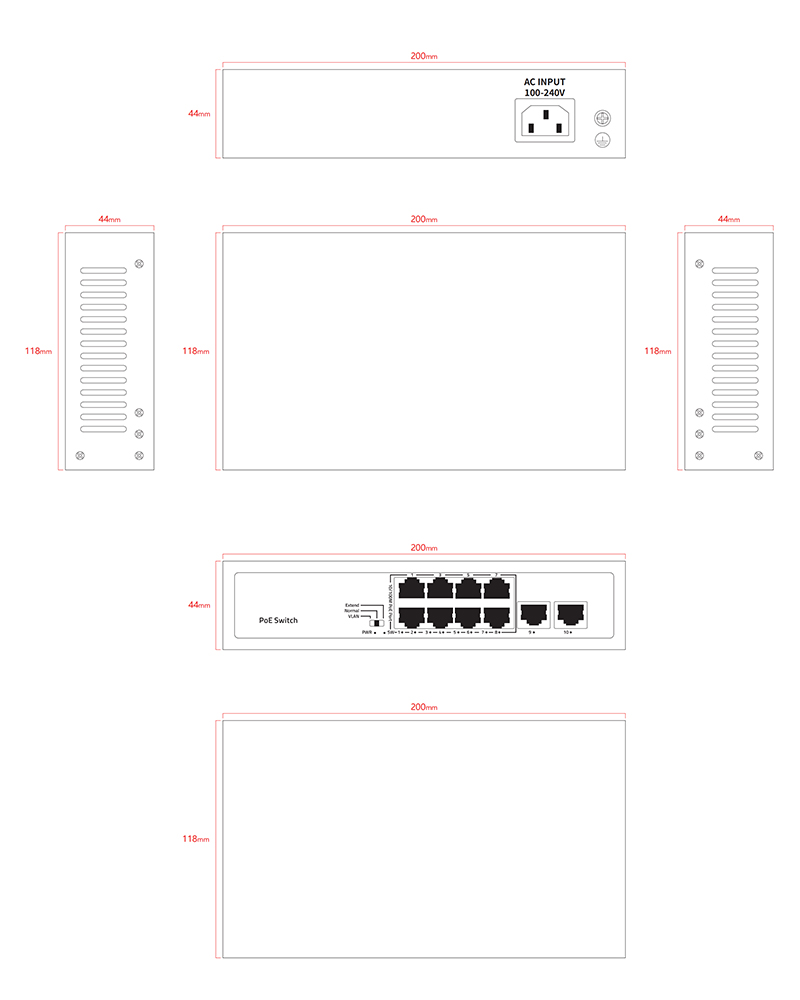

Product Dimensions: 200*118*44mm Packaging Dimensions: 245*190*60mm Product Net Weight: 0.62 KG Product Gross Weight: 0.93 KG |
|
Packing Information |
Carton Dimensions: 520*320*400mm Packing Quantity: 20PCS Packing Weight: 19.6KG |
|
Package Contents |
Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs |
|
Fan Quantity |
0 |
|

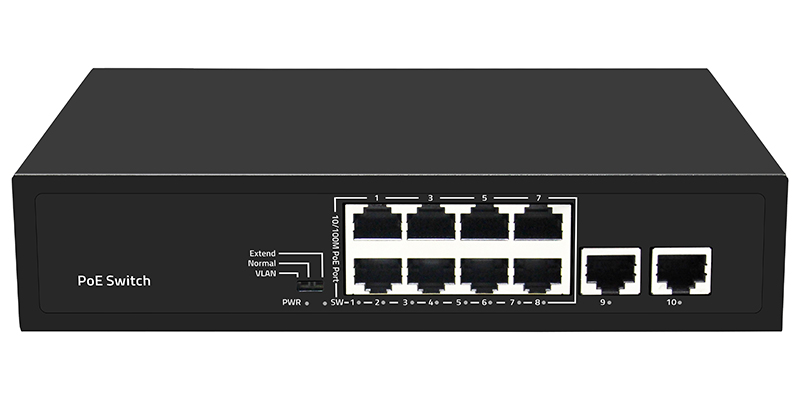

PWR Red LED
|
On: Powered on
Off: Powered off
|
|
SW Green LED
|
On: VLAN
Flashing: Extend
Off: Normal
|
|
Ports 1-10 Green LED
|
On: 10/100Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
|
|
VLAN/Normal/Extend Modes Buttons
|
VLAN: VLAN mode, ports 1-8 are isolated from each other, communicating with
ports 9-10, and automatically activate the PoE watchdog mode
Normal: Normal mode, all ports can communicate with each other, transmission
distance is within 100 meters, transmission rate is 10/100Mbps adaptive(PoE
Watchdog off)
Extend: Extend mode, when the PoE port is in Extend mode, ports 1-8 force 10Mbps
to extend the transmission distance to 250meters, and automatically activate the
PoE watchdog mode
|
