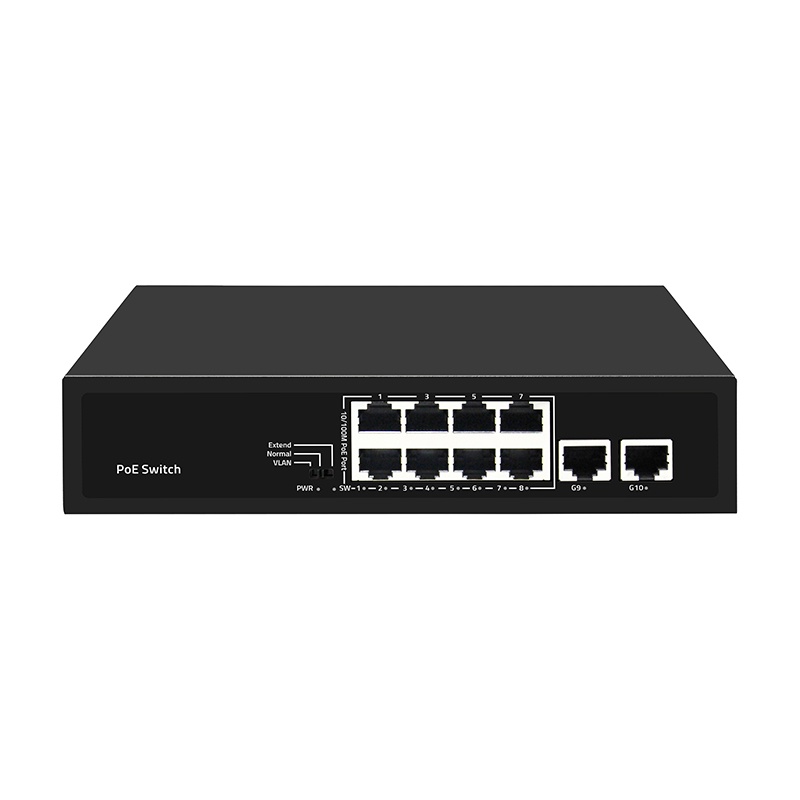

100/1000M AI PoE switc 8 ports

SST- P8EH2ET is a cutting-edge 100/1000M AI PoE switch designed to enhance your network infrastructure. It features 8
PoE ports operating at 10/100Mbps alongside 2 Gigabit uplink RJ45 ports, all compliant with IEEE 802.3af/at standards.
With a robust bandwidth capacity of 5.6Gbps and a total power output of 120W, this switch is perfect for powering multiple
devices while ensuring high-speed data transmission. Additional features include port isolation, 250m transmission range,
PoE watchdog functionality, and surge protection of up to 4KV, making it suitable for use in environments with temperatures
ranging from -10°C to 50°C.

Product Highlights

1, 8*100Mbps PoE ports+2*1Gbps uplink RJ45 ports

2, Comply with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards

3, Ethernet Ports support 10/100Mbps self-adaptive

4, PoE ports automatically activate PoE watchdog mode in VLAN and Extend modes

5, Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back

pressure standard

6, Support automatic port flipping (Auto MDI/MDIX)

7, The panel indicator LEDs will monitor the working status and assist in fault analysis

8, Support three modes: VLAN, Normal, and Extend

9, Port 1 supports HiPoE 60W

Hardware Features

Description	Specification
Model	SST- P8EH2ET
Interface	8100Mbps PoE ports 21Gbps uplink RJ45 ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control)
Switching Bandwidth	5.6Gbps
Packet Forwarding Rate	4.166Mpps
Packet Buffer	1Mbit
MAC Address Table	2K
Transmission Method	Store and Forward
PoE Standard	IEEE802.3af (15.4W) IEEE802.3at (30W)
PoE Port Output Voltage	DC 44-57V
PoE Ports	Ports 2-8 PoE power output <30W Port 1 supports HiPoE 60W
PoE Power Budget	115W
Power Supply	AC 100-240V 50/60Hz DC 52V 2.3A
Mainboard Power Consumption	2.3W

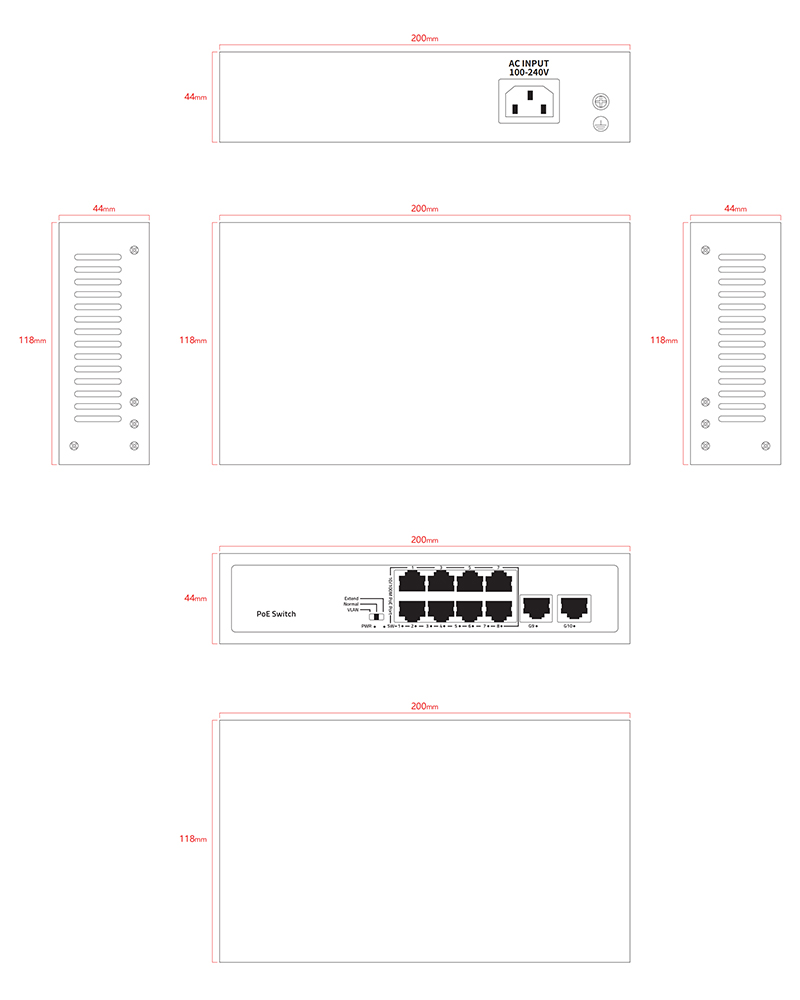

Structure Information	Product Dimensions: 20011844mm Packaging Dimensions: 24519060mm Product Net Weight: 0.62KG Product Gross Weight: 0.93KG
Packing Information	Carton Dimensions: 520320400mm Packing Quantity: 20PCS Packing Weight: 19.6KG
Package Contents	Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Fan Quantity	0
Installation	Desktop
Surge Protection	Port Surge: Common mode 4KV, Differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV (Class B)
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Green LED	On: Powered on Off: Powered off
SW Green LED	On: VLAN Flashing: Extend Off: Norma
Ports 1-10 Green LED	On: Link normal Off: Link blocked Flashing: Data transmitting
VLAN/Normal/Extend Modes Buttons	VLAN: VLAN mode, ports 1-8 are isolated from each other, communicating with ports 9-10, and automatically activate the PoE watchdog mode Normal: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive(PoE Watchdog off) Extend: Extend mode, when the PoE port is in Extend mode, ports 1-8 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode
