high-performance 10-Port Gigabit PoE Switch 110w

SST- P8ET2ETG is a high-performance 10-Port Gigabit PoE Switch designed to enhance your network solutions.
With its robust features, it provides flexible power options and seamless connectivity for various devices, making it ideal
for both small businesses and extensive enterprise networks. This switch ensures reliable data transmission and power
delivery across multiple devices while adhering to industry standards.

Product Highlights

1, 8*1Gbps PoE ports+2*1Gbps RJ45 ports

2, Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards

3, Ethernet Ports support 10/100/1000Mbps self-adaptive

4, PoE ports automatically open PoE watchdog in VLAN and Extend modes

5, Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back

pressure standard

6, The panel indicator LEDs will monitor the working status and assist in fault analysis

7, Support VLAN, Default, and Extend modes

8, Support PoE priority

9, Port 1 supports HiPoE 60W

Hardware Features

Description	Specification
Model	SST- P8ET2ETG
Interface	81Gbps PoE ports 21Gbps uplink RJ45 ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control)
Switching Bandwidth	20Gbps
Packet Forwarding Rate	14.88Mpps
Packet Buffer	1Mbit
MAC Address Table	2K
Transmission Method	Store and Forward
PoE Standard	IEEE802.3af (15.4W) IEEE802.3at (30W)
PoE Port Output Voltage	DC 44-57V
PoE Ports	Port 1 supports HiPoE 60W Ports 2-8 PoE power output <30W
PoE Power Budget	110W
Power Supply	AC 100-240V 50/60Hz DC 52V 2.3A
Mainboard Power Consumption	6.5W

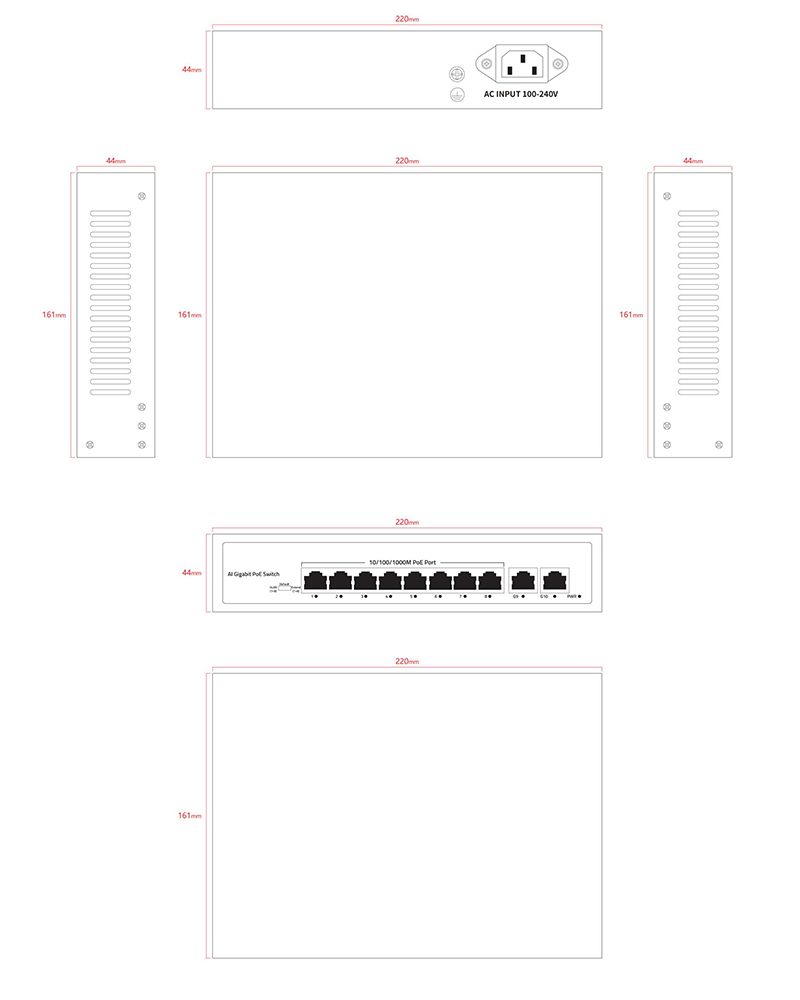

Structure Information	Product Dimensions: 22016144.5mm Packaging Dimensions: 31521585mm Product Net Weight: 0.88KG Product Gross Weight: 1.38KG
Packing Information	Carton Dimensions: 445445335mm Packing Quantity: 10PCS Packing Weight: 14.8KG
Package Contents	Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Fan Quantity	0
Installation	Desktop
Surge Protection	Port Surge: Common mode 4KV, Differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV(Class B)
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Green LED	On: Powered on Off: Powered off
Ports 1-10 Green LED	On: Link normal Off: Link blocked Flashing: Data transmitting
VLAN/Default/Extend Modes Buttons	VLAN: VLAN mode, ports 1-8 are isolated from each other, communicating with ports 9-10, and automatically activate the PoE watchdog mode Default: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive(PoE Watchdog off) Extend: Extend mode, when the PoE port is in Extend mode, ports 7-8 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode
