Shenzhen SunSoont Technology Co., Ltd
Product Highlights
Hardware Features
|
Description |
Specification |
|
Model |
SST- P8ET2S |
|
Interface |
8*1Gbps PoE ports
|
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) |
|
Switching Bandwidth |
20Gbps |
|
Packet Forwarding Rate |
14.88Mpps |
|
Packet Buffer |
1Mbit |
|
MAC Address Table |
2K |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Ports |
Port 1 supports HiPoE 60W Ports 2-8 PoE power output <30W |
|
PoE Power Budget |
110W |
|
Power Supply |
AC 100-240V 50/60Hz DC 52V 2.3A |
|
Mainboard Power Consumption |
6.5W |
|
Structure Information |

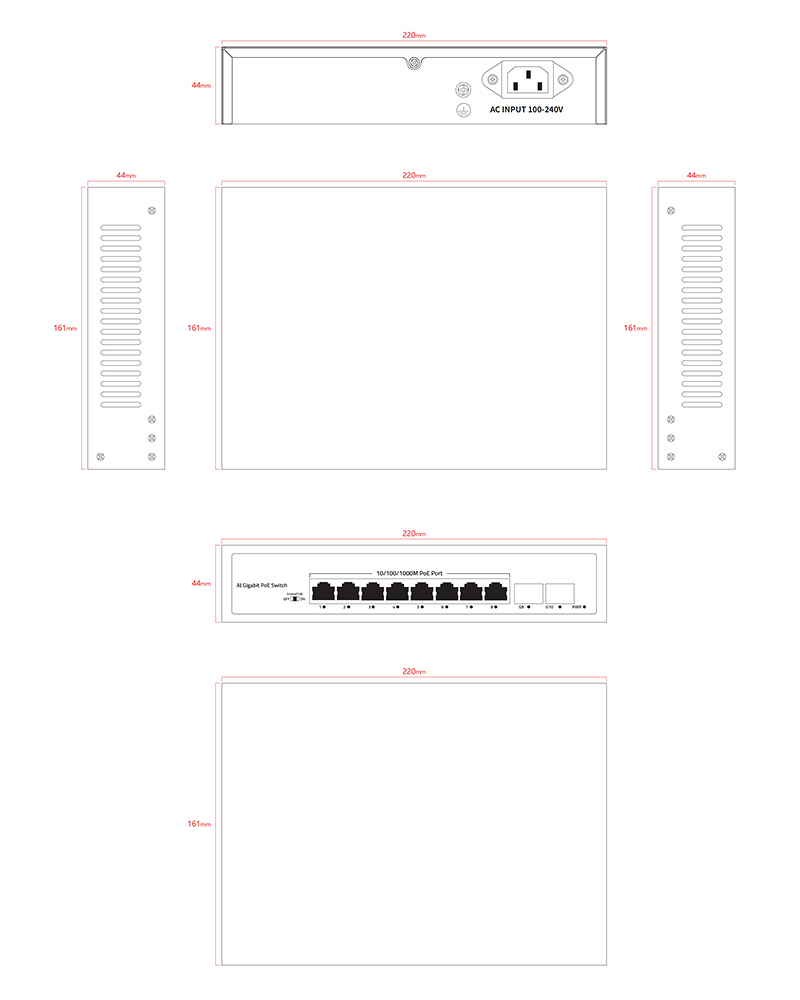

Product Dimensions: 220*161*44mm Packaging Dimensions: 315*215*85mm Product Net Weight: 0.88KG Product Gross Weight: 1.22KG |
|
Packing Information |
Carton Dimensions: 445*445*335mm Packing Quantity: 10PCS Packing Weight: 13.2KG |
|
Package Contents |
Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs |
|
Fan Quantity |
0 |
|
Installation |
Desktop |
|
Surge Protection |
Port Surge: Common mode 4KV, Differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV(Class B) |
|
Operating Temperature
|
0~40°C |
|
Storage Temperature
|
-40~70°C |
|
Operation Humidity
|
10%~90%, non condensing |
| Storage Humidity |
5%~95%, non condensing
|
|

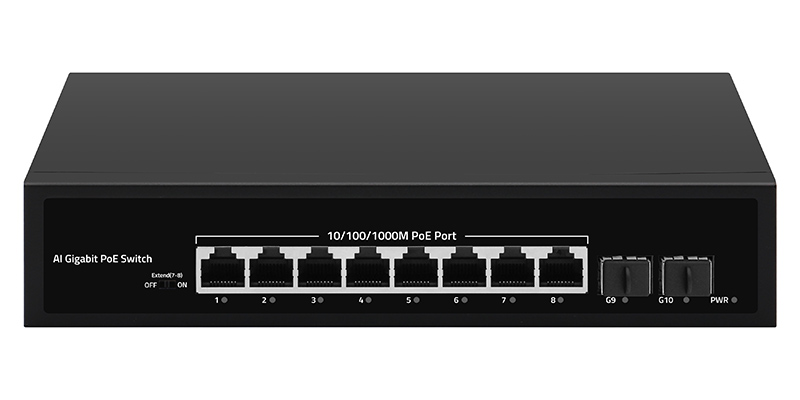

PWR Green LED
|
On: Powered on
Off: Powered off
|
|
Ports 1-10 Green LED
|
On: Link normal
Off: Link blocked
Flashing: Data transmitting
|
|
Extend Mode Button
|
OFF: Normal mode, all ports can communicate with each other, transmission
distance is within 100 meters, transmission rate is 10/100/1000Mbps adaptive(PoE
Watchdog off)
ON: Extend mode, when the PoE port is in Extend mode, ports 7-8 force 10Mbps to
extend the transmission distance to 250meters, and automatically activate the PoE
watchdog mode
|
