Shenzhen SunSoont Technology Co., Ltd

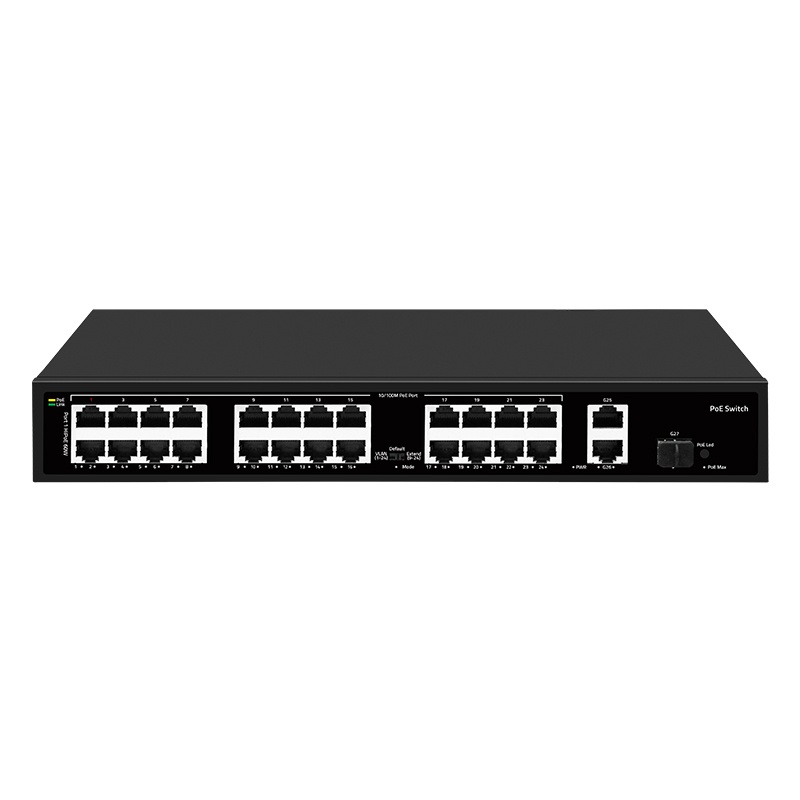

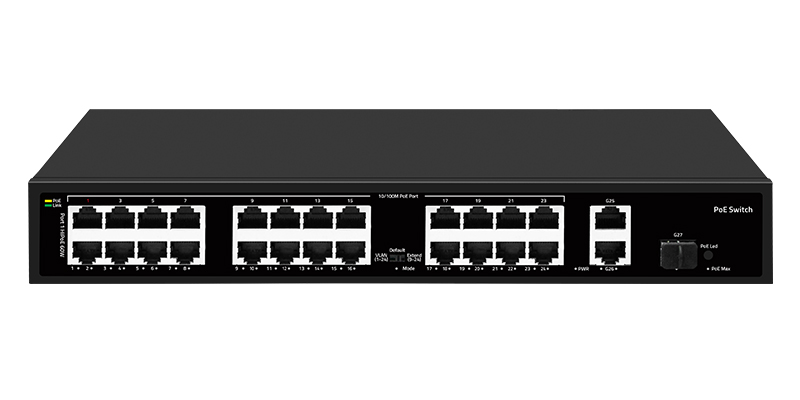

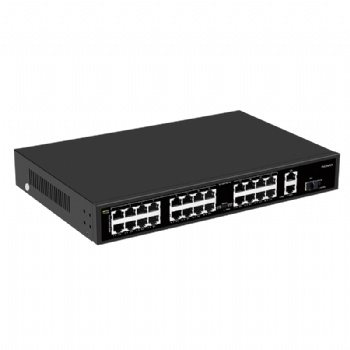

10/100/1000M intelligent PoE switch, with 24*10/100M PoE ports + 2*Gigabit uplink RJ45 ports + 1*Gigabit
uplink SFP port, IEEE 802.3af/at standard, bandwidth 10.8Gbps, total power 300W, surpport port isolation and
250m transmission, support PoE MAX/ PoE LED indicator, suitable for -10~50℃ wide temperature environment.
Hardware Features
|
Description |
Specification |
|
Model |
SST- P24EH2ET1S |
|
Interface |
24*100Mbps PoE ports 2*1Gbps RJ45 ports 1*1Gbps SFP port |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
|
Switching Bandwidth |
10.8Gbps |
|
Packet Forwarding Rate |
8.03Mpps |
|
Packet Buffer |
768Kbit |
|
MAC Address Table |
2K |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Ports |
Ports 2-24 PoE power output <30W Port 1 supports HiPoE 60W |
|
PoE Power Budget |
290W |
|
Power Supply |

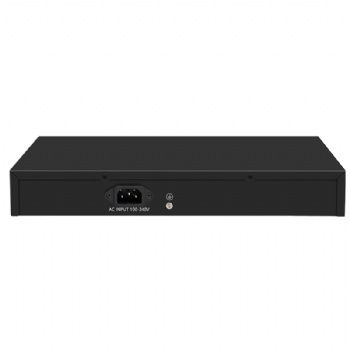

AC 100-240V 50/60Hz DC 52V 5.76A |
|
Mainboard Power Consumption |
6.6W |
|
Structure Information |

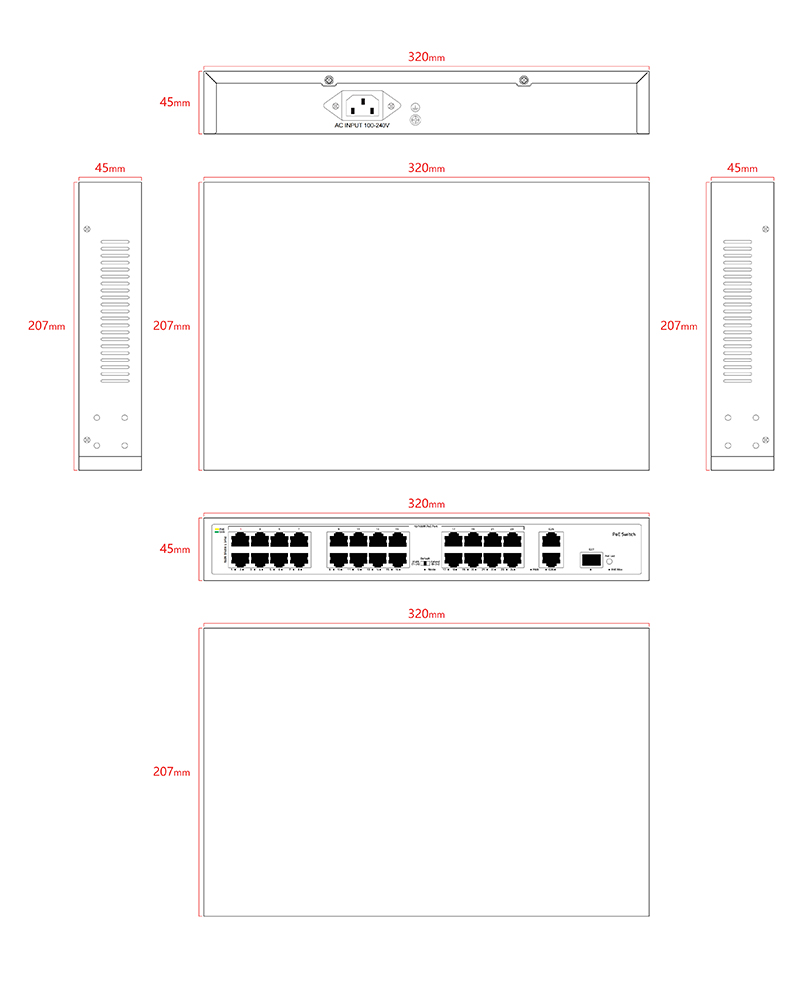

Product Dimensions: 320*207*45mm Packaging Dimensions: 370*290*85mm Product Net Weight: 1.79KG Product Gross Weight: 2.32KG |
|
Packing Information |
Carton Dimensions: 445*310*390mm Packing Quantity: 5PCS Packing Weight: 12.6KG |
|
Package Contents |
Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of |
|
Fan Quantity |
0 |
|
Installation |
Desktop, Rack-Mounting |
|
Surge Protection
|
Port Surge: Common mode 4KV, Differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV (Class B)
|
|
Operating Temperature
|
0~40°C
|
|
Storage Temperature
|
-40~70°C |
|
Operation Humidity
|
10%~90%, non condensing |
|
Storage Humidity
|
5%~95%, non condensing
|
|
PWR Green LED
|
On: Powered on
Off: Powered off
|
|
Mode Green LED
|
On: VLAN
Flashing: Extend
Off: Default
|
| Ports 1-24 Green LED |
On: 10/100Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
|
| Ports 25-27 Green LED |
On: 10/100/1000Mbps Link normal
Off: Link blocked
Flashing: Data transmitting
|
| PoE Yellow LED |
On: PoE powered on
Off: PoE powered off
|
|
PoE Max Green LED
|
Off: Indicate that the PoE power usage is less than 90%
Flashing(Once per second): Indicate that the PoE power usage of 90% ≤ P ≤ 95%
On: Indicate that the PoE power is used at 95%
|
|
PoE LED Buttons
|
Dual color LED selection: default green (link data), switch yellow LED (PoE)
|
|
VLAN/Default/Extend Modes Buttons
|
VLAN: VLAN mode, ports 1-24 are isolated from each other, communicating with
ports 25-27, and automatically activate the PoE watchdog mode
Normal: Normal mode, all ports can communicate with each other, transmission
distance is within 100 meters, transmission rate is 10/100Mbps adaptive(PoE
Watchdog off)
Extend: Extend mode, when the PoE port is in Extend mode, ports 9-24 force
10Mbps to extend the transmission distance to 250meters, and automatically
activate the PoE watchdog mode
|
