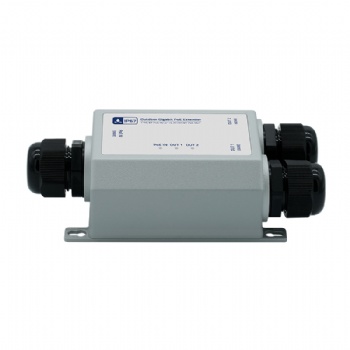

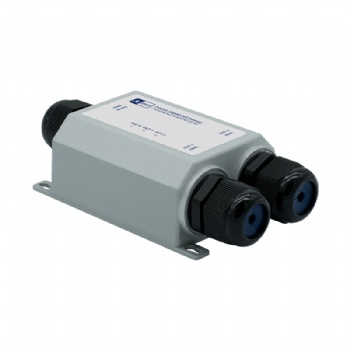

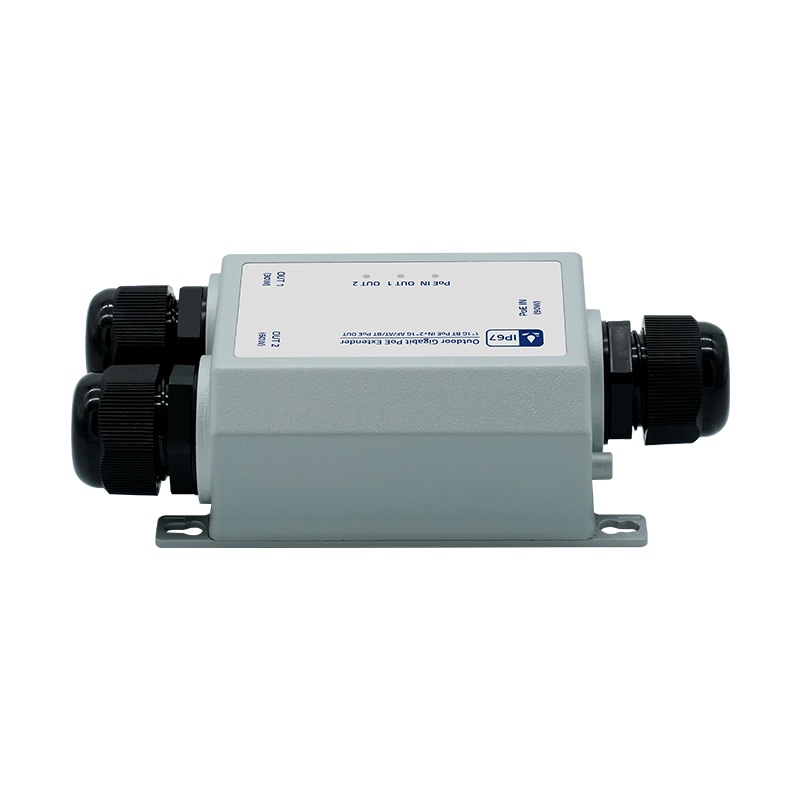

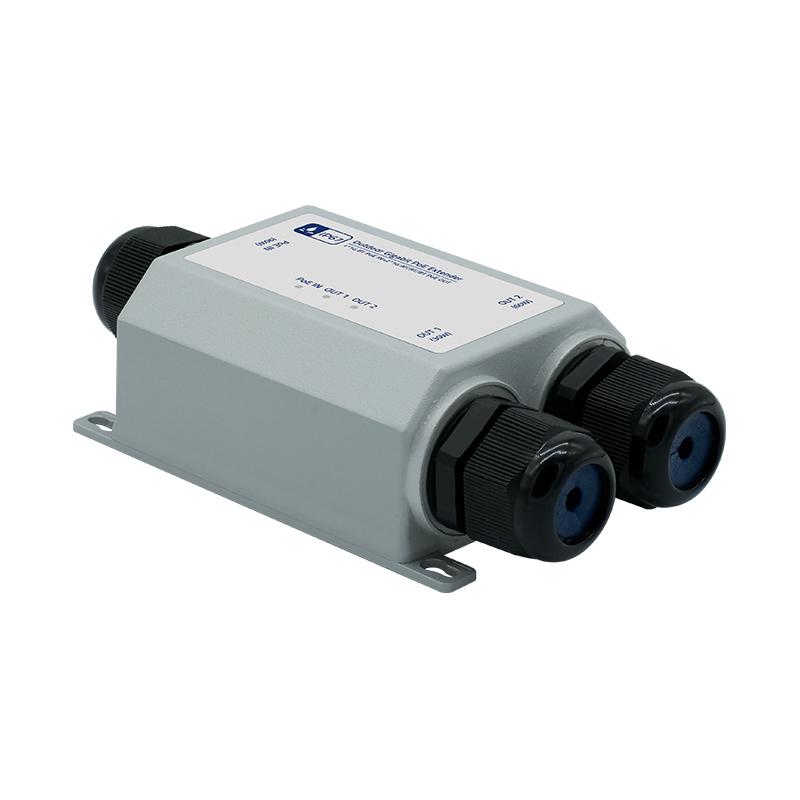

Outdoor Gigabit PoE Extender
Hardware Features
|
Description |
Specification |
|
Model |
SST-02GPN |
|
Interface |
1*1Gbps PoE in port 2*1Gbps PoE out ports |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3x (Flow Control) |
|
Switching Bandwidth |
6Gbps |
|
Packet Forwarding Rate |
4.46Mpps |
|
MAC Address Table |
2K |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) IEEE802.3at (30W) HiPoE (60W) |
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Ports |
Port 1 supports PoE out <30W Port 2 supports HiPoE 60W |
|
PoE IN |
IEEE802.3af/at/bt90W |
|
Power Supply |
PoE powered |
|
Mainboard Power Consumption |
2.32W |
|
Structure Information |

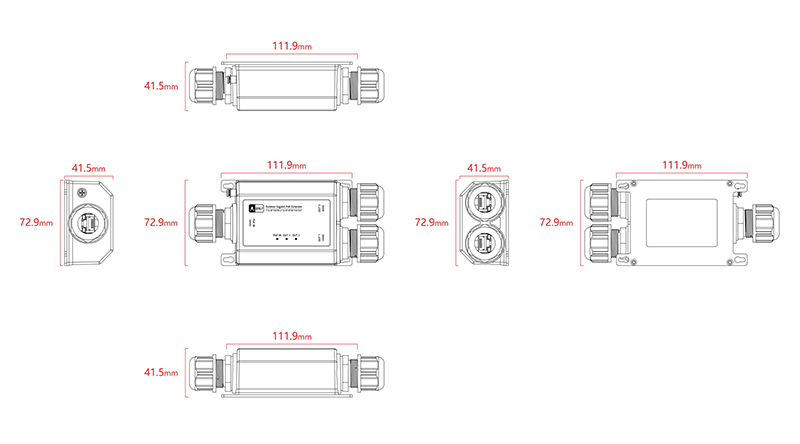

Product Dimensions: 111.9*72.9*41.5mm Packaging Dimensions: 210*160*67mm Product Net Weight: 0.2KG Product Gross Weight: 0.36KG |
|
Packing Information |
Carton Dimensions: 447*360*340mm Packing Quantity: 20PCS Packing Weight: 8.2KG |
|
Package Contents |
PoE Extender 1pcs, Waterproof joint 3pcs, Waterproof cover 1pcs, thin open-end wrench 1pcs, Grounding wire 1pcs, Expansion screw 1pcs |
|
Fan Quantity |
0 |
|
Installation |
Desktop |
|
Surge Protection
|
Port Surge: Common mode 6KV, Differential mode 4KV(Class B)
Electrostatic ESD: Air 8KV, Contact 6KV(Class B)
|
|
Operating Temperature
|
-40~75°C
|
|
Storage Temperature
|
Storage Temperature |
|
Operation Humidity
|
10%~90%, non condensing
|
|
Storage Humidity
|
5%~95%, non condensing |
|
PoE in Green LED
|
On: Link normal
Off: Link blocked
Flashing: Data transmitting
|
|
PoE out Green LED
|
On: Link normal
Off: Link blocked
Flashing: Data transmitting
|
