Description

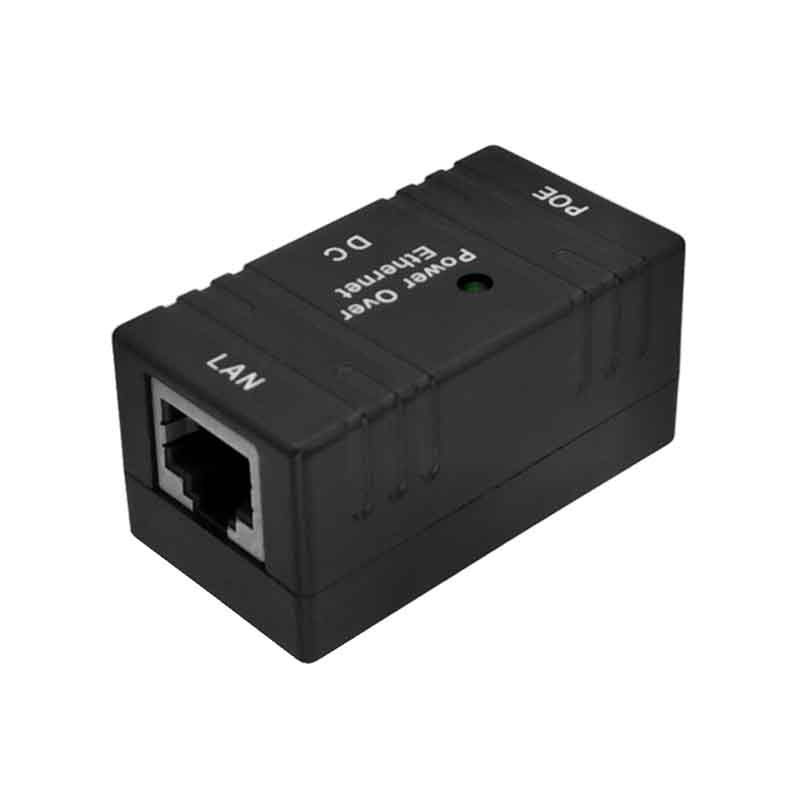

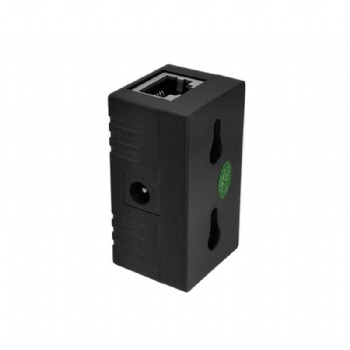

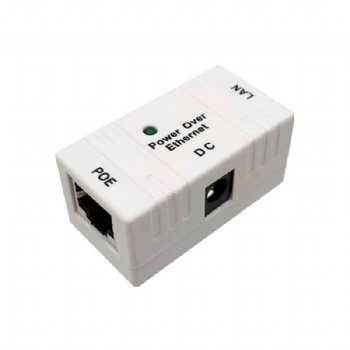

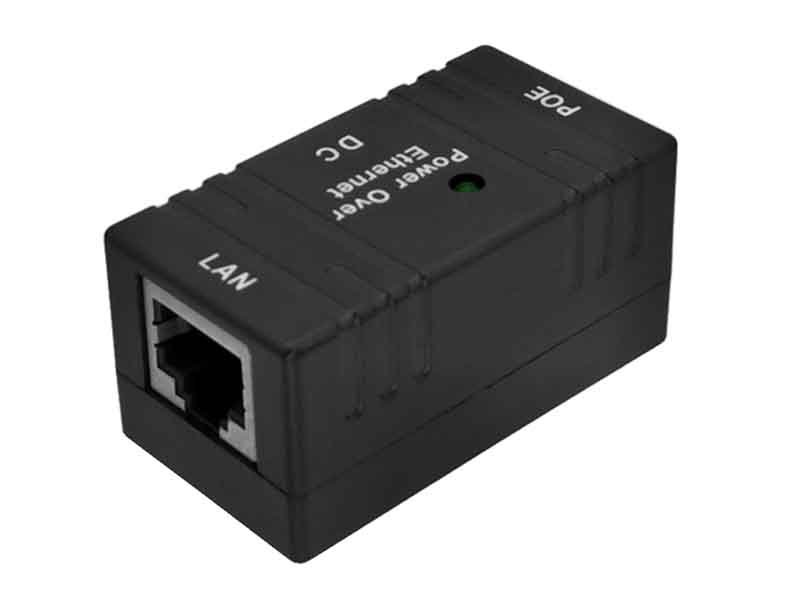

Mini Style Passive POE Injector with LED Indicator

PoE and Lan port 2 x RJ45 connector easy using

Simple POE power supply, POE power supply module, combiners, splitters,Injector

Support 100M transmission network

Power Mode: supply power when power on. Output voltage equal to input voltage.

Clarify:All buyers,please note this injector,splitter does not works with Standard PoE device which is IEEE 802.3af or IEEE802.3at.
Only works with the PoE device not IEEE 802.3af or IEEE802.3at.

Features

1. DC plug:5.5mm * 2.1mm, power:5V-48V, Maximum current 2000ma;   POE = Power (45+ 78--) + data  (12,36)
LAN = Data (12,36)
2. Shielded RJ45 connectors
3. You can use the self-tapping screws or glue in the wall
4. Optional models with LED lights to display
5. Current limiting function: We added in each PoE a current limiting function, and the function of absorbing the surge
voltage grid areas to provide a reliable guarantee for power quality.
6. Compatibility: Compatible with Intel PRO 2011, CISCO 350/1200, AGERE AP-2000, Colubris CN3000/300 and other mainstream AP devices.
7. All products are original, high-bandwidth transmission, 100% factory inspection, the product uses a large-capacity capacitor and
a variety of high quality components and multiple steady flow circuit to ensure the stability and high-voltage module work and can be
depending on the specifications of the AP to provide ± 5V, ± 12V, ± 24V, ± voltage of 48V.

Parameters
