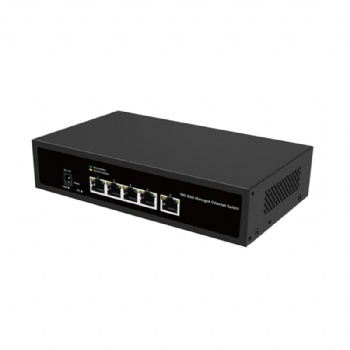

SST-WTG5ETG is a high-performance, web-managed Ethernet switch that offers advanced network management
features and unparalleled connectivity. With its compact design and robust functionality, this switch is perfect for
small to medium-sized businesses, data centers, and enterprise networks.
1, 5* 10G RJ45 ports
2, Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, and IEEE 802.3x standards
3, RJ45 port Supports 100M/1G/2.5G/5G/10G adaptive
4, Supports automatic port flipping (Auto MDI/MDIX)
5, The panel indicator LEDs will monitor the working status and assist in fault analysis
6, Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
7, Support QoS data priority
Hardware Features
|
Description |
Specification |
|
Model |
SST-WTG5ETG |
|
Interface |
5* 10G RJ45 ports |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) |
|
Bandwidth |
100Gbps |
|
Packet Forwarding Rate |
74.4Mpps |
|
Packet Buffer |
12Mbit |
|
MAC Address Table |
16K |
|
Jumbo Frame |
Support |
|
VLAN |
VLAN range 1-4094, maximum active VLAN is 4K |
|
Transmission Method |
Store and Forward |
|
Power Supply |
AC 100-240V 50/60Hz DC 12V 2A |
|
Mainboard Power Consumption |
20.89W |
|
Structure Information |

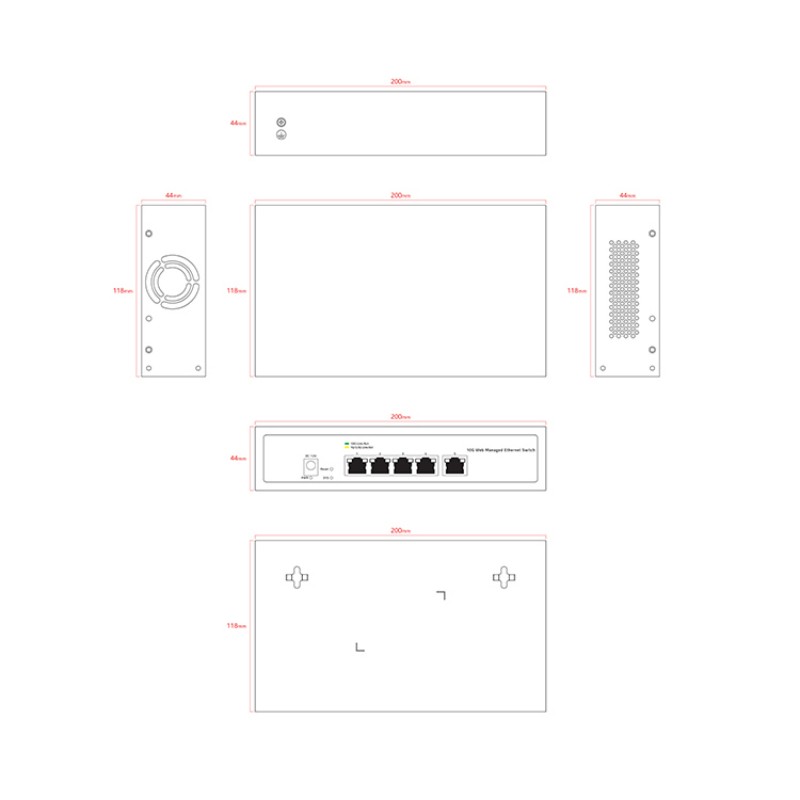

Product Dimensions :200*118*44mm Packaging Dimensions : 245*190*60mm Product Net Weight:0.67kg Product Gross Weight:0.9kg |
| Package Information |
Carton Dimensions :520*320*400mm
Packing Quantity: 20PCS
Packing Weight: 18.9kg
|
|
Package Contents
|
Switch 1pcs,ac adapter 1pcs,manual 1pcs,certificate of qualification
1pcs
|
|
Fan Quantity
|
1 |
|
Installation
|
Desktop
|
|
Surge Protection
|
Port Surge : Common mode 4KV, differential mode 2KV;
Electrostatic ESD: Air 8KV, Contact 6KV
|
|
Operating Temperature
|
0~40°C
|
| Storage Temperature |
-40 °C to 70 °C
|
|
Operation Humidity
|
10%~90%，non condensing
|
|
Storage Humidity
|
5%~95%，non condensing
|
|

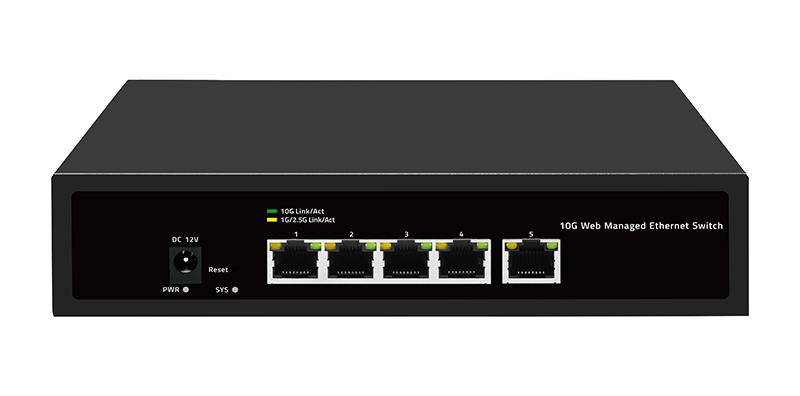

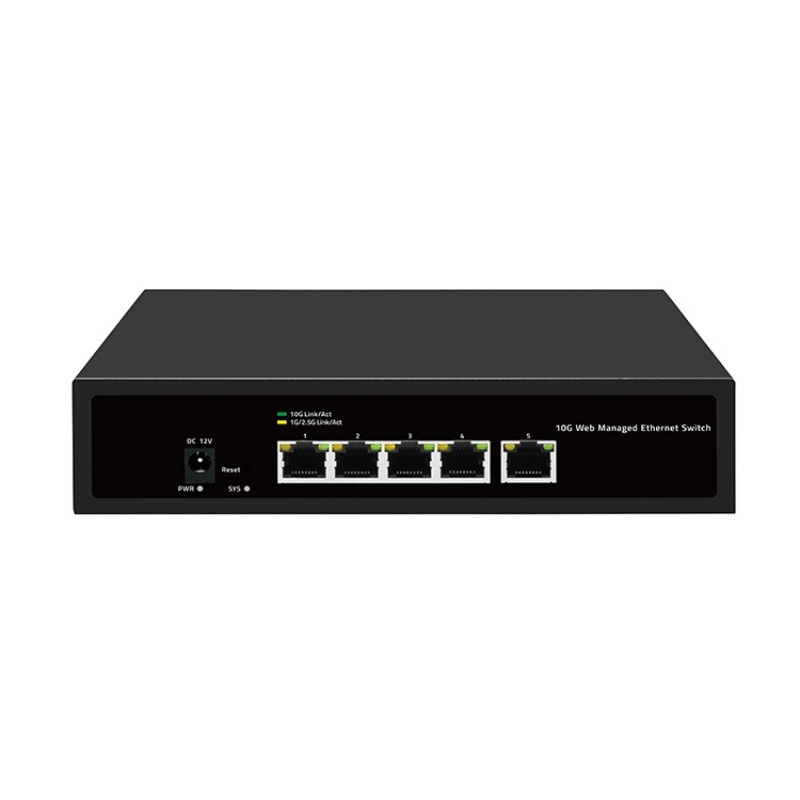

PWR
|
On: Powered on
Off: Powered off
|
|
SYS
|
On: The system is normal
Flashing: System startup in progress
|
|
1-5
|
Green Led On: 10G Link normal
Yellow Led On: 100/1000Mbps/2.5Gbps Link normal
Off: Link blocked
Flashing: Data transmitting
|
|
RESET
|
Long press for 6 seconds to restore factory settings
|
|
|
|
|
|
|
|
|
|
|
L2 Function |
|
|
Port |
Port Switch configuration |
|
Port Description configuration |
|
|
Port Speed configuration |
|
|
Port Duplex configuration |
|
|
Port Flow Control configuration |
|
|
Jumbo Frame |
|
|
EEE |
|
|
Link Aggregation |
Supports load balance policy; Base on MAC and IP-MAC |
|
Static and Dynamic Group |
|
|
LACP |
|
|
Up to 8 groups |
|
|
Storm Control |
Boardcast suppression |
|
Unknown Multicast |
|
|
Unknown Unicast |
|
|
Port Mirroring |
One to one monitor |
|
Many to one monitor |
|
|
Ingress/Egress/Both |
|
|
Up to 4 session groups |
|
|
Port Security |
MAC Address Constraints |
|
Protect/Restrict/Shutdown |
|
|
Port Isolation |
Support |
|
Port Rate-limit |
Support |
|
VLAN |
Access/Trunk/Hybrid |
|
VLAN Tunnel （Q-in-Q Tunnel） |
|
|
VLAN range 1-4094, maximum active VLAN is 4K |
|
|
MAC Address |
Filtering MAC Address |
|
Static MAC address |
|
|
Spanning Tree Protocol |
STP/RSTP |
|
BPDU Filter |
|
|
BPDU Guard |
|
|
Edge Port |
|
|
Multicast |
IGMP Snooping |
|
Router Port |
|
|
Static IGMP Join |
|
|
IGMP V1/V2 |
|
|
QoS |
Traffic classification, Supporting SP and WRR scheduling |
|
Port Priority |
|
|
802.1P Priority |
|
|
IP DSCP Priority |
|
|
Priority Remarking |
|
|
Supports up to 8 queues per port |
|
|
ERPS |
Main Ring |
|
Services |
|
|
Access Protocol |
HTTP |
|
Session Timeout |
|
|
Security |
DHCP Snooping |
|
Diagnostics |
|
|
Copper Test |
Support |
|
Ping |
Support |
|
Equipment Management |
|
|
Manager Acces |
HTTP |
|
SNMP |
|
|
Manager IP |
Static Address |
|
Manager VLAN |
|
|
DNS |
|
|
DHCP Client |
|
|
SNMP |
V2C |
|
Community |
|
|
Trap Host |
|
|
SNMP MIB |
RFC 1213 MIB-II |
|
RFC 1643 Ethernet MIB |
|
|
RFC 2863 Interface MIB |
|
|
User Management |
Support |
|
Firmware Management |
Firmware upgrade |
|
Configuration Management |
Upload/Backup Configuration |
|
Save |
Support |
|
Restart |
Support |
|
Factory Defaults |
Support |
|
Standard Compliance |
|
|
IEEE 802.3x flow control and back pressure |
|
|
IEEE 802.3ad port trunk with LACP |
|
|
IEEE 802.1D Spanning Tree Protocol |
|
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
IEEE 802.1p Class of Service |
|
|
IEEE 802.1Q VLAN tagging |
|
|
RFC 768 UDP |
|
|
RFC 793 TFTP |
|
|
RFC 791 IP |
|
|
RFC 792 ICMP |
|
|
RFC 2068 HTTP |
|
|
RFC 1112 IGMP v1 |
|
|
RFC 2236 IGMP v2 |
|
|
RFC 3376 IGMP v3 |
|
