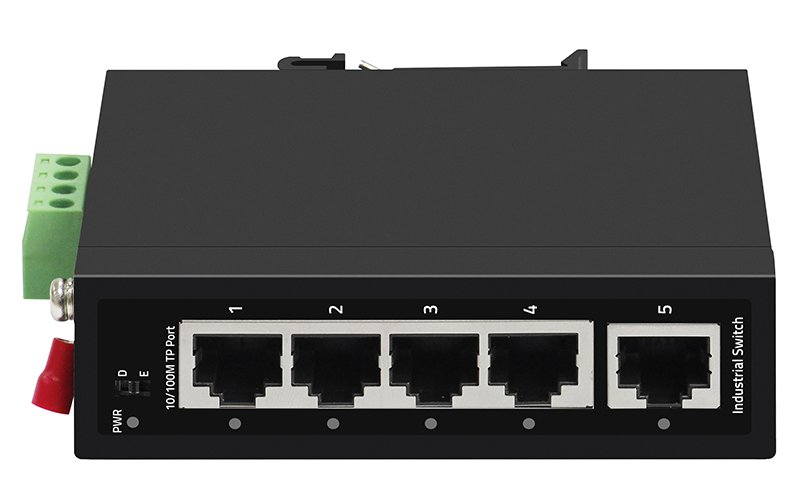

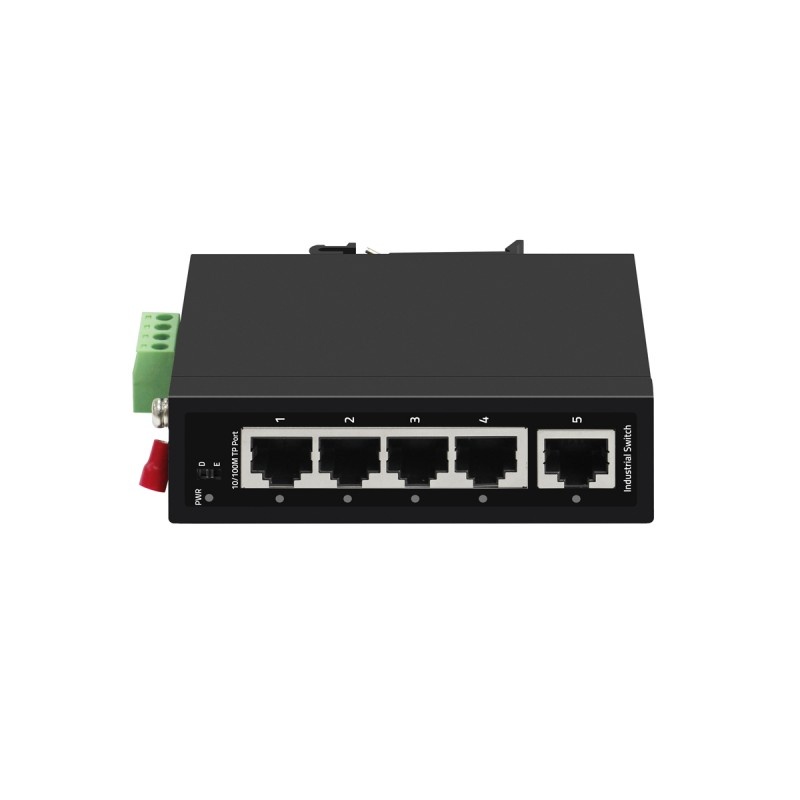

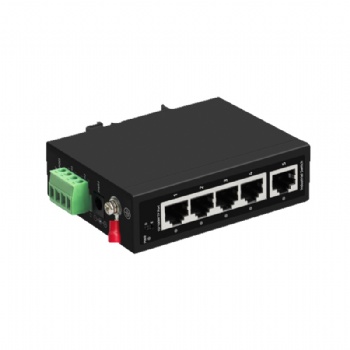

A robust and reliable 5-port industrial Ethernet switch designed to meet the demanding requirements of industrial environments.
Engineered for superior performance and durability, this switch ensures seamless connectivity and data transmission at speeds
of up to 100Mbps. With its high-strength cast iron casing and engineered features, the SST-5TX is the ideal choice for businesses
looking to optimize their networking capabilities in harsh operating conditions.
Product Highlights
1, 4*100Mbps ports+1*100Mbps uplink RJ45 portHardware Features
|
Model |
SST-5TX |
|
Interface |
5*100Mbps RJ45 ports |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) |
|
Switching Bandwidth |
1Gbps |
|
Packet Forwarding Rate |
0.744Mpps |
|
Packet Buffer |
448Kbit |
|
MAC Address Table |
1K |
|
Transmission Method |
Store and Forward |
|
Power Supply |
DC12~55V Power wiring: 4 PIN industrial terminals (redundant V1+V1-, V2+V2-) |
|
Mainboard Power Consumption |
1.45W |
|
Structure Information |

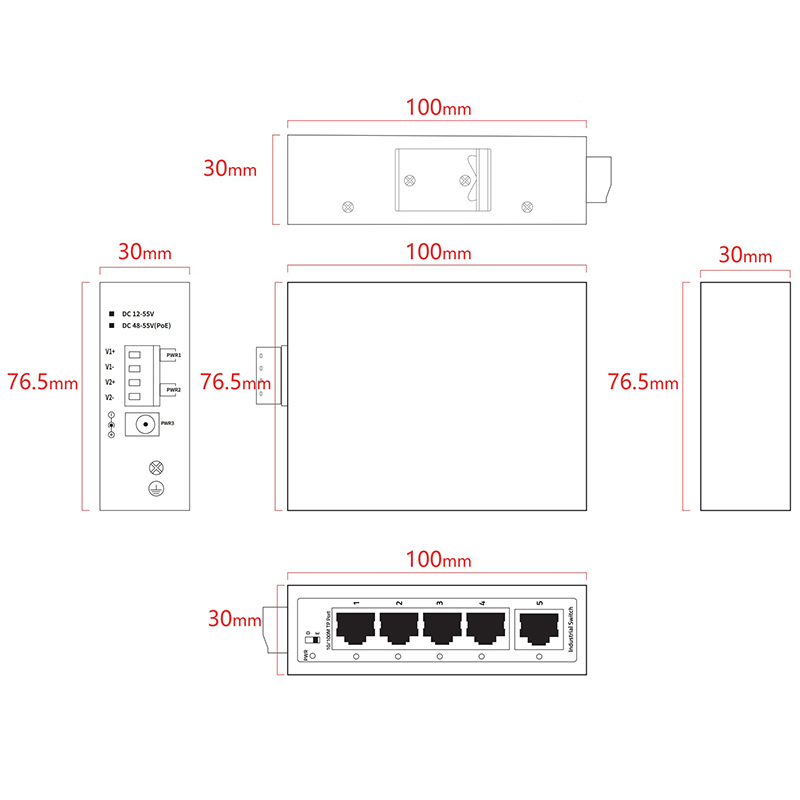

Product Dimensions: 100*76.5*30mm Packaging Dimensions: 175*130*55mm Product Net Weight: 0.27KG Product Gross Weight: 0.36KG |
|
Packing Information |
Carton Dimensions: 540*290*375mm Packing Quantity: 40PCS Packing Weight: 15.4KG |
|
Package Contents |
Switch 1pcs, Manual 1pcs, Certificate of Inspection 1pcs |
|
Certification |
CE, FCC, RoHS |
|
Fan Quantity
|
0 |
|
Installation
|

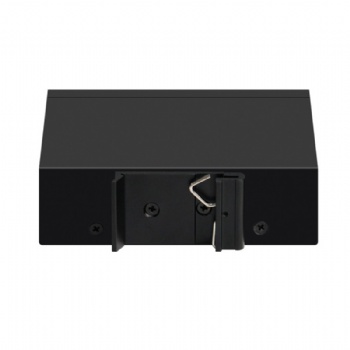

Desktop, Wall mounting installation, Rail installation |
|
Surge Protection
|
Port Surge Protection: Common mode 4KV, differential mode 2KV
Electrostatic ESD: Air 8KV, Contact 6KV (Class B)
|
|
Operating Temperature
|
-40~75°C |
|
Storage Temperature
|
-40~85°C
|
|
Operation Humidity
|
10%~90%, non condensing |
|
Storage Humidity
|
5%~95%, non condensing |
|
PWR Green LED
|
On: Powered on
Off: Powered off
|
|
Ports 1-5 Green LED
|
On: 10/100Mbps Link normal
Off: Link blocked
Fast Flashing: Data transmitting
|
|
Default/Extend Modes Buttons
|
Default: Normal mode, all ports can communicate with each other, transmission
distance is within 100 meters, transmission rate is 10/100Mbps adaptive
Extend: Extend mode, ports 1-4 force 10Mbps to extend the transmission distance to
250meters
|
