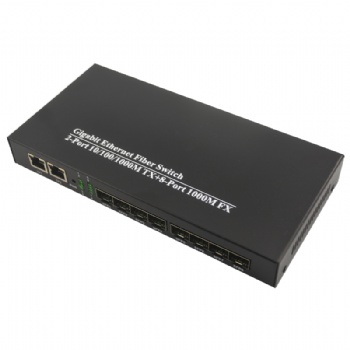

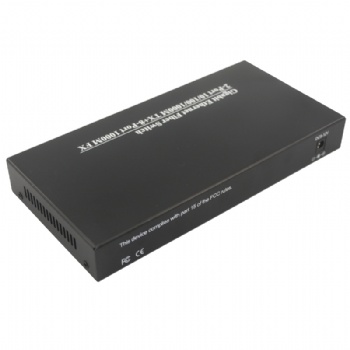

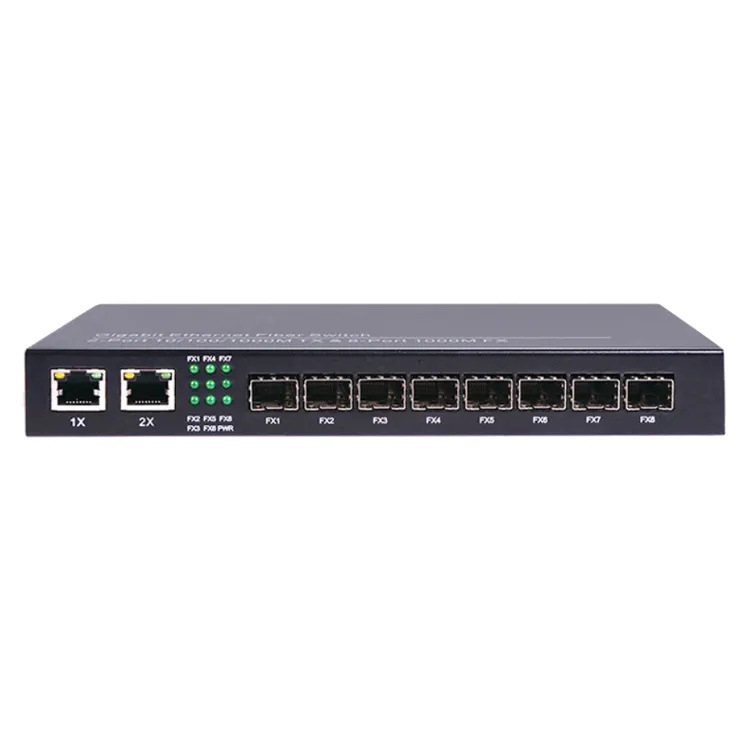

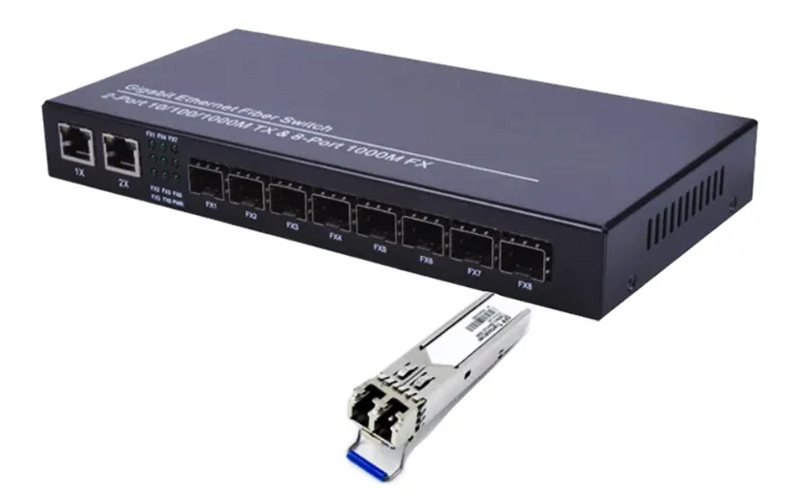

SunSoont SST-8F2ET-SFP SFP Gigabit fiber optic switch with 8 SFP slot and 2 RJ45 uplink ports , IEEE802.3z, AB 1000Mbps10 port Gigabit Ethernet Switches supports two types media for network connection and switching such as
10/100/1000BaseT and 1000Base SXLX. The switch is designed with a switch controller and buffer memory that connects two types
segments to operate smoothly. The Switch with 8 SFP port 1000Base-T/SX/LX and 2 RJ45 port 10/100/1000Base T(selectable). The RJ45 port support Half or Full Duplex modes. All SFP ports support only 1000Mbps and Full-Duplex modes. With external power unit, it provides good stability and reliability.
Technical Features
1. Standards: IEEE 802.3z/AB 10/1001000Base-T 1000Base-SX/LX/ZX
2. Fiber Cable:
1000SX: 50/125,62.5/125µm multi-mode
1000LX/ZX: 8.7/125, 9/125µm single-mode.
3. UTP Cable: Cat.5e or Cat.6 cable up to 100m.
4. Data Transfer Rate:
RJ45 port: 10M, 100M, 1000Mbps
SFP: 1000Mbps.
5.LED Indicators : P1,P2,P3,P4,P5,P6,P7,P8, SPD, Act, PWR.
6. Duplex Modes: RJ45 port: Way Full/Half Duplex auto- negotiation
SFP: full-duplex mode
7.Power Requirement: 220V(100-260V)AC,50Hz DC5V/2A
8. Operating Temperature: -15~+65°C
9.Humidity: 5% ~ 90%
10. Lightning Protection level:3KV 8/20us; IP30
Specifications
|
Model |
SST-8F2ET-SFP |
|
Product |
Full Gigabit 10 port fiber Switch |
|
Fixed Port |
2*10/100/1000Base--TX RJ45 port (Data) 8*1000M Integrated SFP(optional 1310/1550) |
|
Network Protocol |
IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X |
|
Port Specification |
100/1000BaseT(X) Auto |
|
Transmission Mode |
Store and Forward(full wirespeed) |
|
Bandwidth |
20Gbps |
|
Packet Forwarding |
12.96Mpps |
|
MAC Address |
2K |
|
Buffer |
2.5M |
|
Transmission Distance |
10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-100KM SFP |
|
Watt |
≤15W; |
|
LED Indicator |
PWR:Power LED 1-8:(SFP LED)\ TP1/TP2: Port LED Port :(Green=10/100M LED+Orange=1000M LED) |
|
Power |
External power DC 5V 3A |
|
Operating Temperature/Humidity |
-15~+65°C;5%~90% RH Non coagulation |
|
Storage Temperature/Humidity |
-40~+75°C;5%~95% RH Non coagulation |
|
Product size/Packing size(L*W*H) |
215mm*134mm*30mm 295mm*255mm*55mm |
|
N.W/G.W(kg) |
0.86kg/1kg |
|
Installation |
Desktop (optional wall hanger+machine hanger parts) |
|
Lightning Protection level |
3KV 8/20us; IP30 |
|
Certificate |
CE mark, commercial;CE/LVD EN60950; |
|
Warranty |
Whole device for 3 year |
