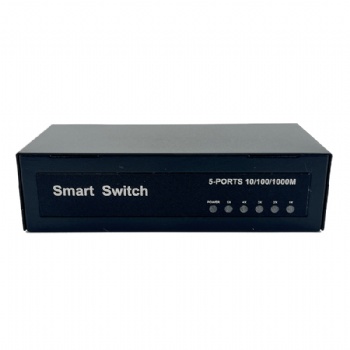

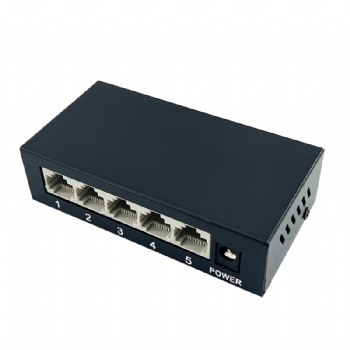

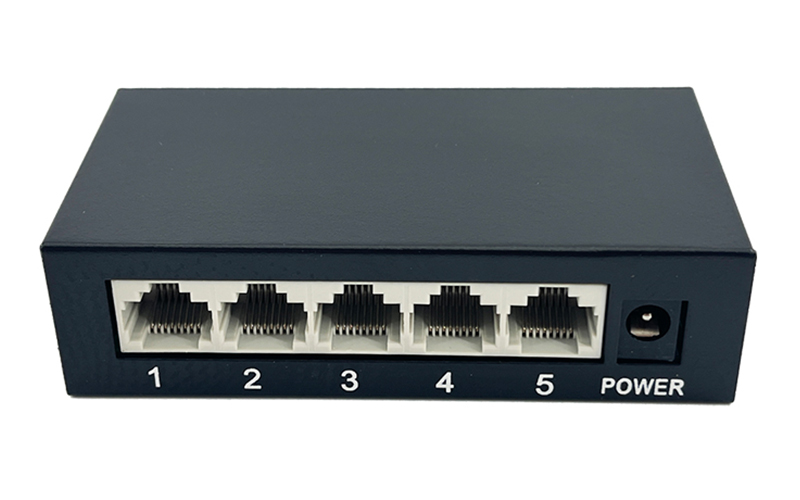

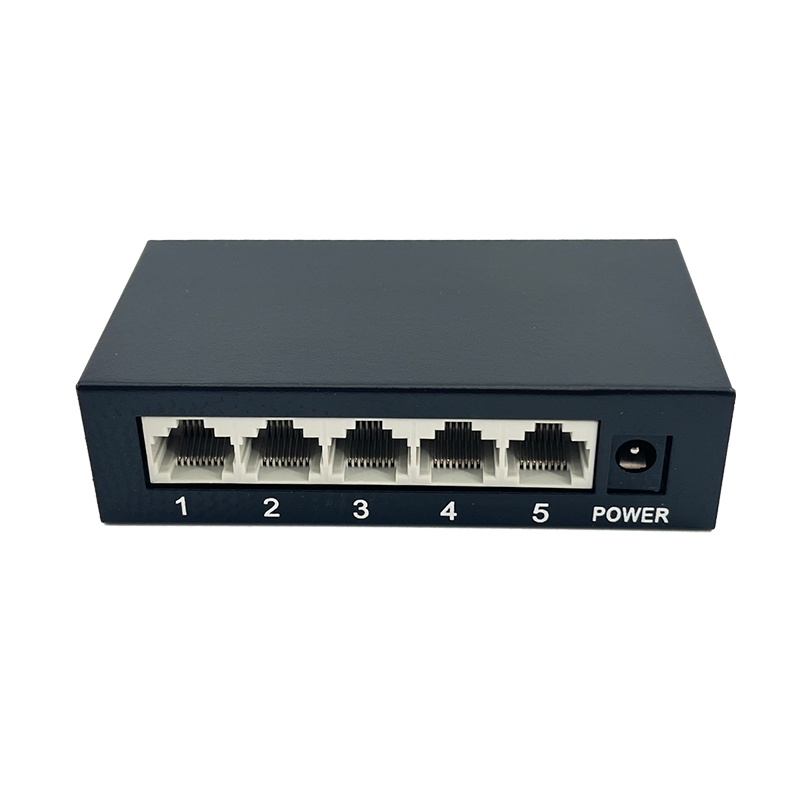

5-port Gigabit intelligent Ethernet switch

The SST-5ETM 5-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product

completely solves the problem of noise of small switches in the office environment through the fanless mute design. This

switch has 5 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, the product can be widely

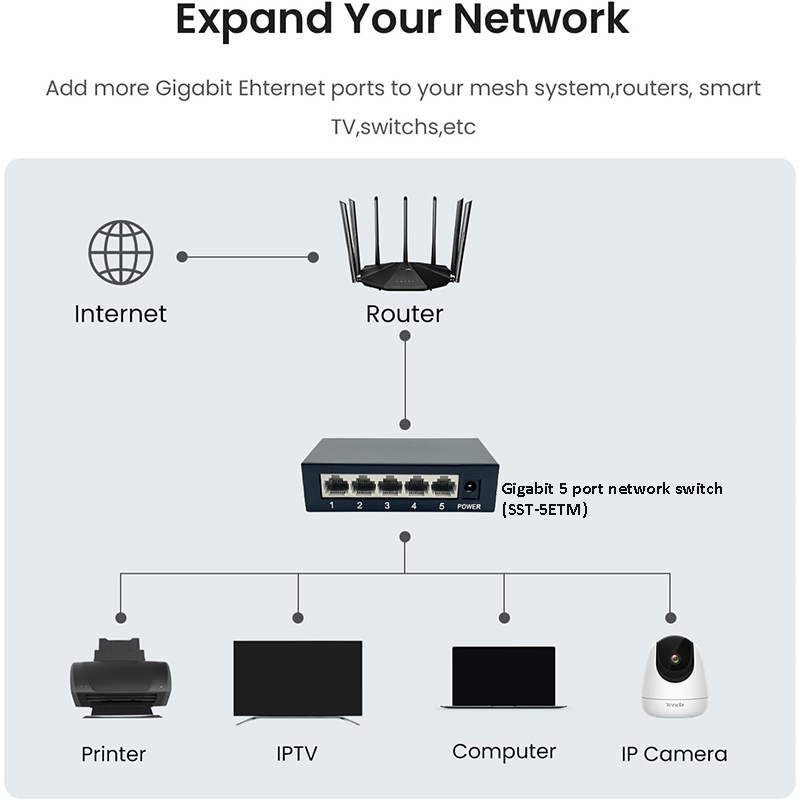

used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and

other occasions.

1, 5*10/100/1000Mbps RJ45 Ports

2, Metal material for housing

3, Apply to IEEE802.3、IEEE802.3u、IEEE802.3ab standard

4, Ethernet ports support 10/100/1000M adaptive

5, Support Auto MDI/MDIX

6, Panel indicators to monitor working status and help fault analysis

7, Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

I/O Interface
Power	DC12V 0.5A
Ethernet	5*10/100/1000Mbps RJ45 Ports
Performance
Switching Capacity	10Gbps
Throughput	7.44Mpps
Package cache	3Mbit
MAC Address	2K
Jumbo Frame	15Kbytes
Transfer Mode	Store and forward
Network Parameters
Network Protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control)
Network Medium	10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or aboveUTP(≤100m)
Certification
Safety certificate	CE、FCC、RoHS
Environmental Standards
Working Environment	Working Temperature：-10~50°C Storage Temperature：-20~70°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~95%，non-condensing
Indication
LED Indicators	PWR（Power indicator）、Link（Network Link）
PWR	On: power on Off: no power
Link	On: 10/100/1000M link connection is normal Blinking: Data transmission is normal Off: link failure
Mechanical
Structure Size	Product Size：1005123mm Packing Size：1077381mm Product Weight：0.11Kg Packing Weight：0.18Kg
Packing Info	Outer box size: 600340390mm Packing quantity: 100 PCS Packing weight: 24KG
Operating Voltage	Power interface: DC2.1 Switch input voltage: DC 12V 0.5A
Total power	Maximum 6W
Packing list	1. Switch：1 PCS 2. User manual ：1PCS 3. Warranty ：1 PCS 4. Power Adapter：1 PCS
