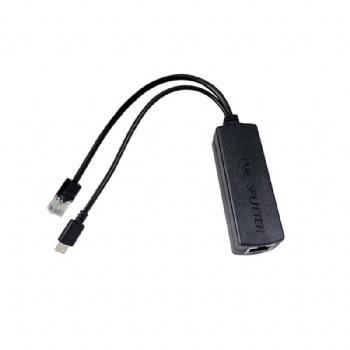

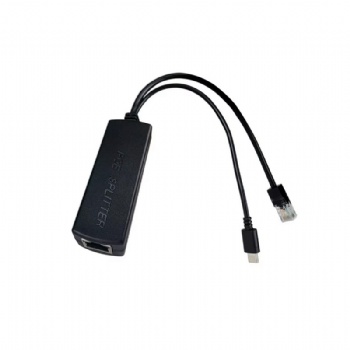

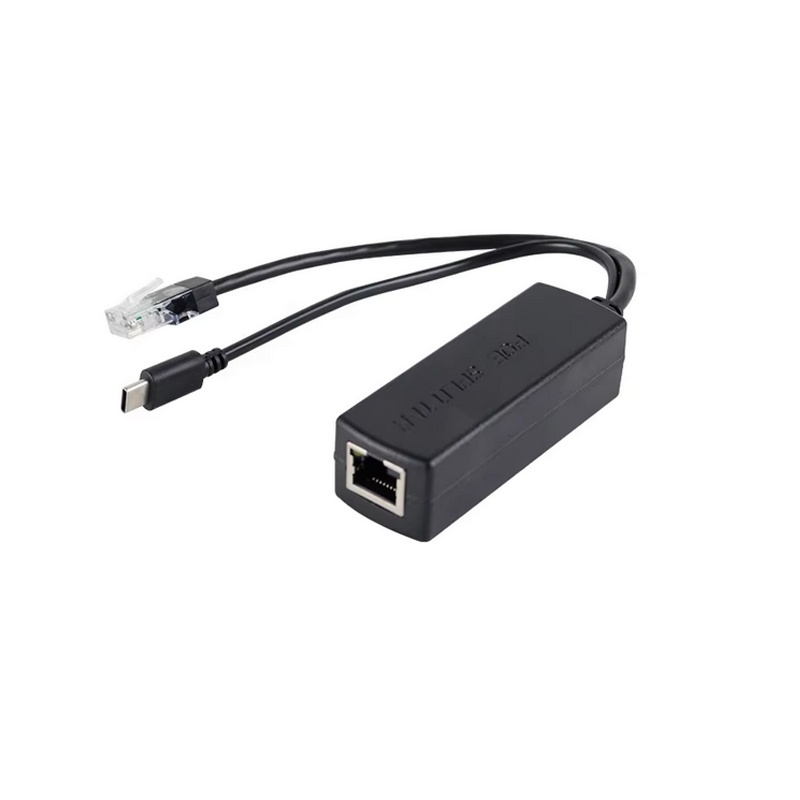

The DC48V to DC5V POE splitter is a high-performance POE product that complies with IEEE802.3af/at standards, has a size of 82*28*23mm,
and a line length of 195mm. It has photoelectric isolation. The output power meets the power consumption requirements of more than 90%
of the market's cameras. PoE splitter, output voltage of 5V use with the power supply equipment, It helps to expand wireless city, Security
monitoring and other poe practical place, and is not restricted by layout of power line.
【Main Features】
1.POE input voltage DC44~57V
2.POE protocol: IEEE802.3af/at
3.Transmission rate: 10/100Mbps
4.DC Jack output DC5V 2A
5. Isolation voltage: 1500V
6.POE transmission: (1, 2) +/(3, 6) - and (4, 5) +/(7, 8) - adaptive
7. Crystal head output: data (1, 2) +/(3, 6) -.
8. Power output: Micro USB、Type-C、5.5*2.1、3.5*1.35
【Specifications】
|
Model Number |
SST-LPS0525V |
|
|
PoE Power Supply |
Protocol |
IEEE802.3af/at |
|
Power Supply |
Compatible Mode A (End-Span) and Mode B (Mid-Span) |
|
|
1/2(+),3/6(-);4/5(+),7/8(-) |
||
|
Power Consumption |
15.4W/24W |
|
|
Input Voltage |
PoE 44V-57V |
|
|
Output Voltage |
DC 5V 2A |
|
|
Ethernet Port |
Ethernet Port |
1×RJ45 Input |
|
Transmission Speed |
10/100Mbps |
|
|
Transmission Medium |
Cat5/5e/6 Standard Network Cable |
|
|
Transmission Distance |
150m (cat5e) |
|
|
LED Indicator |
Input PoE Power Indicator |
1 (POE IN Port RJ45 Yellow Light) |
|
Protection |
ESD |
1a Contact discharge Level 3 |
|
1b Air discharge Level |
||
|
Per: IEC61000-4-2 |
||
|
Environmental |
Working Temperature |
0℃~45℃ |
|
Storage Temperature |
-40℃~70℃ |
|
|
Humidity (non-condensing) |
0~95% |
|
|
Mechanical |
Dimension (L×W×H) |
82x28x23mm |
|
Material |
Plastic |
|
|
Color |
Black |
|
|
Weight |
65g |
|
|
Stability |
MTBF |
>30000h |

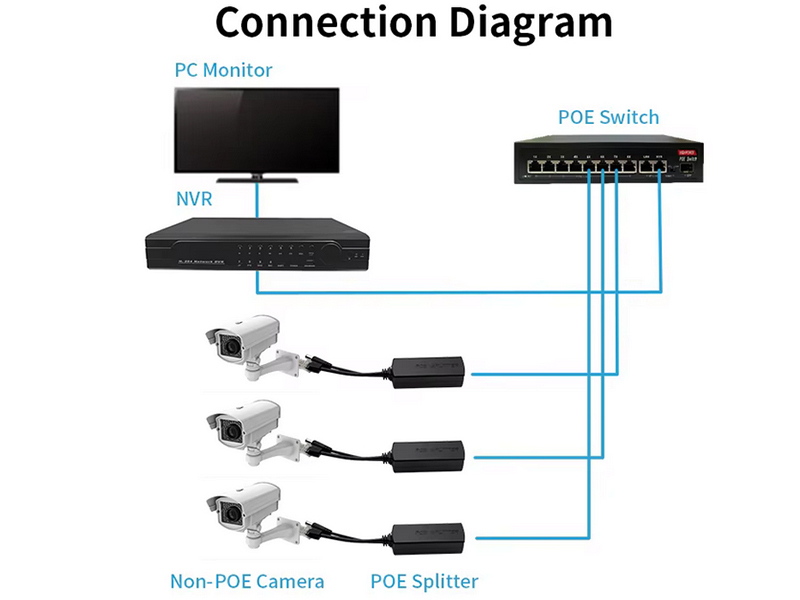

【Product Application】
