Shenzhen SunSoont Technology Co., Ltd

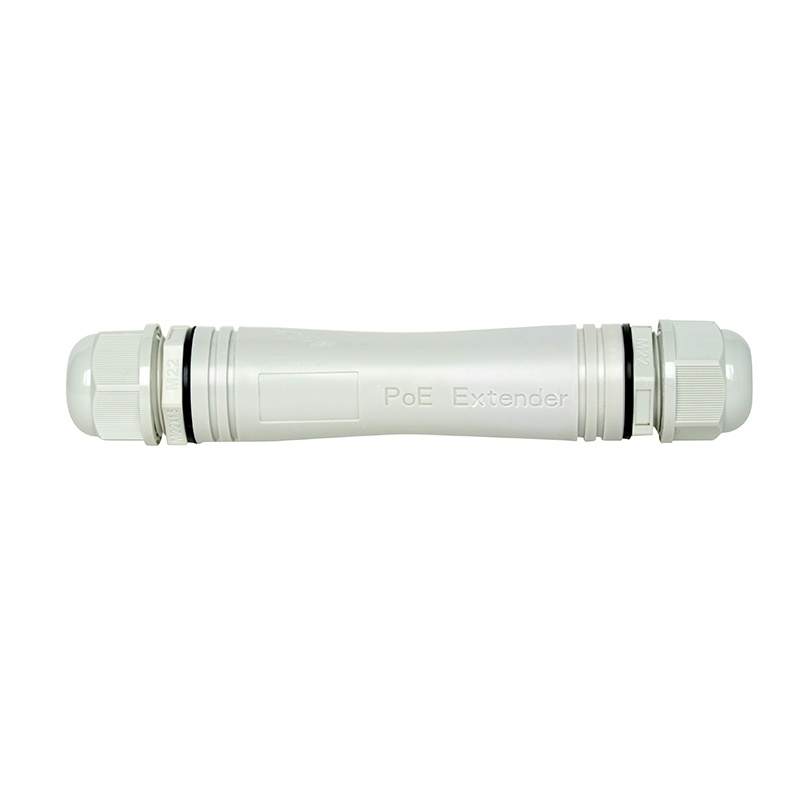

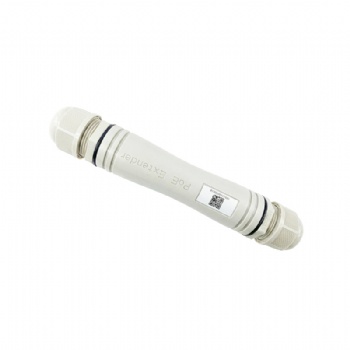

30w 100Mbps IP67 PoE extender
1, Complies with IEEE802.3af/at/bt Standard;
2, Plastic housing, protection class IP67;
3, Capable of transmitting both data and power on a single network cable;
4, Support 10/100Mbps data transmission;
5, Single PM3001FPR-W V2 use with a regular PoE Switch, power over internet(PoE) distance is 100 meters maximum with 100Mpbs;
6, Two PM3001FRP-W V2 use with a regular PoE Switch, power over internet(PoE) distance is 300 meters with 100Mbps or up to 800 meters
maximum with 10Mbps;
7, 1 PD receiving terminal ,1 PSE supply terminal;
8, Plug-and-play, no configuration required;
9, Operating temperature：-10°C~55°C;
10, It's ideal for harsh outdoor environment.
Product Specifications
|
Model |
SST-01FPW |
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
|
Port |
2*10/100Mbps RJ45 ports |
|
Network Media(Cable) |
10BASE-T: UTP category 3,4, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) |
|
Dimensions (L*W*H) |
156.5*29*29MM |
|
RJ45 PoE |
Data Pairs 1/2（+）3/6（-）,4/5（+）7/8（-） |
|
Power Supply |
PoE |
|
PDPortInput |
IEEE802.3af/at/bt |
|
PoE Power Output |
IEEE802.3af/at/bt |
|
Operating Temperature |
-10 °C ~ 55°C |
|
Storage Temperature |
-40 °C ~70 °C |
|
Operating Humidity |
10% ~ 90% non-condensing |
|
Storage Humidity |
5% ~ 90% non-condensing |
|
MTBF |
>50000 hour |
|
Weather Rating |
IP67 |
