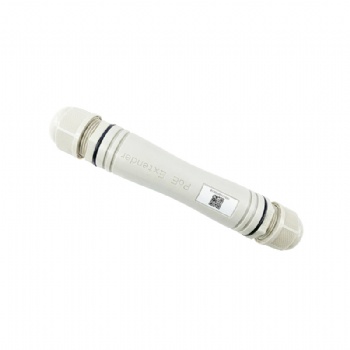

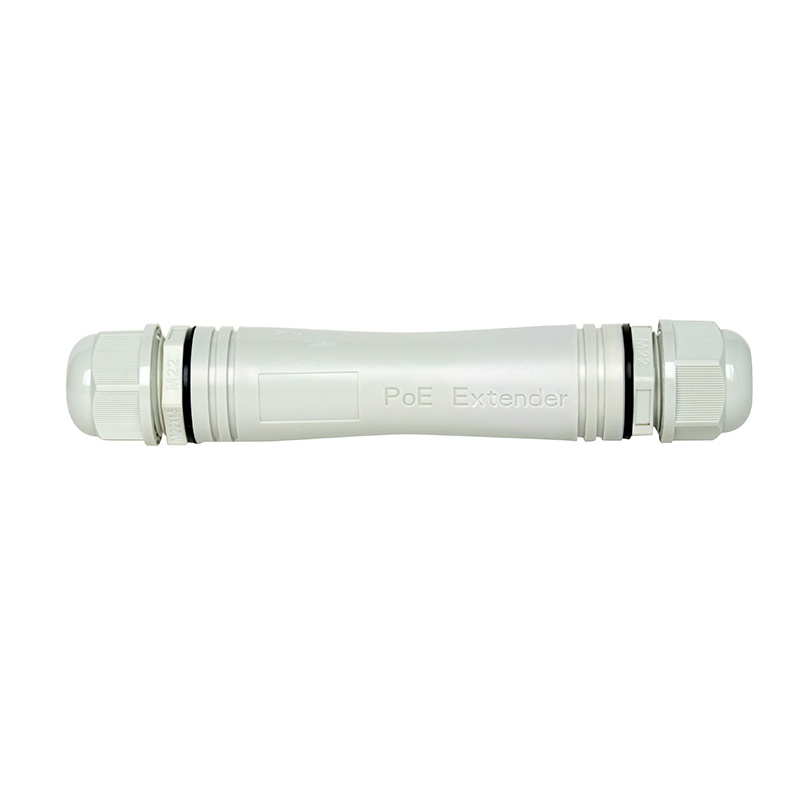

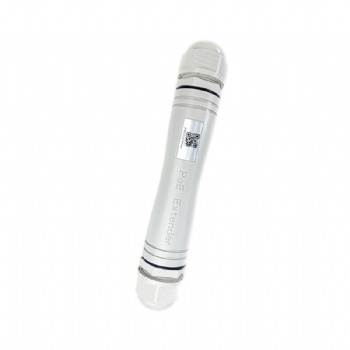

1000Mbps 30w IP67 waterproof PoE extender

1, Complies with IEEE802.3af/at Standard;

2, Plastic housing, protection class IP67;

3, Capable of transmitting both data and power on a single network cable;

4, Support 10/100/1000Mbps data transmission;

5, 1 PD receiving end and 1 PSE supplying end, the standard of the equipment connected to both ends must be the

same;

6, Plug-and-play, no configuration required;

7, Operating temperature: -10°C~50°C;

8, It's ideal for harsh outdoor environment.

Model	SST-01GPW
Port	110/100/1000Mbps INPORT 110/100/1000Mbps OUTPORT
Standard	IEEE802.3, IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3af,IEEE802.3at
Network Media(Cable)	10BASE-T: UTP category 3,4, 5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-TX: UTP category 5,5e cable (≤100m)
Indicator	LNK/ACT (Green), PoE (Orange)
MAC Address Table	2K, Auto-learning, Auto-update
Jumbo Frame	9KByte
Packet Buffer	3Mbit
Transfer Mode	Store-and-forward
Power supply method	PoE Powered / Pass-Through
PD Port Input	IEEE802.3af/at
PoE Power Output	IEEE802.3af/at
Input Voltage	DC 48~57V
RJ45 PoE	1/2(+) 3/6(-)
Dimensions (LWH)	156.52929mm
Operating Temperature	-10 °C ~ 50 °C
Storage Temperature	-40 °C ~ 70 °C
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
MTBF	>100000 hours
Weather Rating	IP67
