Shenzhen SunSoont Technology Co., Ltd

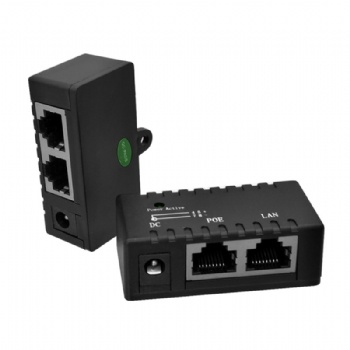

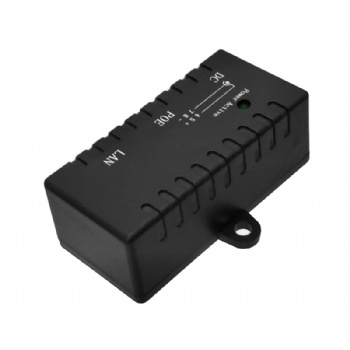

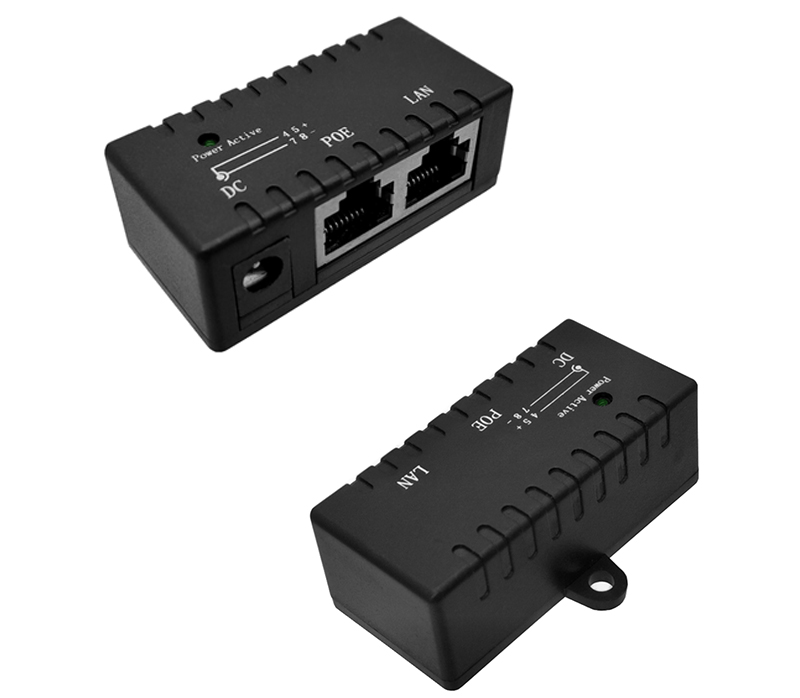

Mini Gigabit POE injector Module
Features
· Mini Style Passive PoE Injector module with LED Indicator
· PoE and Lan port 2 x RJ45 connector easy using
· Simple POE power supply, POE power supply module, combiners, splitters,Injector
· Support 1000M transmission network
· Power Mode: supply power when power on. Output voltage equal to input voltage.
· Clarify: All buyers,please note this injector, splitter does not works with Standard PoE device which is IEEE 802.3af or IEEE802.3at.Only works with the PoE device not IEEE 802.3af or IEEE802.3at.
Application:
- Wireless Access Point
- IP Camera
-Wireless bridge/CPE
- Computer Networks
Technical Parameters：
|
Product Name |
Gigabit POE Injector Module |
|
Model Number |
SST-POE-02 |
|
Port |
1*10/100/1000Mbps RJ45POEpower supply port |
|
POE Power |
POE = Power (45+ 78--) + data (12,36) |
|
DC Connection |
5.5mm * 2.1mm, power:12V-48V,Maximum current 2A Default without power adapter |
|
Housing |
White/Black color, Plastic ABS material |
|
Size |
50*27*24mm |
|
Weight |
0.024KG |
|
Environment |
Operating Temperature：-10℃--55℃ |
|
Application |
IP camera, wireless CPE, wireless router, wireless AP, etc |
