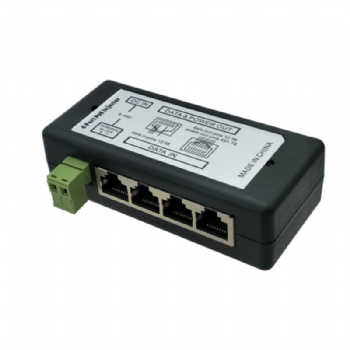

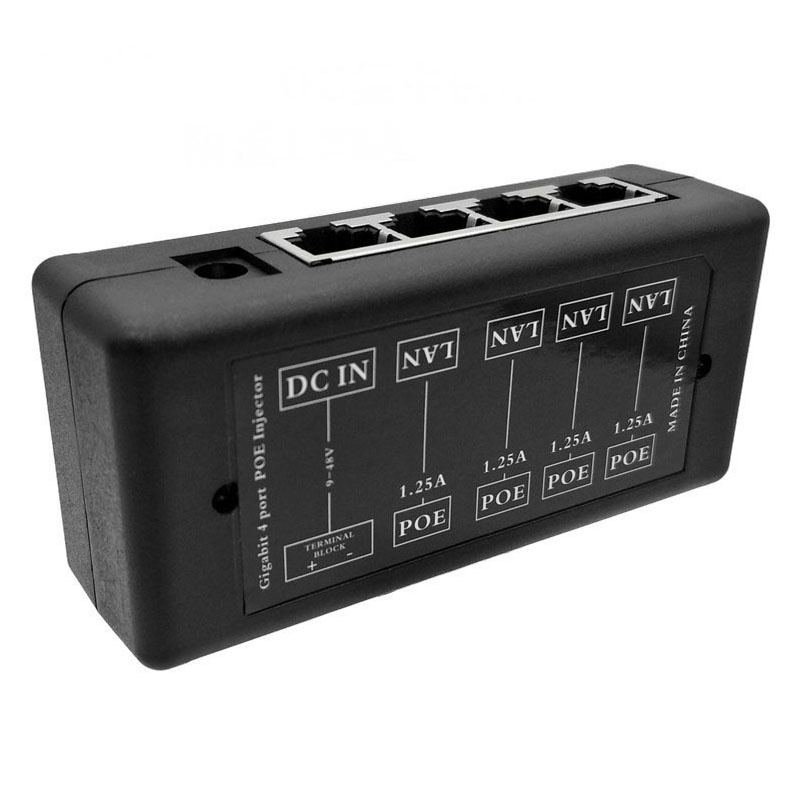

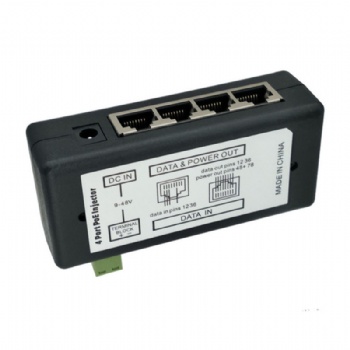

This Non standard passive PoE injector is a simple and convenient equipment for PoE or Non PoE devices via an Ethernet cable.
Power Input = Power Output*channels
Take 4 Ports POE injector as example: DC48V 4A Input = DC12 V1A Output per channel,
DC48V 2A Input = DC48V 0.5A output per channel. If you only use 3 of 4 channels,
DC12V3 A input = DC12V 1A output per channel.
Specification
|
Model No.: |
POE-BZ04G |
|
Led: |
Indicate the working state |
|
Power pin: |
4&5(+), 7&8(-); Data pin: 1236 |
|
Lan port: |
4ports in RJ45(data in), 4port poe RJ45(data&power out) |
|
Lan environment: |
10/100/1000Mbps Base-T, Ethernet cable: TIA/EIA 568 Cat.5 or Cat.5e |
|
Data in: |
PC/Hub/Switch/Router, etc. |
|
Working temp: |
0~+40°C |
|
Working humidity |
20 ~90% RH non-condensing |
|
Storage temp & humidity |
-20 ~+75°C, 10~95% RH |
|
Size |
10cm*4.7cm*3.1cm, weight:150g |
|
power voltage |
should not be over DC48V |
