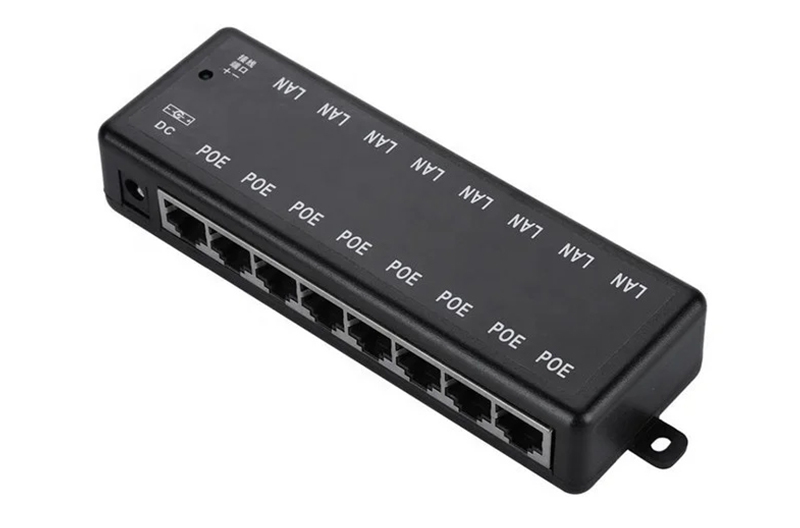

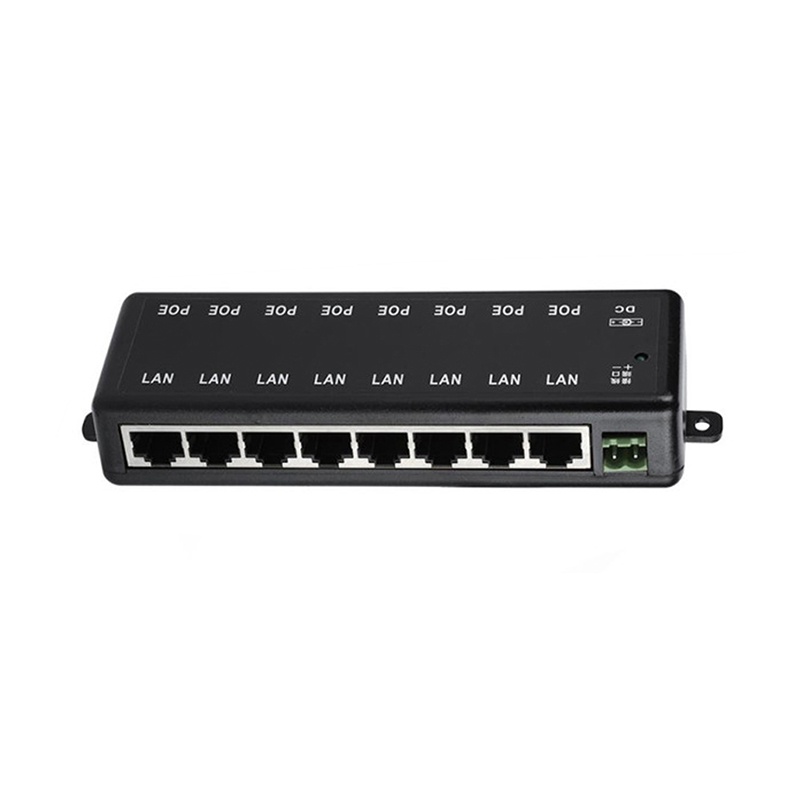

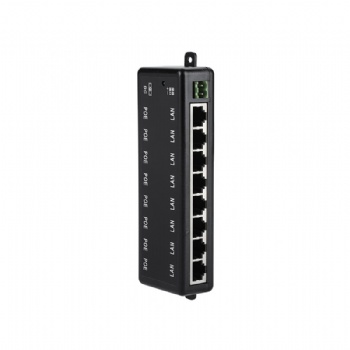

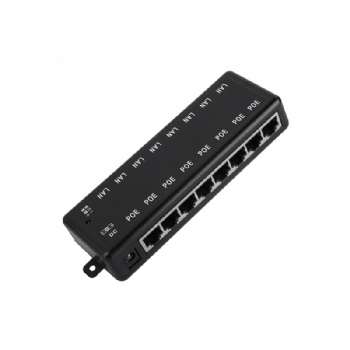

8 POE Injector Hub

Our 8 POE Injector Hub is used to offer a cost effective PSD to PD solution to upgrade existing infrastructures with POE

providing a Max.DC48V,1-10A and ensuring safe operature of any standard POE data terminal. It allows IP telephones

wireless LAN access points security network cameras and IP terminals to power along with data at up to 1Gbps speed over

ethernet standard cables, leaving infrastructures completely unaltered.

ltem	8 port Gigabit POE Injector
Input Voltage	12-48V DC,1-10A
Output Voltage	12-48V DC,0.65/1.25A Each port
NETWORK standards	IEEE802.3i 10 BASE-T IEEE802.3i 100 BASE-TX IEEE802.3AF
POE power	Wiring:Data provided over pairs 12&36 and Power provided over 45(+)&78(-) Cable:UTP cat.5 or higher
Processing types	Store-and forward Half-duplex back pressure and IEEE802.3X full-duplex flow control
Data Rate	10/100/1000Mbps
lnstallation	Plug and play installation
LED indicator	Power
Working Tem	-10℃~45℃
Storage Tem	-10℃~70℃
Operating Humidity	20%-85%,Non-condensing
Size Info	1455027mm
Weight	0.11KG
