Shenzhen SunSoont Technology Co., Ltd

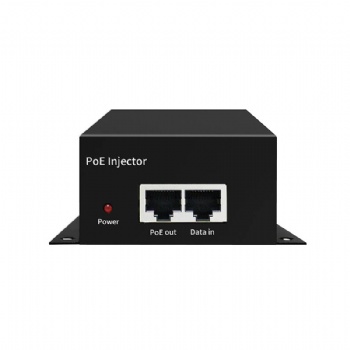

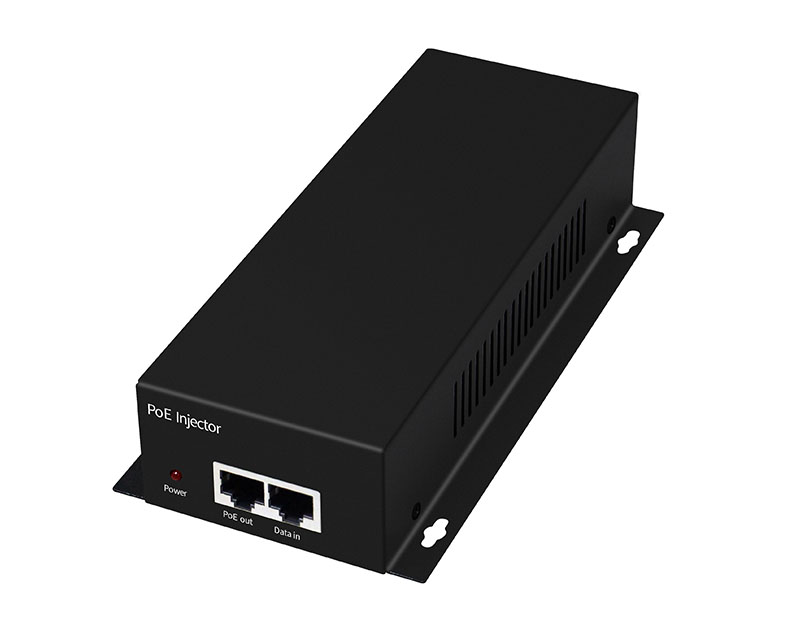

SST-BT-60W Gigabit Ethernet POE power supply, the maximum output power of the POE port is60W, the data access
port supports 10/100/1000 adaptive, AC 110-264 V voltage input, and the operating temperature range is -20℃~ + 50℃,
using industrial-grade chip enhanced design, port with lightning protection and static protection, and in compliance with CE,
RoHS standards, reliable hardware design can ensure your automation system runs uninterrupted and stable, PTZ high-speed
ball products , Compact computer, all-in-one, digital signage display system, etc.
MainFeature
1.Support 1 Gigabit POE power supply port + 1 Gigabit network port
2. Compatible with IEEE802.3af (15.4W), IEEE802.3at (30w) and IEEE802.3bt (60w)
3. Support power usage monitoring, 30%, 60%, 90% three states
4.Support AC 110-264 V power supply
5. Metal case, IP20 protection grade, -20 to 50°C working temperature
6. Support port surge: differential mode 2KV, common mode 6KV; electrostatic ESD: contact discharge 6KV, air discharge 8KV
|
Specification |
||
|
Product Name |
60W GigabitPOE injector |
|
|
Model Number |
SST-BT-60W |
|
|
Port |
1* support POE function+1* 10/100/1000Mbps port |
|
|
POEspecification |
PoE Standard：compatible withIEEE802.3af /IEEE802.3at/IEEE802.3bt |
|
|
Max：15.4 W (IEEE 802.3af) Max：30 W (IEEE 802.3at) Max: 60W(IEEE802.3bt) |
||
|
POE output: DC 48-52V |
||
|
POE pin:1/2-；3/6+ or 4/5+；7/8- |
||
|
Network interface |
10BASE-T: Cat5UTP(≤250m) 100BASE-TX: Cat5and aboveUTP(≤100m) 1000BASE-TX: Cat5and aboveUTP(≤100m) |
|
|
LED Indicators |
PWR |
On：working |
|
POE Power 30%/60%90% |
On：power status |
|
|
Power |

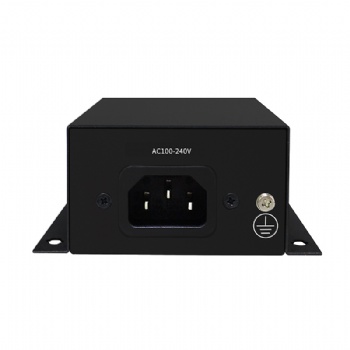

Input:AC 110-264 V Frequancy： 50/60 Hz Output：52V/1.25A |
|
|
Working Environment |
Working temperature: -20～50℃ Storing temperature: -40～85℃ Humidity: 5%~95 % |
|
|
Standard test |
EN61000-4-2（ESD）Contact8KV，Air15KV EN61000-4-4（EFT） FCC Part 15/ CISPR32 /EN55032： CLASS A IEC 60068-2-27 Impact test IEC 60068-2-32 Free fall test IEC 60068-2-6 Vibration test |
|
|
Physical structure |
Shell protection level: IP20 Installation: wall mount Product Size (L×W×H)：187 mm×95mm×40 mm Package Size(L×W×H)：254mm×190mm×60mm |
|
|
Packing list |
1. 60W Gigabit POE injector：1set 2. Manual：1PCS 3. Certificate of conformity, warranty card：1PCS |
|
|
Certificate |
CE、FCC、CCC、RoHS |
|
|
Service life |
100,000hours |
|
|
Warranty |
3 years |
|
