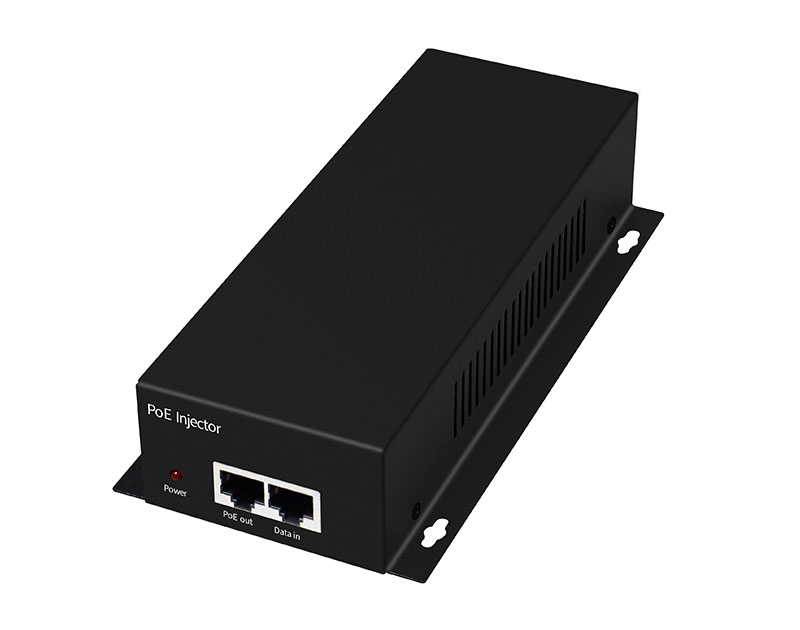

90W Gigabit POE Injector

Gigabit Ethernet POE Injector, the maximum output power of POE port is 90W and the port supports 10/100/1000 self-adaption.
Support voltage input AC 110-264V, the operating temperature range is -20℃~+50℃, the industrial chip enhanced design, the
port is equipped with surge protection ESD. Comply with FCC, CE, RoHS standards. Reliable hardware design can ensure your automation
system uninterrupted stable operation, products are widely used in PTZ high-speed ball, compact computer, all-in-one, digital signage display system, etc.

Main features:

1, Support 1* Gigabit PoE Port+ 1* Gigabit Ethernet Port;

2, Support IEEE802.3af (15.4W), IEEE802.3at (30w) and IEEE802.3bt (90w);

3, Support power supply AC 100-240 V

4, Metal housing, IP20 protection rating, -20 to 50°C operating temperature;

5, Support port surge protection: Differential mode 2KV, common mode 6KV; ESD: Contact 6KV, air 8KV;

Specification
General Parameter
Product Name	90W Gigabit POE Injector
Model number	SST-BT-90W

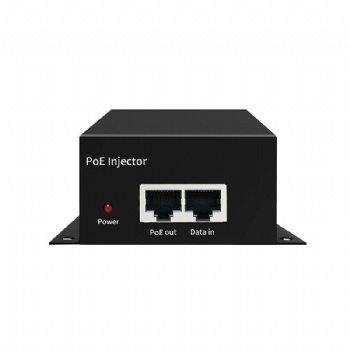

Port	1* Gigabit POE Port+1* Gigabit Ethernet Port
POE Specification	PoE Standard: Support IEEE802.3af/ IEEE802.3at/ IEEE802.3bt
	Single Port Max: 15.4W (IEEE 802.3af) Single Port Max: 30W (IEEE 802.3at) Single Port Max:90W (IEEE 802.3bt)
	POE Port Output Voltage: DC 52V
	POE Power supply wire core: 1/2-; 3/6+ Or 4/5+; 7/8-
Network Medium	10Base-T: Cat3, 4, 5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤200m) 1000Base-TX: Cat5 or above UTP(≤200m)
Indicator	PWR	On: Powered on Off: Powered off

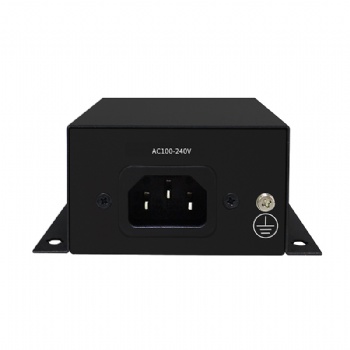

Power	Input Voltage: AC 100-240V Working Frequency: 50/60 Hz Supply Power: 52V/1.73A
Working Environment	Working Temperature: -20～50℃ Storage Temperature: -40～85℃ Humidity: 5%~95 % (non-condensing)
Industry Standard	EN61000-4-2 （ESD） IEN61000-4-5（Surge）EN61000-4-3 （RS） EN61000-4-6 （CS） EN61000-4-4 （EFT）
Physical Structure	Protection Grade: IP20 Install: Wall Mounting Product N.W: 0.486KG Product G.W: 0.712KG Product Size (LWH): 187mm* 95mm40 mm Package Size (LWH): 245mm190mm60mm Carton size(LWH): 520mm320mm*400mm Packing Qty: 20 units Packing weight: 15.24KG
