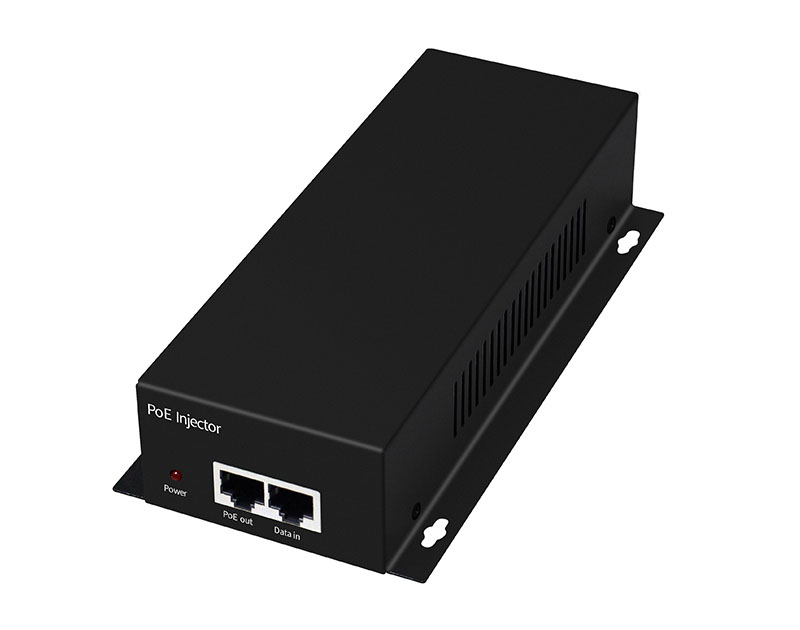

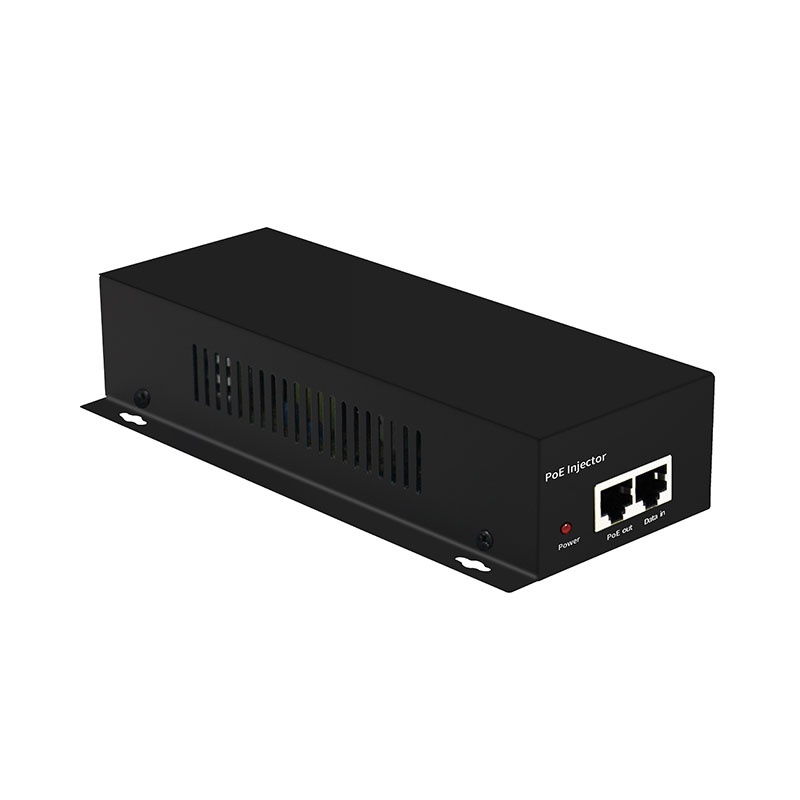

90W 10G POE Injector

10G Ethernet POE Injector, the maximum output power of POE port is 90W, and the Ethernet port supports

10/100/1000/10000Mbps self-adaption. Support voltage input AC100-240V, the operating temperature range is -

20℃~+50℃, the industrial chip enhanced design, the port is equipped with surge protection ESD. Comply with FCC,

CE, RoHS standards. Reliable hardware design can ensure your automation system uninterrupted stable operation,

products are widely used in PTZ high-speed ball, compact computer, all-in-one, digital signage display system, etc.

1, Support 1* 10G PoE Port+ 1* 10G Ethernet Port;

2, Support IEEE802.3af (15.4W), IEEE802.3at (30w) and IEEE802.3bt (90w);

3, Support power supply AC 100-240 V

4, Metal housing, IP20 protection rating, -20 to 50°C operating temperature;

5, Support port surge protection: Differential mode 2KV, common mode 6KV; ESD: Contact 6KV, air 8KV;

Specification
General Parameter
Product Name	90W 10G POE Injector
Model number	SST-BTTG-90W

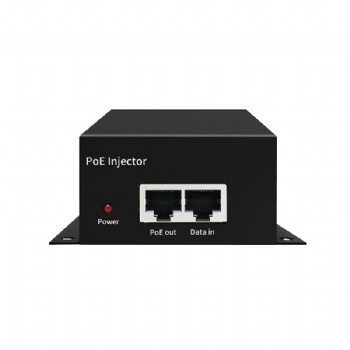

Port	1* 10G POE Port+1* 10G Ethernet Port
POE Specification	PoE Standard: Support IEEE802.3af/ IEEE802.3at/ IEEE802.3bt
	Single Port Max: 15.4W (IEEE 802.3af) Single Port Max: 30W (IEEE 802.3at) Single Port Max: 90W (IEEE 802.3bt)
	POE Port Output Voltage: DC44~57V
	POE Power supply wire core: 1/2-; 3/6+ Or 4/5+; 7/8-
Surge protection	Port surge: differential mode 2KV, common mode 6KV; Electrostatic ESD 6KV, air 8KV（Class B）
Indicator	PWR	On: Powered on Off: Powered off

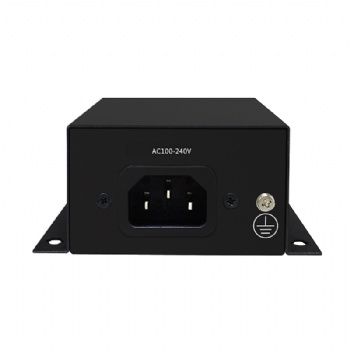

Power	Input Voltage: AC 100-240 50/60Hz Supply Power: 52V/1.92A
Working Environment	Working Temperature: -20～50℃ Storage Temperature: -40～85℃ Humidity: 5%~95 % (non-condensing)
Package Content	Injector 1pcs, Manual 1pcs Power cable 1pcs
Physical Structure	Product N.W: 0.486KG Product G.W: 0.712KG Product Size (LWH): 187mm* 95mm40 mm Package Size (LWH): 245mm190mm60mm Carton size (LWH): 520mm320mm*400mm Packing Qty: 20 units Packing weight: 15.24KG
