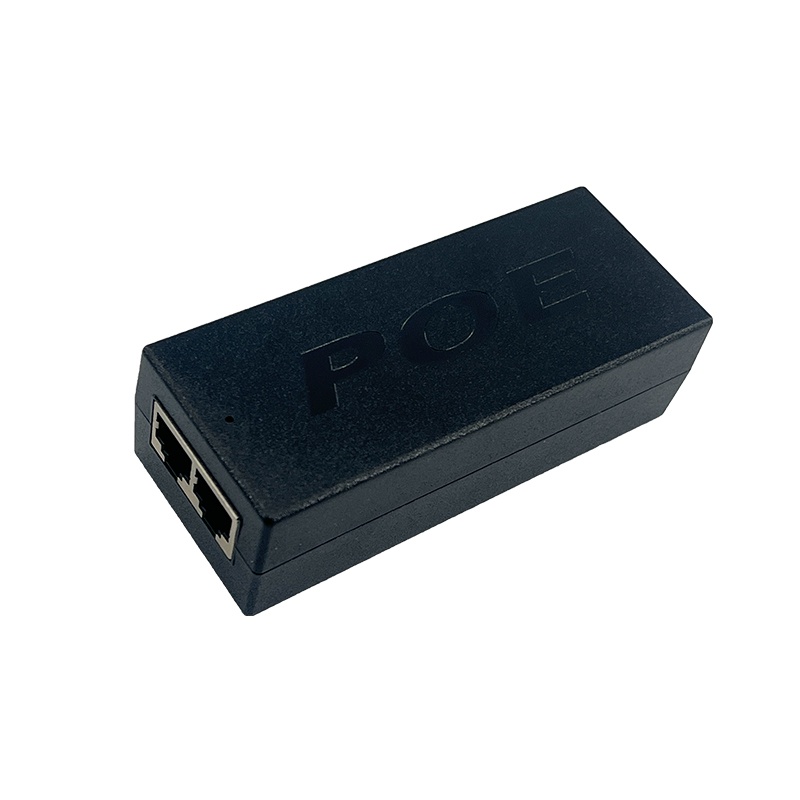

30W DC48V PoE injector

SST-LPG30G 45+/78- non-standard power supply is a 48V POE power supply product.

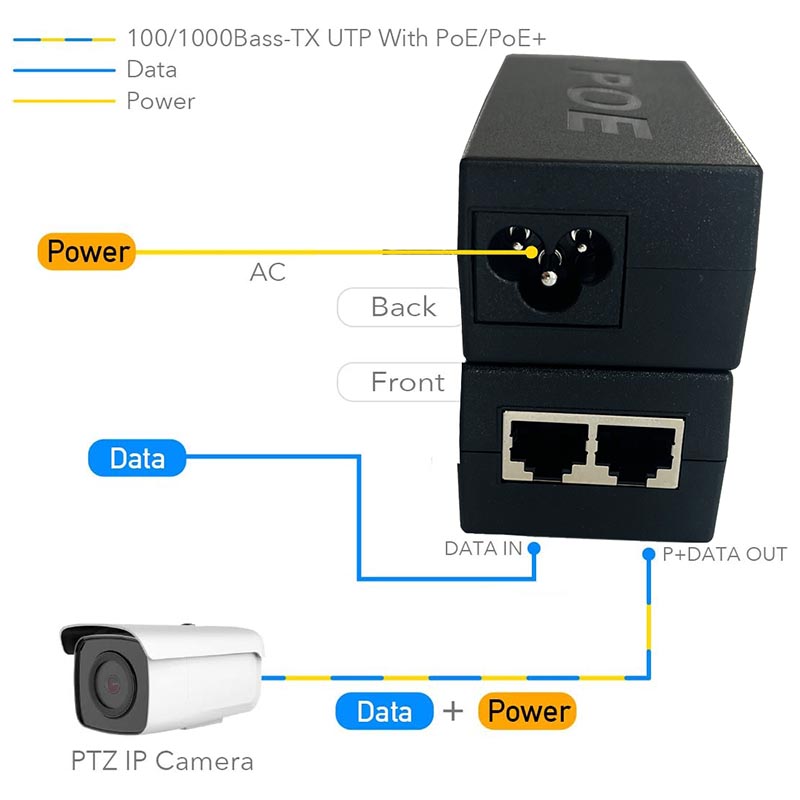

The power supply is connected to the network terminal equipment through a network cable

and has an Ethernet data port and a POE output port that combines data and power. Meet

the inability to provide power remotely or use Ethernet network cable power supply to

improve system reliability, simplify equipment installation, and provide efficient engineering

solutions.

1, Product size: 110*45*33mm.

2, DK025G chipset, supports power supply voltage input 110VAC-240VAC, and has multiple

built-in protection circuits.

3, POE power: 33W (48V/0.7A) (can only pass 45+, 78-)

4, Output data: POE OUT (1, 2, 3, 6, 4, 5, 7, 8)

5, Transmission rate: 10/100/1000Mbps

6, Power indicator light: red

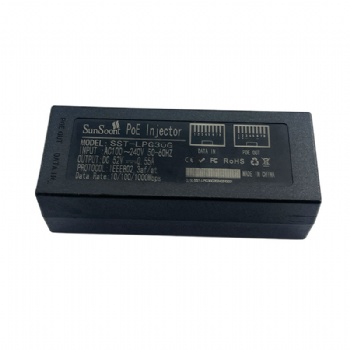

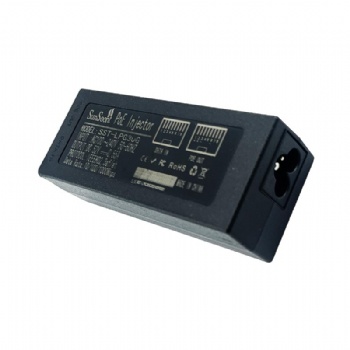

Product name	30w DC48v PoE injector (SST-LPG30G)
Transmission rate	10/100/1000Mbps
Voltage	PoE in: 110VAC-240VAC	PoE out: DC48v ( 45+，78-)
Efficiency	≥85%
Output voltage	No-load maximum voltage	49v
	Full load minimum voltage	48v
Output current	0~0.7A，OCP≧0.7A
Maximum output power	33w
Ripple Vpp	≤350mV
Overcurrent protection	Yes
Overvoltage protection	Yes
Short circuit protection	Yes
temperature protection	Yes
Short circuit protection	When the output is short-circuited or overloaded, the product will enter the short-circuit or overload protection state; when the short-circuit or overload condition is resolved, the product will automatically return to normal.
Work temperature	－10℃～+40℃
Size	（L×W×H）1104533mm
