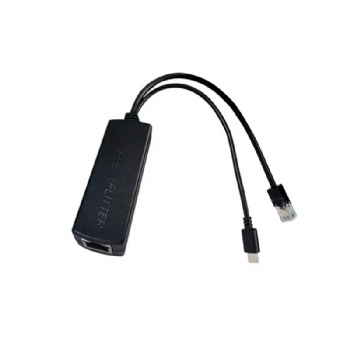

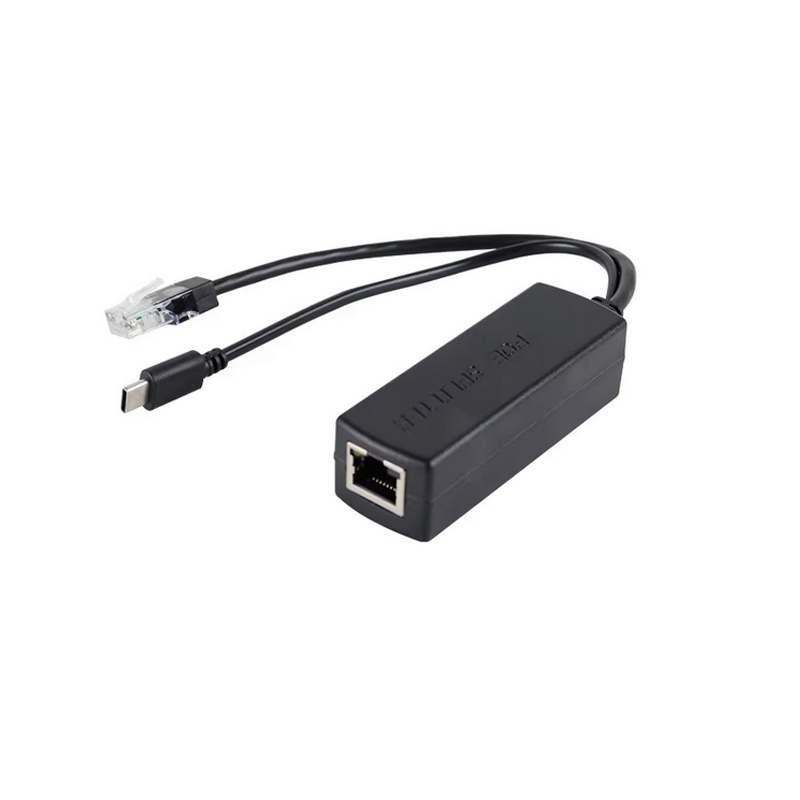

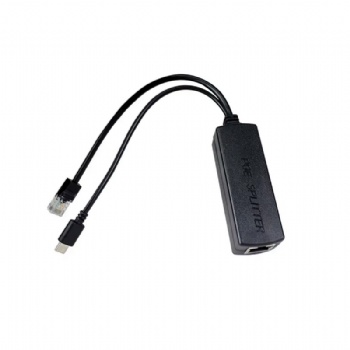

1000Mbps DC48V to DC5V POE splitter

The DC48V to DC5V POE splitter is a high-performance POE product that complies with IEEE802.3af/at standards, has a

size of 82*28*23mm, and a line length of 195mm. It has photoelectric isolation. The output power meets the power

consumption requirements of more than 90% of the market's cameras. PoE splitter, output voltage of 5V use with the

power supply equipment, It helps to expand wireless city, Security monitoring and other POE practical place, and is not

restricted by layout of power line.

1.POE input voltage DC44~57V

2.POE protocol: IEEE802.3af/at

3.Transmission rate: 10/100/1000Mbps

4.DC Jack output DC5V 2A

5. Isolation voltage: 1500V

6.POE transmission: (1, 2) +/(3, 6) - and (4, 5) +/(7, 8) - adaptive

7. Crystal head output: data (1, 2) +/(3, 6) -.

8. Power output: Micro USB、Type-C、5.5*2.1、3.5*1.35

Model Number	SST-LPS0520VK
PoE Power Supply	Protocol	IEEE802.3af/at
	Power Supply	Compatible Mode A (End-Span) and Mode B (Mid-Span)
	Power Supply	1/2(+),3/6(-);4/5(+),7/8(-)
	Power Consumption	15.4W/24W
	Input Voltage	PoE 44V-57V
	Output Voltage	DC 5V 2A
Ethernet Port	Ethernet Port	1×RJ45 Input
	Transmission Speed	10/100/1000Mbps
	Transmission Medium	Cat5/5e/6 Standard Network Cable
	Transmission Distance	150m (cat5e)
LED Indicator	Input PoE Power Indicator	1 (POE IN Port RJ45 Yellow Light)
Protection	ESD	1a Contact discharge Level 3
		1b Air discharge Level
		Per: IEC61000-4-2
Environmental	Working Temperature	0℃~45℃
	Storage Temperature	-40℃~70℃
	Humidity (non-condensing)	0~95%
Mechanical	Dimension (L×W×H)	82x28x23mm
	Material	Plastic
	Color	Black
	Weight	65g
Stability	MTBF	>30000h
