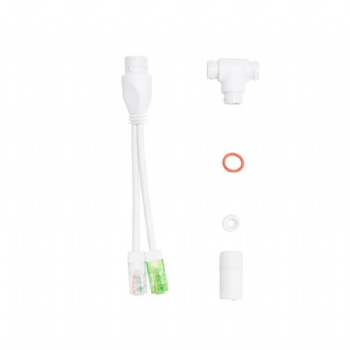

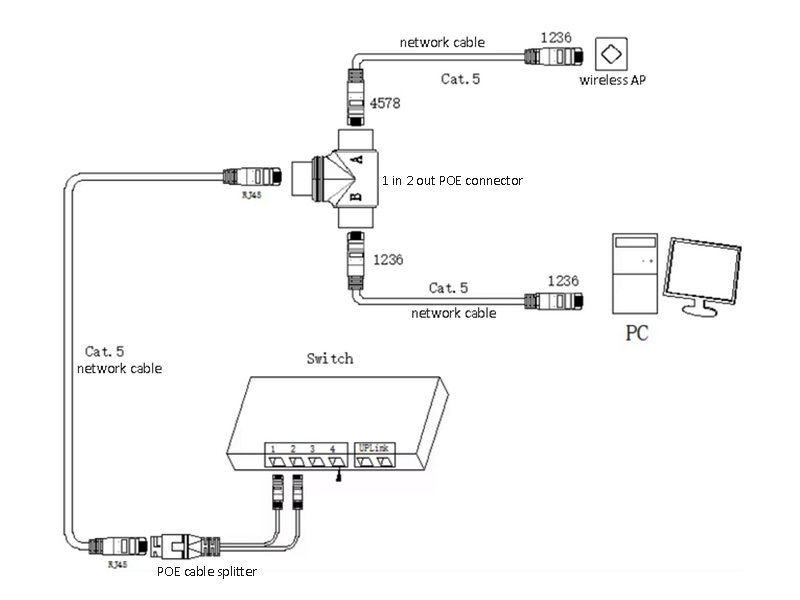

The SST-LPCSH POE cable splitter is an 8-core network can be divided into two 4-core 1 2 3 6 network and 4 5 7 8 network link tee
connector to meet the market demand for some non-standard network wiring. at the same time, this tee connector set of our network
cable connector, to achieve a network cable, the transmission of the two 1000M of the network signal function. Connected to the matching
waterproof kit, in the outdoor can achieve the effect of moisture and rain, for you to mesh wiring to save labor and material costs, you
want to choose the ideal choice of non-standard network devices.
connector to meet the market demand for some non-standard network wiring. at the same time, this tee connector set of our network
cable connector, to achieve a network cable, the transmission of the two 1000M of the network signal function. Connected to the matching
waterproof kit, in the outdoor can achieve the effect of moisture and rain, for you to mesh wiring to save labor and material costs, you
want to choose the ideal choice of non-standard network devices.
Technical Parameters：
|
Model Number |
SST-LPCSH |
|
Data |
PIN 1/2 & 3/6 |
|
Power |
PIN 4/5+ & 7/8 |
|
Data in Connects |
PC/HUB/Switch |
|
Ethernet Data rate |
10/100/1000Mbps |
|
Ethernet Cable |
TIA/EIA 568 Cat.5 |
|
Support Power |
12-48V |
|
Ethernet Cable Connector |
RJ-45 |
|
Operating Temperature |
0 - 40 Degree |
|
Storage Temperature |
-40 - 70 Degree |
|
Operating Humidity |
10% to 80% RH |
|
Storage Humidity |
5% to 90% RH |
