Shenzhen SunSoont Technology Co., Ltd

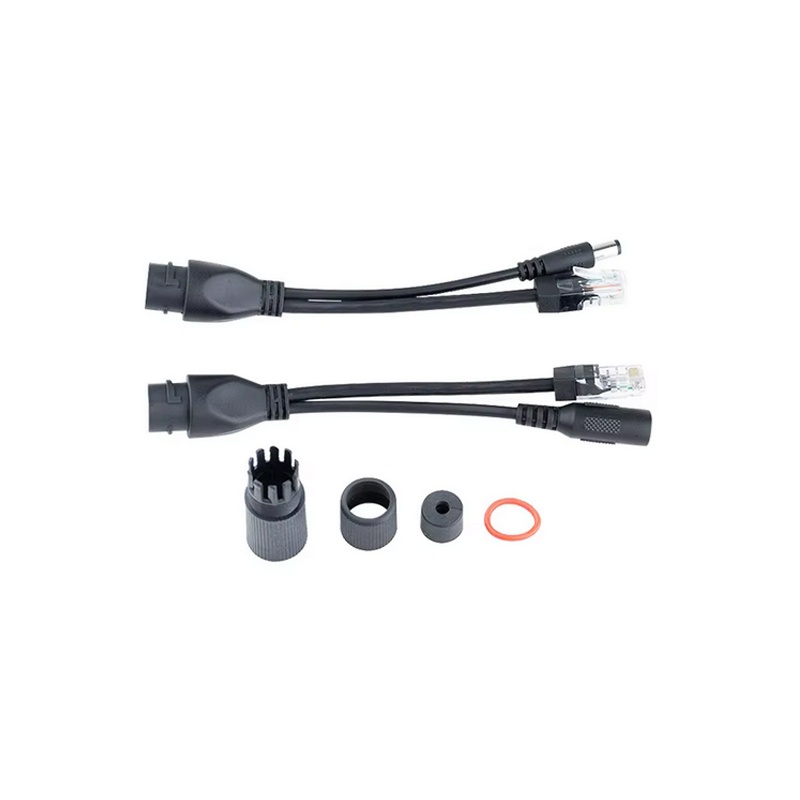

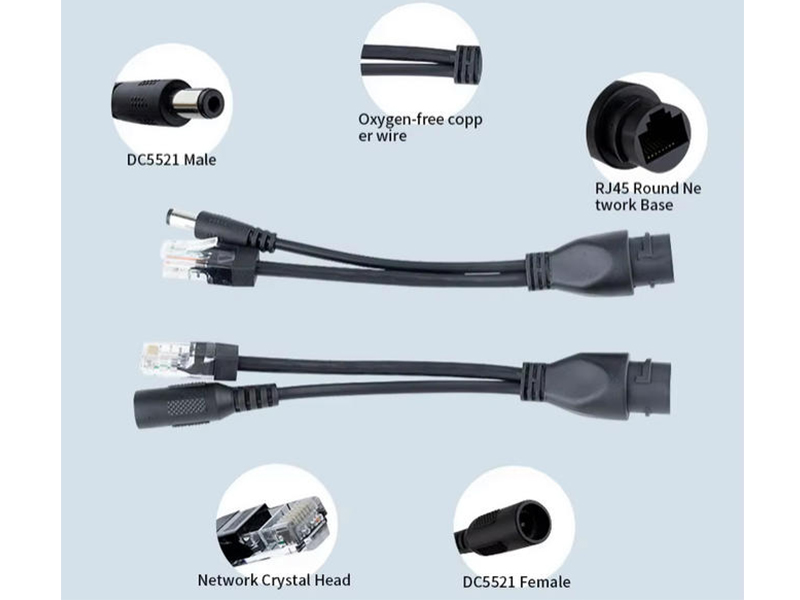

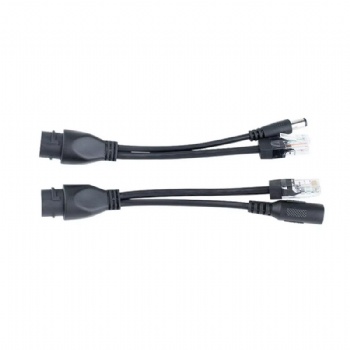

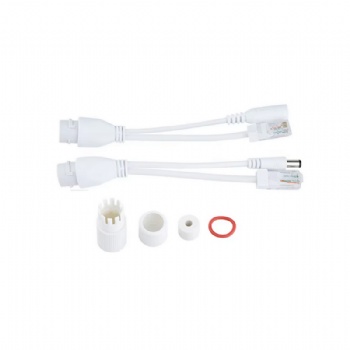

The waterproof Passive Power over Ethernet set contains two pieces - INJECTOR and SPLITTER. It is suitable for using with products
that basically do not support Power Over Ethernet. Passive Power Over Ethernet set is applicable for wide range of network products
such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices.
that basically do not support Power Over Ethernet. Passive Power Over Ethernet set is applicable for wide range of network products
such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices.
Application:
- Wireless Access Point
- IP Camera
- IP Phone
- Computer Networks
Passive Power over Ethernet set is compatible with most devices.
Technical Parameters：
|
Model Number |
SST-LWPH3 |
|
Data |
PIN 1/2 & 3/6 |
|
Power |
PIN 4/5+ & 7/8 |
|
Data in Connects |
PC/HUB/Switch |
|
Ethernet Data rate |
10/100 Mbps |
|
Ethernet Cable |
TIA/EIA 568 Cat.5 |
|
Support Power |
12-48V |
|
Ethernet Cable Connector |
RJ-45 |
|
Operating Temperature |
0 - 40 Degree |
|
Storage Temperature |
-40 - 70 Degree |
|
Operating Humidity |
10% to 80% RH |
|
Storage Humidity |
5% to 90% RH |
|
DC PLUGS & JACKS |
2.1 x 5.5 x 12mm Bakelite |
