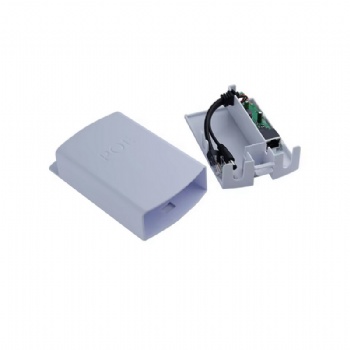

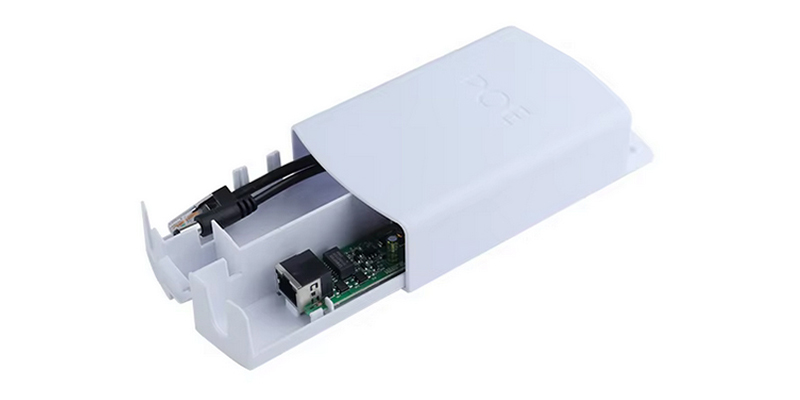

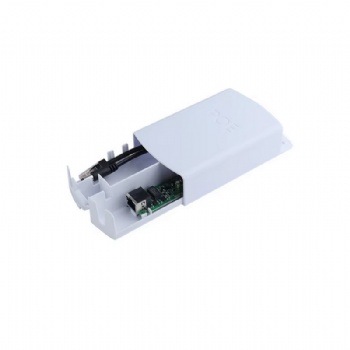

Waterproof DC12V Isolated POE Splitter

Waterproof DC12V Isolated POE Splitter, it is an economical and practical PoE remote power equipment base on IEEE802.3af/at

standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector
which meet standard IEEE802.3af/at, Provides power and data at the same time for the terminal device does not support PoE.

PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city,

Security monitoring and other poe practical place, and is not restricted by layout of power line.

Features:

1. POE input voltage DC44~57V

2. POE protocol: IEEE802.3af/at

3.Transmission rate: 10/100Mbps

4. DC Jack output DC12V, 1.5~2A

5. Use for outdoor or indoor

6. POE transmission: (1, 2) +/(3, 6) - and (4, 5) +/(7, 8) - adaptive

7. Crystal head output: data (1, 2) +/(3, 6) -

8. Power output: DC JACK 5.5*2.1mm

Technical Parameters：

Model Number	SST-LPSW1210EL
PoE Power Supply	Protocol	IEEE802.3af/at
	Power Supply	Compatible Mode A (End-Span) and Mode B (Mid-Span)
	Power Supply	1/2(+),3/6(-);4/5(+),7/8(-)
	Power Consumption	15.4W/24W
	Input Voltage	PoE 44V-57V
	Output Voltage	DC 12V 1.5-2A
Ethernet Port	Ethernet Port	1×RJ45 Input
	Transmission Speed	10/100Mbps
	Transmission Medium	Cat5/5e/6 Standard Network Cable
	Transmission Distance	150m (cat5e)
LED Indicator	Input PoE Power Indicator	1 (POE IN Port RJ45 Yellow Light)
Protection	ESD	1a Contact discharge Level 3
		1b Air discharge Level
		Per: IEC61000-4-2
Environmental	Working Temperature	0℃~45℃
	Storage Temperature	-40℃~70℃
	Humidity (non-condensing)	0~95%
	Material	Plastic
	Color	White
	Weight	100g
Stability	MTBF	>30000h
