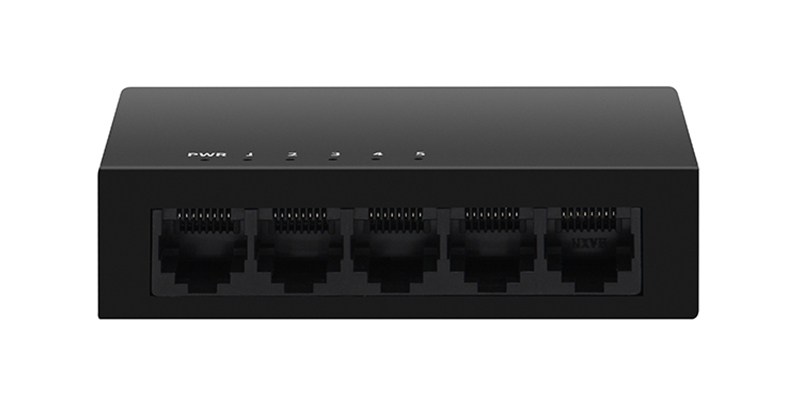

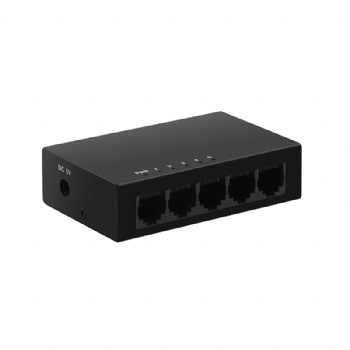

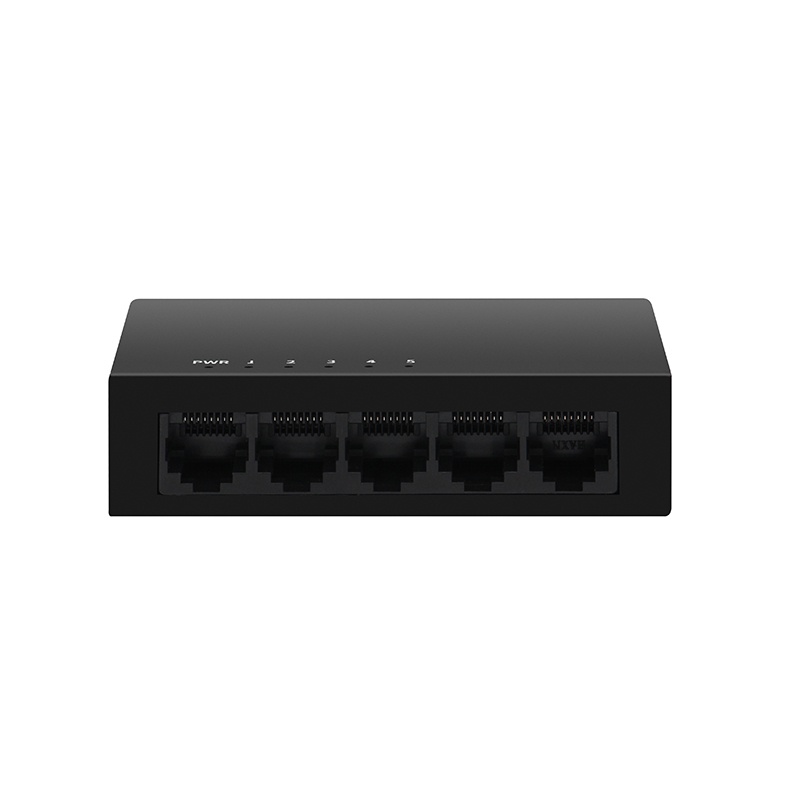

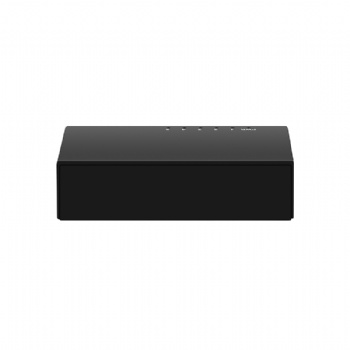

5-port Gigabit metal cover Ethernet Switch
1, 5 *1G RJ45 ports
2, Compliant with IEEE802.3 and IEEE802.3u,IEEE802.3az,IEEE802.3ab standards
3, RJ45 port supports 10M/100M/1G adaptive
4, Supports automatic port flipping (Auto MDI/MDIX)
5, The panel indicator lights will monitor the working status and assist in fault analysis
6, Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
Hardware Features
|
Description |
Specification |
|
Model |
SST-5ET |
|
Interface |
5 *1G RJ45 ports |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3x (Flow Control) IEEE802.3ab (Gigabit Ethernet) IEEE802.3az(Energy Efficient Ethernet) |
|
Switching Capacity |
10Gbps |
|
Packet Forwarding Rate |
7.44Mpps |
|
Packet Buffer |
3Mbit |
|
MAC Address Table |
2K |
|
Transmission Method |
Store and Forward |
|
Power Supply |
AC 100-240V , 50/60Hz DC 5V 1A |
|
Mainboard Power Consumption |
2.1W |
|
Structure Information |
Product Dimensions :87*54*23mm Packaging Dimensions : 90*88*58mm Product Net Weight: 0.13Kg Product Gross Weight:0.20Kg |
|
Packing Information |
Carton Dimensions :470*320*380mm Packing Quantity: 100PCS Packing Weight:21KG |
|
Package Contents |
switch 1pcs, Power adapter 1pcs, manual 1pcs,certificate of qualification 1pcs |
|
Fan Quantity |
0 |
|
Installation |
desktop |
|
Surge Protection |
Surge protection: common mode 2KV, differential mode 1KV (Class C); Electrostatic ESD: air 4KV, contact 3KV (Class C) |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-40 °C to 70 °C |
|
Operation Humidity |
10%~90%,non condensing |
|
Storage Humidity |
5%~95%,non condensing |
|
PWR LED |
Green LED On: Powered on Green LED Off: Powered off |
|
1-5 LED |
Green LED On:Link normal Green LED Off: Link blocked Flashing: Data transmitting |

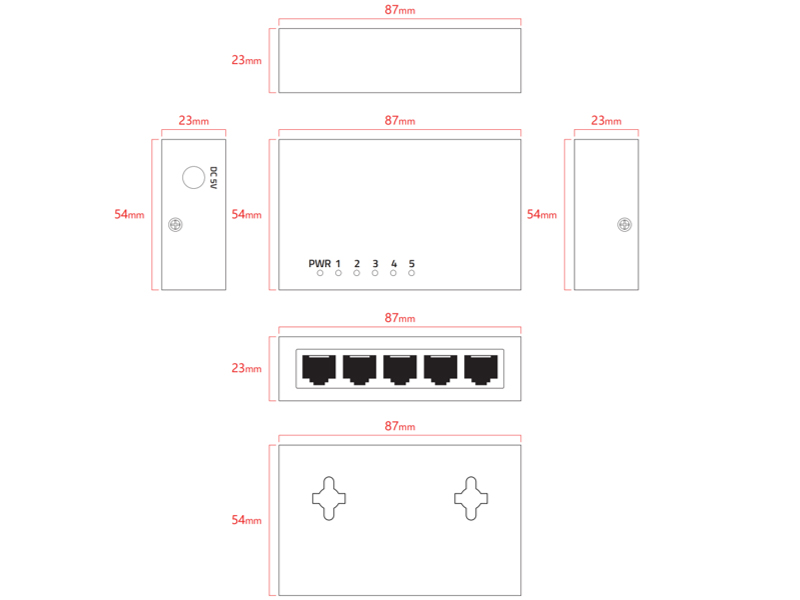

Product Structure Diagram
