24-Port Gigabit Ethernet Switch

1, Supports 24 *1G RJ45 ports+2*1G SFP optical ports

2, Supports IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

3, RJ45 port supports 10/100/1G adaptation

4, Supports automatic port flipping (Auto MDI/MDIX)

5, Adopting a storage and forwarding exchange mechanism

6, All ports support line speed switching

7, 1U rack installation

8, The panel indicator LED will monitor the working status and assist in fault analysis

9, Supports 1-8 port QOS priority

10, Supports three modes: VLAN, Default, and Extend

Hardware Features

Description	Specification
Model	SST-24ET2S
Interface	24 1G RJ45 ports 2 1G SFP ports
Port Standard	IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) IEEE 802.3x: Flow Control
Bandwidth	52 Gbps
Packet Forwarding Rate	38.68Mpps
Packet Buffer	4.1Mbit
MAC Address Table	8K
Transmission Method	Store and Forward
Power Supply	AC 100-240V , 50/60Hz DC 12V 2A
Mainboard Power Consumption	16W

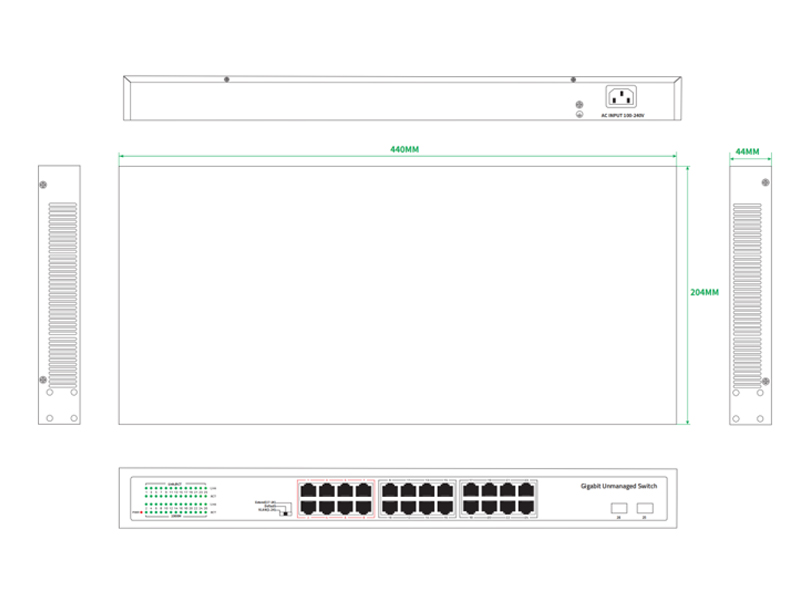

Structure Information	Product Dimensions :44020444mm Packaging Dimensions :50029085mm Product Net Weight:2.36KG Product Gross Weight:2.93KG
Packing Information	Carton Dimensions :520445310mm Packing Quantity: 5PCS Packing Weight:15.6KG
Package Contents	Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounting kit 1 pair
Fan Quantity	0
Installation	Desktop, Rack-mounting
Surge Protection	Surge protection: common mode 4KV (Class B) Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Operating Temperature	0~40°C
Storage Temperature	-40 °C to 70 °C
Operation Humidity	10%~90%,non condensing
Storage Humidity	5%~95%,non condensing
PWR LED	Green LED On: Powered on Green LED Off: Powered off
ACT LED	Green LED On:Link normal Green LED Off: Link blocked Flashing: Data transmitting
1000M LED	Green LED On:1G Link normal Green LED Off:10M/100M Link normal Flashing: Data transmitting
VLAN/Default/Extend Modes Buttons	VLAN (port isolation): 1-24 ports are isolated from each other and all communicate with 25-26 ports; Default (default mode): All ports communicate with each other; Extend (monitoring mode): 17-24 ports support 250 meters in 10Mbps mode
