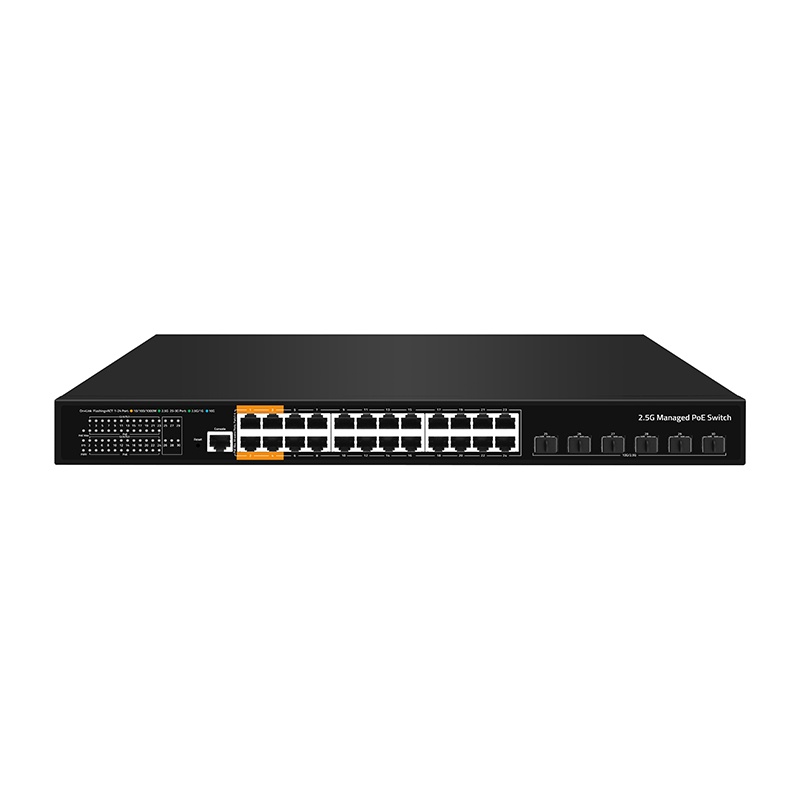

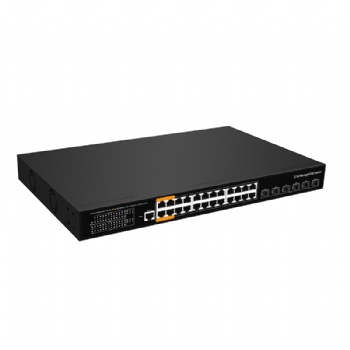

24-Port 2.5G and 6-Port 10G SFP+ L3 Managed PoE Switch

24-Port 2.5G and 6-Port 10G SFP+ Managed PoE Switch

1, Comply with IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standards

2, Support L3 management, DHCP Server, QoS, ACL control, SNMP V1/V2/V3, IGMP Snooping v1/v2

3, Support Spanning Tree Protocol STP/RSTP/MSTP (ERPS), Loop Detection and Self Healing, and Remote Loop Monitoring and Control

4, Support multiple VLAN partitions, including MAC VLAN and protocol VLAN

5, Support IP address+MAC address+VLAN+port binding, DHCP Snooping, IP source and DAI protection

6, Support IPV4/IPV6, RIP v1/v2, OSPFv2

7, Support WEB, TELNET, CLI, SSH, SNMP, RMON management

8, Comply with IEEE802.3af (15.4W), IEEE802.3at (30W), and IEEE802.3bt (90W)

9, Support PoE watchdog, PoE port power supply and power configuration, PoE time management

Hardware Features

Description	Specification
Model	SST-MPTG24E6S
Interface	242.5Gbps PoE ports 610Gbps SFP+ ports 1*Console port
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Fiber Standard) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ad (Link Aggregation) IEEE 802.1AB LLDP/LLDP MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol (Fast Spanning Tree) IEEE 802.1Q (Virtual Local Area Network) IEEE 802.1p (VLAN Tag) IEEE 802.1X (User Authentication)
Switching Bandwidth	240Gbps
Packet Forwarding Rate	178.56Mpps
Packet Buffer	16Mbit
MAC Address Table	32K
Jumbo Frame	10Kbytes
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Transmission Method	Store and Forward
PoE Standard	IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3bt (90W)
PoE Port Output Voltage	DC 44-57V
PoE Ports	Ports 1-4 support BT90W power supply Ports 5-24 PoE power output <30W
PoE Power Budget	400W
Power Supply	AC 100-240V 50/60Hz DC 56V7.15A&12V5A
Mainboard Power Consumption	52.13W

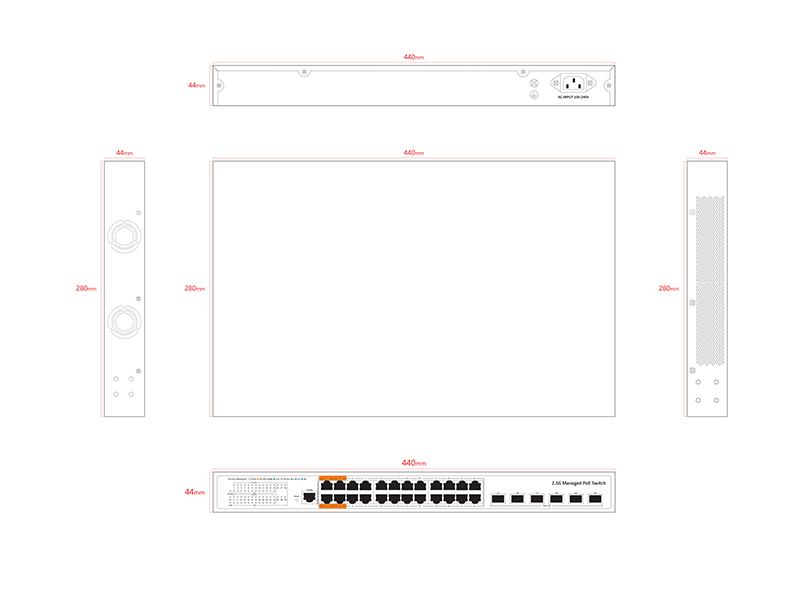

Structure Information	Product Dimensions: 44028144mm Packaging Dimensions: 50036585mm Product Net Weight: 4.37KG Product Gross Weight: 5.14KG
Packing Information	Carton Dimensions: 520445385mm Packing Quantity: 5PCS Packing Weight: 26.7KG
Package Contents	Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounted kit 1 pair
Fan Quantity	2
Installation	Desktop, Rack-mounting
Surge Protection	Port Surge: Common mode 6KV, Differential mode 2KV (Class B) Electrostatic ESD: Air 8KV, Contact 6KV (Class B)
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Green LED	On: Powered on Off: Powered off
Ports 1-24	Green LED on: 2.5Gbps Link normal Yellow LED on: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting
SYS Green LED	Flashing: System startup in progress On: The system is running normally
PoE Yellow LED	On: PoE powered on Off: PoE powered off
Ports 25-30	Blue LED on: 10Gbps Link normal Green LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
PoE Max Green LED	Off: Indicate that the PoE power usage is less than 80% On: Indicate that the PoE power is used at P>80%
Reset	Long press for 6 seconds to restore factory settings

L3 Function
IPv4	IPv4 VLAN Interface
	IPv4 Static Routes
	ARP
IPv6	IPv6 VLAN Interface
	IPv6 Static Routes
	IPv6 ND
RIP	V1/V2
OSPF	Router-ID
	Authentication
	V2
L2 Function
Port	Port Switch configuration
	Port Description configuration
	Port Speed configuration
	Port Duplex configuration
	Port Flow Control configuration
	Support 10G/2.5G
	Jumbo Frame, Up to 10K
	EEE
	Fiber Module(DDM)
Link Aggregation	Support load balance policy; Base on MAC and IP-MAC
	Static and Dynamic Group
	Support LACP
	Up to 8 groups
Storm Control	Boardcast suppression
	Unknown Multicast
	Unknown Unicast
Port Mirroring	One to one monitor
	Many to one monitor
	Ingress/Egress/Both
	Up to 4 session groups
Port Security	MAC Address Constraints
	Port Security MAC Address
	Protect/Restrict/Shutdown
Port Isolation	Support
Port Rate-limit	Support
Loopback Detection	Support
