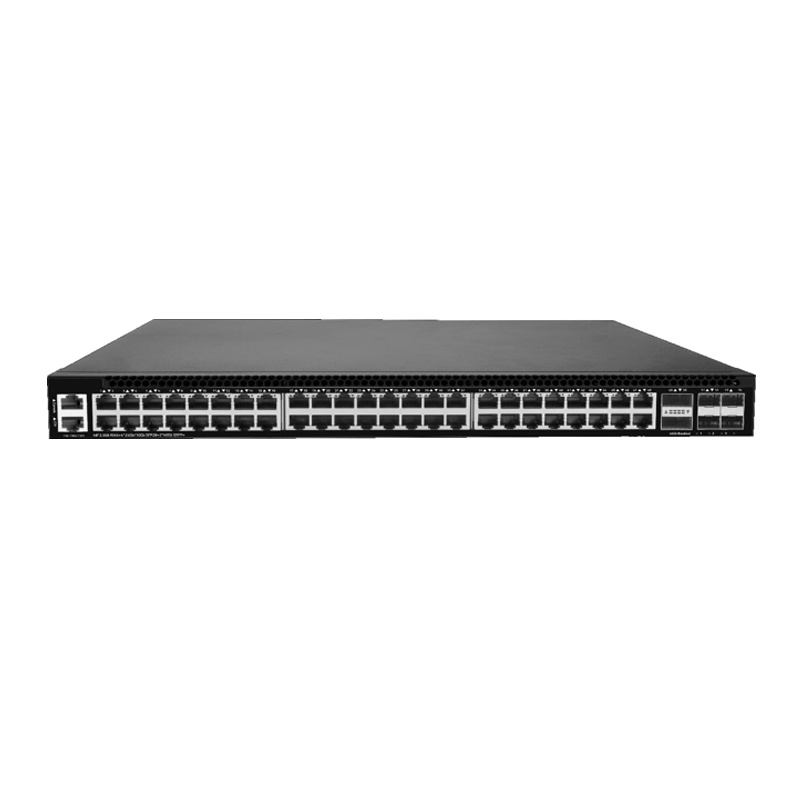

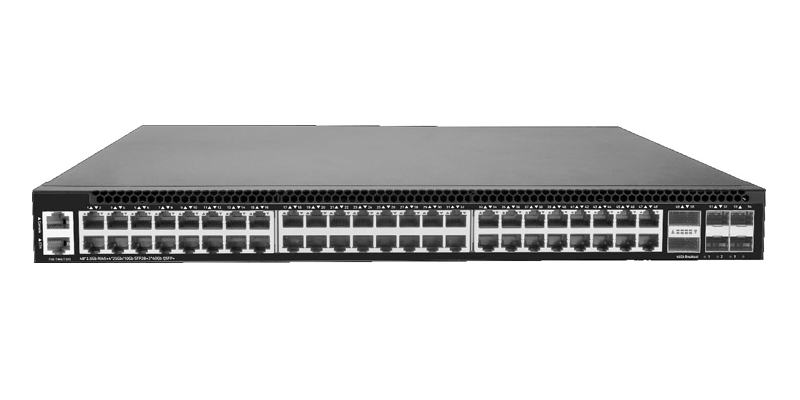

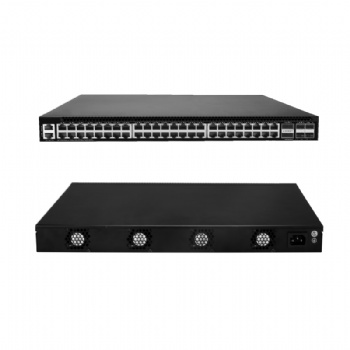

48-Ports 2.5G L3 Management Ethernet Switch

SST-MTG48E2S4Q, 48 Port 2.5G Ethernet switch, provides 48* 1/2.5GGbps RJ45 ports, 2*40G QSFP+ ports, and 4*25G/10G SFP28 ports. It supports IEEE 802.3ae, 802.3ab, 802.3bz, 802.3ba, and 802.3by standards. It can meet the needs of various applications such as next-generation enterprise networks, data centers, e-sports hotels/internet cafes, and video workstations

Main Features

1, 48*2.5G RJ45 ports+2*40G QSFP+ ports,4*25G/10G SFP28 ports.

2, Support IEEE 802.3ae, 802.3ab, 802.3bz, 802.3ba 802.3by Standard.

3, Flow control mode, IEEE802.3x standard for full duplex and Back pressure standard for half duplex.

4, Support loop alarm.

5, Supports MDI/MDIX automatic flipping and duplex/rate self-negotiation.

6, Adopting storage and forwarding mechanism, with internal integration of high capacity cache, all ports can achieve 2.5Gbps non-blocking line speed forwarding.

Data center:

Application scenarios for accessing small data centers.

Enterprise networking:

Suitable for the establishment of high-speed networks in industries such as finance,

government, railways, power, public security, transportation, education, etc.

Esports hotels/Internet cafes:

Suitable for wired access to esports hotels/internet cafes, high-speed computers.

High speed LAN:

LAN construction for video editing studios/workstations and other scenarios

Technical Specification
Model Name	48-Ports 2.5G L3 Management Ethernet Switch
Model	SST-MTG48E2S4Q
Port specifications	48* 2.5Gb RJ45 Ports 4* 25Gb/10Gb SFP28 Ports 2* 40Gb QSFP+ Ports
Management Port	1* RJ45 serial port 1* External RJ45 management port
Login IP	192.168.2.1
Web page	Support web page management
Power	1*96W built-in fixed power supply
Link(Link Light）	On: The link connection is normal Flashing: Data transmission is normal Off: Link not working
Fan	4 Built-In fans
Air duct	Front and rear air duct design
Flash	8GB EMMC (OS) 4MB SPI Flash (Boot)
System Memory	2GB
Input Voltage	Rated voltage range: 100~240V; 50/60Hz
Size	442mm290mm43.6mm
Weight	Net Weight: 4.23KG Gross Weight: 5.85KG
Packing Quantity	5 PCS
Packing List	Switch: 1 PCS,user manual: 1 PCS, certificate: 1 PCS, power cord: 1 PCS, Rack ear 1 pair
Environment	Working temperature: -10~50 ℃ Storage temperature: -40~70 ℃ Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Certification	Satisfy CCC/CE/RoHS Requirements
