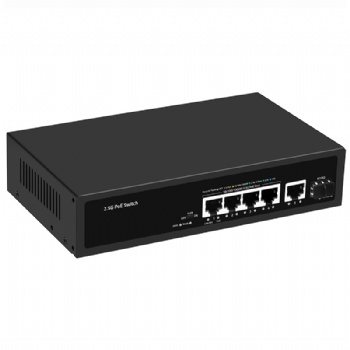

6 Port 10 Gigabit uplink 2.5G Ethernet POE switch, adopting a high-quality and high-speed network chip solution, this product thoroughly
solves the problem of high noise when deploying small switches in office environments through a fanless and silent design. This switch has
5 *100/1000/2500M POE ports and 1 10G SFP+ port, providing seamless connection for 100/1000/2500M Ethernet, making it easy to manage
and maintain. This product can be widely used in security network video monitoring, hotels, campuses, small and medium-sized enterprise
network engineering, and other occasions.
Main Features
1, 5*100/1000/2500M POE Port+1*10G SFP+ Port；
2, Support 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standard；
3, Ethernet Ports support10/100/1000/2500M self- adaptive；
4, Support PoE QoS Priority, priority ranges from 1 to 4, enabled by default；
5, Supports automatic port flipping (Auto MDI/MDIX)；
6, Panel indicator monitoring status help failure analysis；
7, Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex；
8, Support Surge protection: Common mode 4KV; Differential mode 2KV;ESD: Air 8KV, Contact 6KV.
Technical Specification
|
I/O Interface |
|
|
Power |
AC100-240V |
|
Ethernet |
5*100/1000/2500M POE port 1*10G SFP+ port |
|
Performance |
|
|
Bandwidth |
45Gbps |
|
Packet Forward Rate |
33.48Mpps |
|
MAC Address Table |
4K |
|
Jumbo Frame |
10Kbytes |
|
Forwarding Mode |
Storage & forward |
|
MTBF |
100000 Hours |
|
Standard |
|
|
Network Protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Gigabit Ethernet) IEEE802.3x (Flow Control) |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge) |
|
Network medium |
10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) |
|
Optical Medium |
Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
|
Certification |
|
|
Safety Certificate |
CE, FCC, RoHS |
|
Environment Standard |
|
|
Working Environment |
Working temperature: -10~50°C Storage temperature: -40~70°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing |
|
Power Voltage |

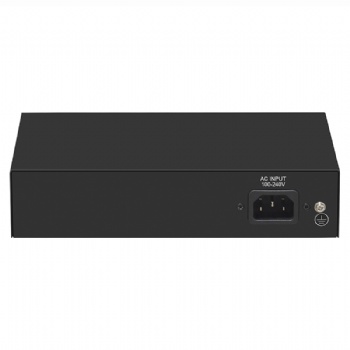

Input voltage : AC 100-240 V 50/60HZ Supply power:DC 52V 1.25A |
|
Power |
Product power: maximum 5W POE power: maximum 60W |
|

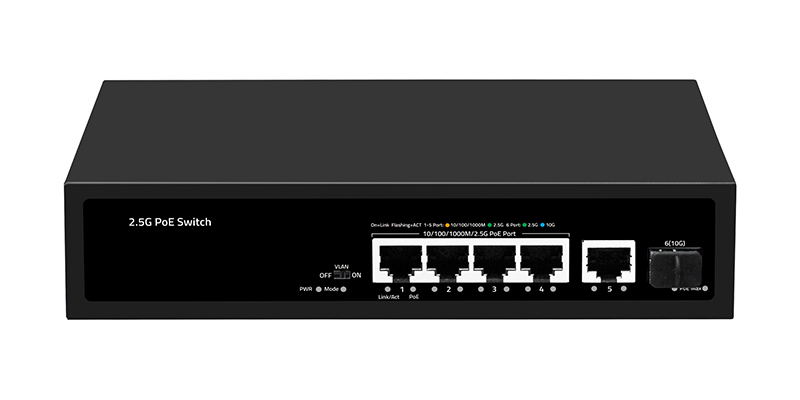

Function Indicator |
|
|
PWR(Power) |
On: Powered on Off: Powered off |
|
1-5 Port Green Light |
On: 2.5G Link normal Off: Link blocked Flashing: Data transmitting |
|
1-5 port Yellow Light |
On: 10/100/1000M Link normal Off: Link blocked Flashing: Data transmitting |
|
6 Port Green Light/ Blue Light |
Blue on:10G link Green on: 1000/2500M link Off: Link blocked Flashing: Data transmitting |
|
1-4 PoE Light |
On:PoE power supply Off:P0E not powered |
|
PoE Max Power Light |
Off: indicates PoE power usage is less than 90% Flashing: indicates PoE power usage of 90% ≤ P ≤ 95% On: indicates that PoE power is used at 95%<P<100% |
|
Physical Specification |
|
|
Structure Size
|
Product Dimensions: 200*118*44mm Package Dimensions: 245*190*60mm Product N.W: 0.63KG Product G.W: 0.93KG |
|
Packing Info |
Carton Dimensions: 520*320*400mm Packing Quantity: 20 set Packing Weight: 19.6KG |
|
Packaging List |
Switch 1 pc; Power cord 1 pc; User manual 1 pc; Certification 1 pc |
|
Order Info |
|
|
Model Number |
SST-PTG4E1E1S |

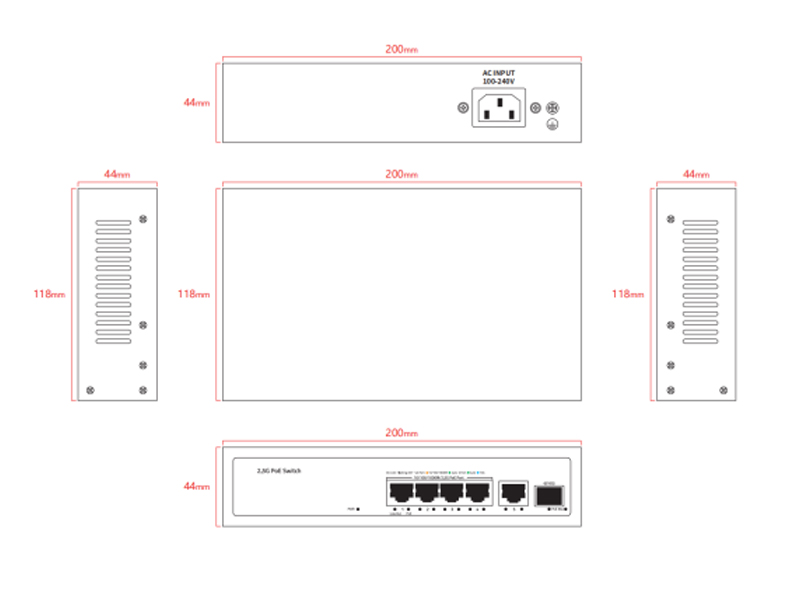

Product Structure
