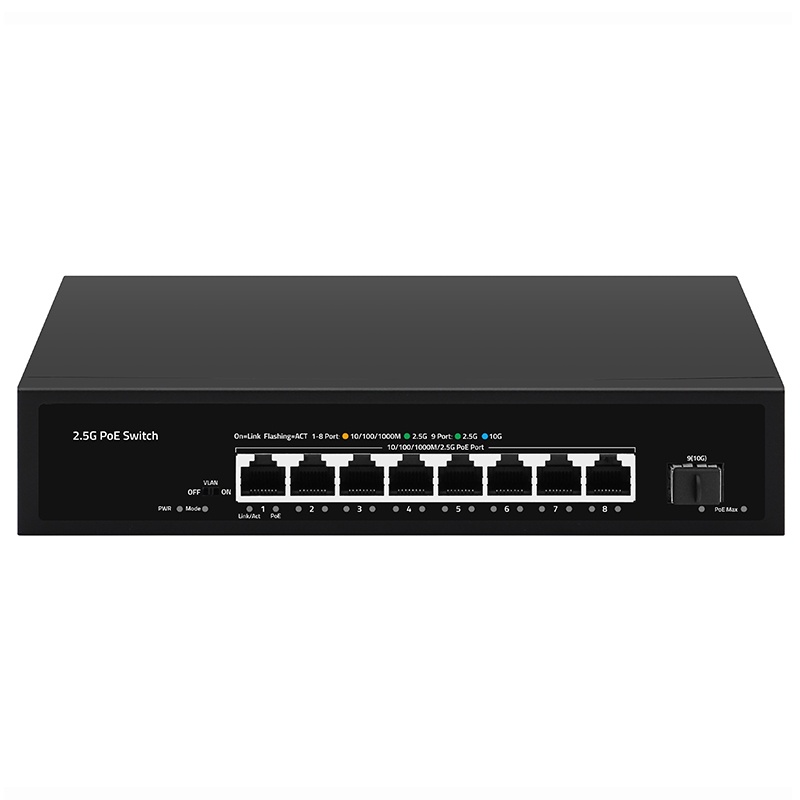

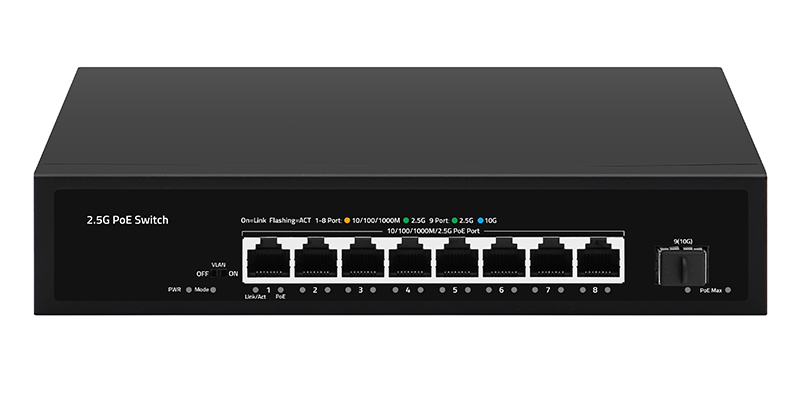

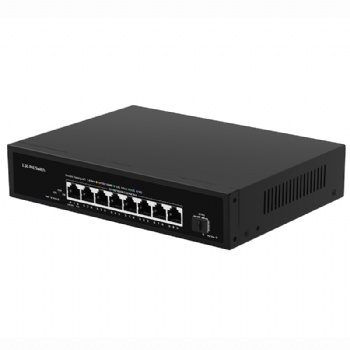

9 Port 10 Gigabit Uplink 2.5G Ethernet POE Switch

9 Port 10 Gigabit uplink 2.5G POE switch,Adopting a high-quality and high-speed network chip solution, this product

thoroughly solves the problem of high noise when deploying small switches in office environments through a fanless and

silent design. This switch has 8* 100/1000/2500M POE ports and 1*10G SFP+ port, providing seamless connection for

100/1000/2500M Ethernet, making it easy to manage and maintain. This product can be widely used in security network

video monitoring, hotels, campuses, small and medium-sized enterprise network engineering, and other occasions.

Main Features

1, 8*100/1000/2500M POE Port+1*10G SFP Port；

2, Support 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standard；

3, Ethernet Ports support 100/1000/2500M self- adaptive；

4, Support PoE QoS Priority，priority ranges from 1 to 8. Enabled by default；

5, Supports automatic port flipping（Auto MDI/MDIX）；

6, Panel indicator monitoring status and help failure analysis；

7, Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex；

8, Support Surge protection：Common mode 4KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV.

Technical Specification

I/O Interface

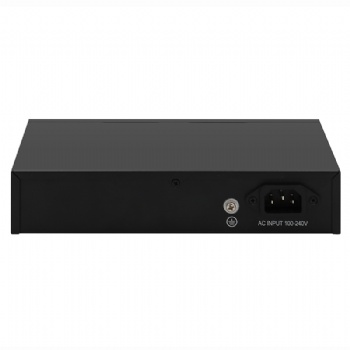

Power	AC100-240V
Ethernet	8100/1000/2500M POE port 110G SFP port
Performance
Bandwidth	60Gbps
Packet Forward Rate	44.64Mpps
MAC Address	4K
Jumbo Frame	10Kbytes
Forwarding Mode	Storage & forward
MTBF	100000 Hours
Standard
Network Protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet） IEEE 802.3z (Gigabit Ethernet） IEEE 802.3ae (10G Gigabit Ethernet） IEEE802.3x (Flow Control)
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), IEN61000-4-5 (Surge）
Network medium	10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m) 100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m) 1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
Optical Medium	Multimode optical fiber：50/125, 62.5/125, 100/140um Single-mode optical fiber：8/125, 8.7/125, 9/125, 10/125um
Certification
Safety Certificate	CE, FCC, RoHS
Environment Standard
Working Environment	Working temperature: -10~50°C Storage temperature: -40~70°C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Power Voltage	Input voltage : AC 100-240 V 50/60HZ Supply power：DC 52V 2.3A
Power	Product power：maximum 10W POE power：maximum 90W
Function Indicator
PWR(Power)	On: Powered on Off: Powered off
1-8 Port Green Light	On: 2.5G Link normal Off: Link blocked Flashing: Data transmitting
1-8 Port Yellow Light	On: 10/100/1000M Link normal Off: Link blocked Flashing: Data transmitting
9 Port Green Light Blue Light	Blue on：10G link Green on：1000/2500M link Off：Link blocked Flashing: Data transmitting
1-8 PoE Light	On：PoE power supply Off：PoE not powered
POE Max Power light	Off: indicates POE power usage is less than 90% Flashing: indicates POE power usage of 90% ≤ P ≤ 95% On: indicates that POE power is used at 95%<P<100%
Physical Specification

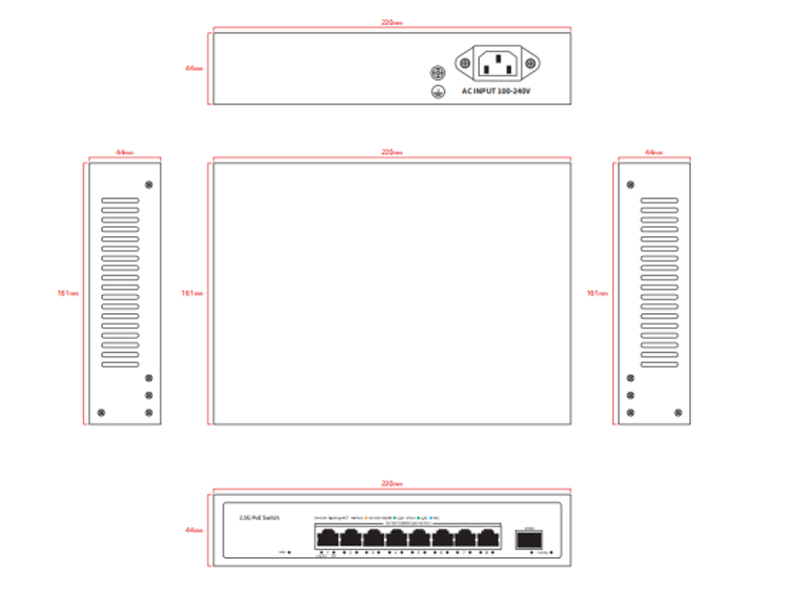

Structure Size	Product Dimensions: 22016144mm Package Dimensions: 31521585mm Product N.W: 0.88KG Product G.W: 1.38KG
Packing Info	Carton Dimensions: 445445335mm Packing Quantity: 10 set Packing Weight: 14.8KG
Packaging List	Switch 1 pc; Power cord 1 pc; User manual 1 pc; Certification 1 pc
Order Info
Model Number	SST-PTG8E1S
