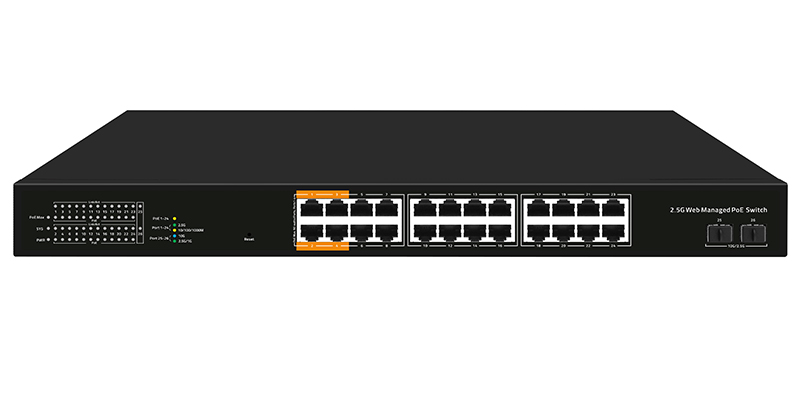

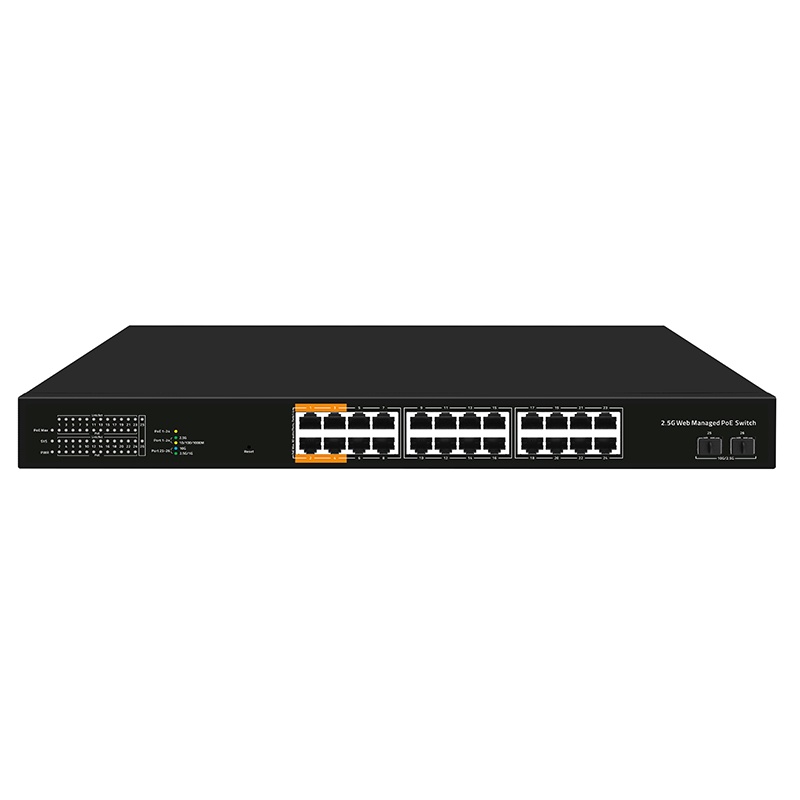

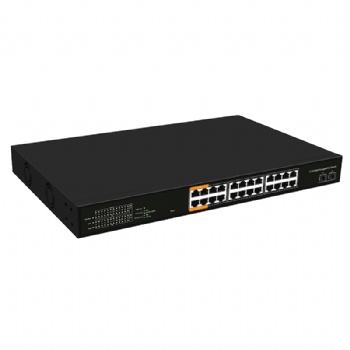

24-Port 2.5G and 2-Port 10G SFP+ Web Managed PoE Switch
|
Description |
Specification |
|
Model |
SST-WPTG24E2S |
|
Interface |
24*2.5Gbps PoE ports 2*10Gbps SFP+ ports |
|
Port Standard |
IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) IEEE 802.3x: Flow Control IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) IEEE802.3 bz (2.5G Ethernet standard) |
|
Switching Bandwidth |
160Gbps |
|
Packet Forwarding Rate |
119.04Mpps |
|
Packet Buffer |
12Mbit |
|
MAC Address Table |
16K |
|
Jumbo Frame |
Support |
|
VLAN |
VLAN range 1-4094 maximum active VLAN is 4K |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3bt (90W) |
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Ports |
Ports 1-4 support BT90W power supply Ports 5-24 PoE power output <30W |
|
PoE Power Budget |
513W |
|
Power Supply |
AC 100-240V 50/60Hz DC 54V 9.5A&12V 4A |
|
Mainboard Power Consumption |
35.2W |
|
Structure Information |

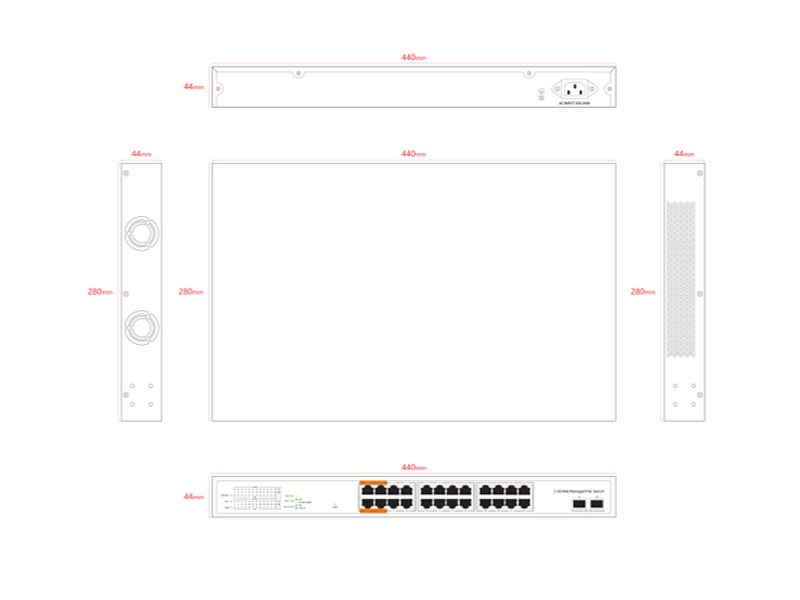

Product Dimensions: 440*280*44mm Packaging Dimensions: 500*365*85mm Product Net Weight: 4.21KG Product Gross Weight: 5.35KG |
|
Package Information |
Carton Dimensions: 520*445*385mm Packing Quantity: 5PCS Packing Weight: 27.75KG |
|
Package Contents |
Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounting kit 1 pair |
|
Fan Quantity |
2 |
|
Installation |
Rack-mounting |
|
Surge Protection |
Port Surge: Common mode 4KV, Differential mode 2KV (Class B) Electrostatic ESD: Air 8KV, Contact 6KV (Class B) |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-40~70°C |
|
Operation Humidity |
10%~90%, non condensing |
|
Storage Humidity |
5%~95%, non condensing |
|
PWR Green LED |
On: Powered on Off: Powered off |
|
SYS Green LED |
Flashing: System startup in progress On: The system is running normally |
|
Ports 1-24 Link/Act |
Green LED on: 2.5Gbps Link normal Yellow LED on: 1Gbps Link normal Off: Link blocked Flashing: Data transmitting |
|
PoE Yellow LED |
On: PoE powered off Off: PoE powered off |
|
Reset |
Long press for 6 seconds to restore factory settings |
|
Ports 25-26 |
Blue LED on: 10Gbps Link normal Green LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting |
|
PoE Max Green LED |
Off: Indicate that the PoE power usage is less than 90% Flashing(Once per second): Indicate that the PoE power usage of 90% ≤ P ≤ 95% On: Indicate that the PoE power is used at 95%<P<100% |
|
L2 Function |
|
|
Port |
Port Switch configuration |
|
Port Speed configuration |
|
|
Port Duplex configuration |
|
|
Port Flow Control configuration |
|
|
EEE |
|
|
Jumbo Frame |
|
|
Link Aggregation |
Supports load balance policy; Base on MAC and IP-MAC |
|
Static and Dynamic Group |
|
|
LACP |
|
|
Up to 8 groups |
|
|
Storm Control |
Boardcast suppression |
|
Unknown Multicast |
|
|
Unknown Unicast |
|
|
Port Mirroring |
One to one monitor |
|
Many to one monitor |
|
|
Ingress/Egress/Both |
|
|
Up to 4 session groups |
|
|
Port Security |
MAC Address Constraints |
|
Protect/Restrict/Shutdown |
|
|
Port Isolation |
Support |
|
Port Rate-limit |
Support |
|
VLAN |
Access/Trunk/Hybrid |
|
VLAN Tunnel (Q-in-Q Tunnel) |
|
|
VLAN range 1-4094, maximum active VLAN is 4K |
|
|
MAC Address |
Filtering MAC Address |
|
Static MAC address |
|
|
Spanning Tree Protocol |
STP/RSTP/MSTP |
|
BPDU Filter |
|
|
BPDU Guard |
|
|
Edge Port |
|
|
LLDP |
LLDP |
|
LLDP MED |
|
|
Multicast |
IGMP Snooping |
|
Router Port |
|
|
Static IGMP Join |
|
|
IGMP V1/V2 |
|
|
QoS |
Traffic classification, Supporting SP and WRR scheduling |
|
Port Priority |
|
|
802.1P Priority |
|
|
IP DSCP Priority |
|
|
Priority Remarking |
|
|
Supports up to 8 queues per port |
|
|
ERPS |
Main Ring |
|
PoE |
|
|
PoE Configuration |
PoE used power |
|
PoE Type/Level/Power/Voltage/Current |
|
|
PoE Switch |
|
|
PoE power AF/AT adaptation |
|
|
IEEE 802.3bt,compatible with IEEE 802.3af/802.3at PoE |
|
|
Services |
|
|
Access Protocol |
HTTP |
|
Session Timeout |
|
|
Security |
DHCP Snooping |
|
Diagnostics |
|
|
Copper Test |
Support |
|
Ping |
Support |
|
Equipment Management |
|
|
Manager Access |
HTTP |
|
SNMP |
|
|
Time Synchronization |
SNTP |
|
Manual Time |
|
|
Manager IP |
Static Address |
|
Manager VLAN |
|
|
DNS |
|
|
DHCP Client |
|
|
SNMP |
V1/V2C/V3 |
|
V3 User |
|
|
Group |
|
|
Community |
|
|
Trap Host |
|
|
SNMP MIB |
RFC 1213 MIB-II |
|
RFC 1643 Ethernet MIB |
|
|
RFC 2863 Interface MIB |
|
|
User Management |
Support |
|
Firmware Management |
Firmware upgrade |
|
Configuration Management |
Upload/Backup Configuration |
|
Save |
Support |
|
Restart |
Support |
|
Factory Defaults |
Support |
|
Standard Compliance |
|
|
IEEE 802.3x flow control and back pressure |
|
|
IEEE 802.3ad port trunk with LACP |
|
|
IEEE 802.1D Spanning Tree Protocol |
|
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
IEEE 802.1p Class of Service |
|
|
IEEE 802.1Q VLAN tagging |
|
|
RFC 768 UDP |
|
|
RFC 793 TFTP |
|
|
RFC 791 IP |
|
|
RFC 792 ICMP |
|
|
RFC 2068 HTTP |
|
|
RFC 1112 IGMP v1 |
|
|
RFC 2236 IGMP v2 |
|
|
RFC 3376 IGMP v3 |
|
