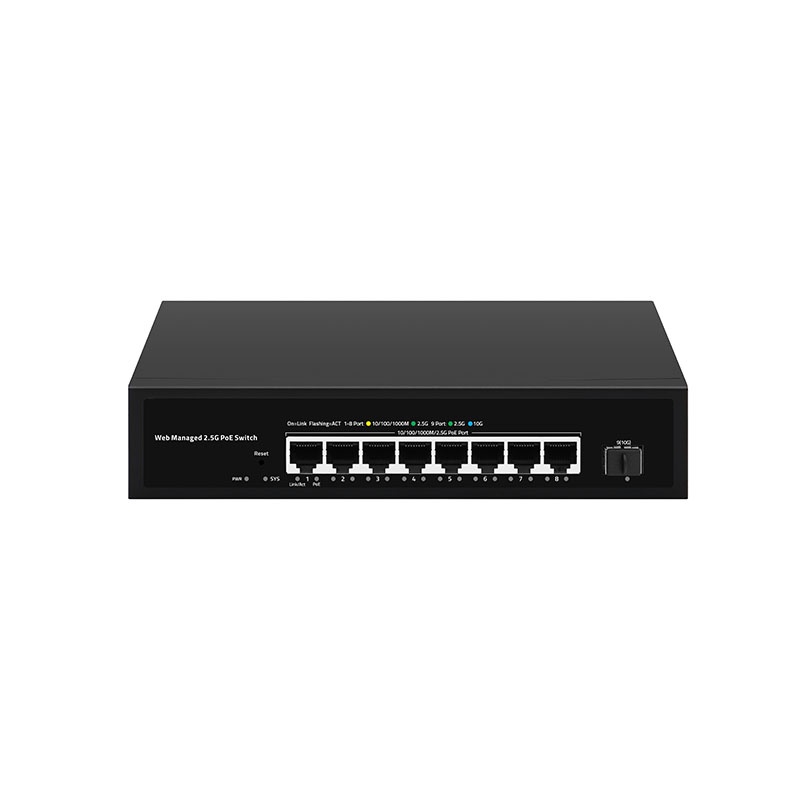

8-Port 2.5G and 1-Port 10G SFP+ Web Managed PoE Switch

1, 8*2.5Gbps PoE ports and 1*10Gbps SFP+ port

2, Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE802.3x standards

3, Ethernet Ports support 10M/100M/1G/2.5Gbps self-adaptive

4, Support PoE priority, default enabled in order from 1 to 8 ports

5, Support automatic port flipping (Auto MDI/MDIX)

6, The panel indicator LEDs will monitor the working status and assist in fault analysis

7, Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex

Description	Specification
Packing Information	Carton Dimensions: 445445335mm Packing Quantity: 10PCS Packing Weight: 13.3KG
Package Contents	Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Fan Quantity	0
Installation	Desktop
Surge Protection	Port Surge: Common mode 4KV, Differential mode 2KV (Class B) Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing

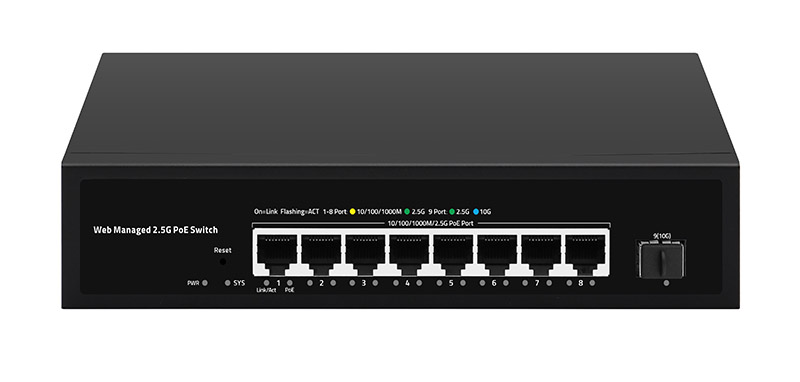

PWR Green LED	On: Powered on Off: Powered off
SYS Green LED	On: The system is normal Flashing: System startup in progress
Ports 1-8	Green LED on: 2.5Gbps Link normal Yellow LED on: 1Gbps Link normal Off: Link blocked Flashing: Data transmitting
PoE Yellow LED	On: PoE powered on Off: PoE powered off
Port 9	Blue LED on: 10Gbps Link normal Green LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
Reset	Long press for 6 seconds to restore factory settings

Packing Information	Carton Dimensions: 445445335mm Packing Quantity: 10PCS Packing Weight: 13.3KG
Package Contents	Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Fan Quantity	0
Installation	Desktop
Surge Protection	Port Surge: Common mode 4KV, Differential mode 2KV (Class B) Electrostatic ESD: Air 8KV, Contact 6KV (Class C)
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Green LED	On: Powered on Off: Powered off
SYS Green LED	On: The system is normal Flashing: System startup in progress
Ports 1-8	Green LED on: 2.5Gbps Link normal Yellow LED on: 1Gbps Link normal Off: Link blocked Flashing: Data transmitting
PoE Yellow LED	On: PoE powered on Off: PoE powered off
Port 9	Blue LED on: 10Gbps Link normal Green LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
Reset	Long press for 6 seconds to restore factory settings

L2 Function
Port	Port Switch configuration
	Port Speed configuration
	Port Duplex configuration
	Port Flow Control configuration
	Jumbo Frame
Link Aggregation	Max. 4 members per group
	Static Group
	LACP
	Up to 2 groups
Storm Control	Boardcast suppression
	Multicast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	Support
Loopback Detection	Support
Port Isolation	Support
Port Rate-limit	Support
VLAN	Access/Trunk/Hybrid
	Port VLAN
	Congurable VID from 1 - 4094;Max. 31 static VLAN groups
MAC Address	Dynamic MAC Address
	Address Lookup
	Static MAC address
Spanning Tree Protocol	STP/RSTP
Spanning Tree Protocol	Edge Port

Multicast	IGMP Snooping
Multicast	IGMP V1/V2
QoS	Traffic classification, Supporting SP and WRR scheduling
	Port Priority
	Supports up to 8 queues per port
PoE Configuration	PoE used power
	PoE Type/Level/Power/Voltage/Current
	PoE Switch
	PoE power AF/AT adaptation
Services
Access Protocol	HTTP
Diagnostics
Port Statistics	Support
Equipment Management
Manager Access	HTTP

Manager IP	Static Address
	DHCP Client
User Management	Support
Firmware Management	Firmware upgrade
Configuration Management	Upload/Backup Configuration
Save	Support
Restart	Support
Factory Defaults	Support
Standard Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
