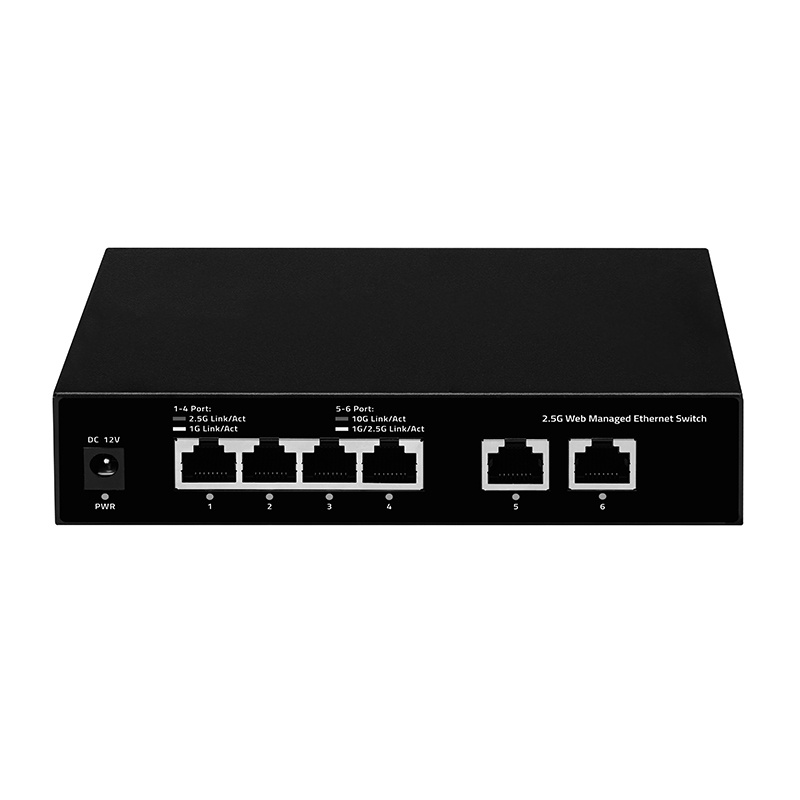

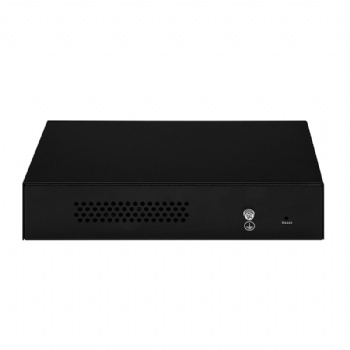

4-Port 2.5G and 2-Port 10G Web Managed Ethernet Switch

1, 4*2.5Gbps RJ45 ports and 2*10Gbps RJ45 ports

2, Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE802.3ae, and IEEE 802.3x standards

3, Ethernet Ports support 100M/1G/2.5G/5G/10Gbps self-adaptive

4, Support automatic port flipping (Auto MDI/MDIX)

5, The panel indicator LEDs will monitor the working status and assist in fault analysis

6, Flow control method, full duplex adopts IEEE802.3x standard, and half duplex adopts Backpressure standard

7, Support QoS data priority

8, Support web management

Description	Specification
Model	SST-WTG4E2E
Interface	42.5Gbps RJ45 ports 210Gbps RJ45 ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3bz (2.5G Ethernet) IEEE 802.3ae (10Gbps Ethernet) IEEE802.3x (Flow Control)
Switching Bandwidth	60Gbps
Packet Forwarding Rate	44.64Mpps
Packet Buffer	8Mbit
MAC Address Table	4K
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Jumbo Frame	10K
Transmission Method	Store and Forward
Surge Protection	Port Surge: Common mode 4KV, Differential mode 1KV(Class B) Electrostatic ESD: Air 8KV, Contact 6KV(Class C)
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
Power Supply	AC 100-240V 50/60Hz DC 12V1A
Mainboard Power Consumption	9.84W

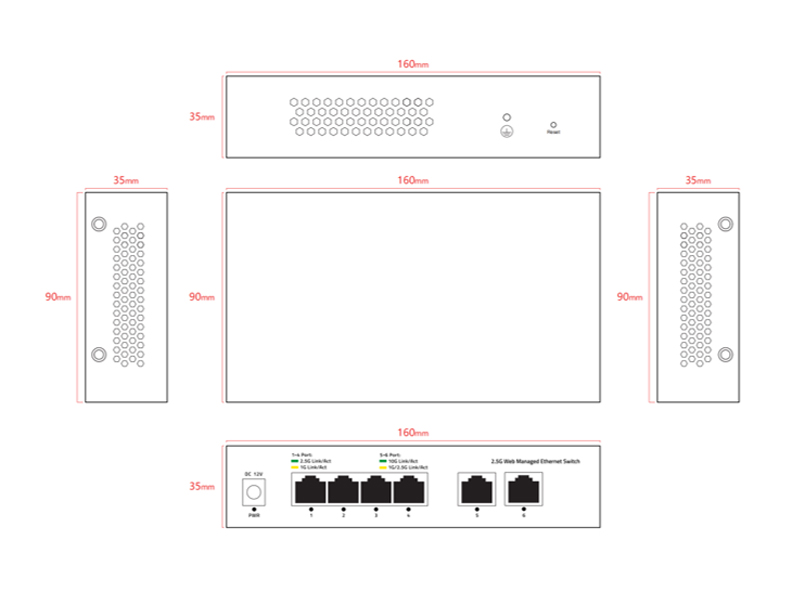

Structure Information	Product Dimensions: 1609035mm Packaging Dimensions: 17512073mm Product Net Weight: 0.33KG Product Gross Weight: 0.47KG
Packing Information	Carton Dimensions: 520385205mm Packing Quantity: 20PCS Packing Weight: 10.08KG

Package Contents	Switch 1pcs, AC Adapter 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Fan Quantity	0
Installation	Desktop

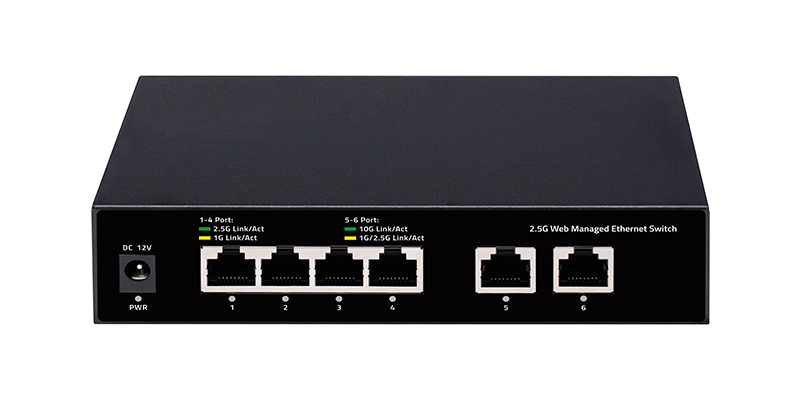

PWR Green LED	On: Powered on Off: Powered off
Ports 1-4	Green LED on: 2.5Gbps Link normal Yellow LED on: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting
Ports 5-6	Green LED on: 10Gbps Link normal Yellow LED on: 1G/2.5/5Gbps Link normal Off: Link blocked Flashing: Data transmitting

L2 Function
Port	Port Switch configuration
	Port Speed configuration
	Port Duplex configuration
	Port Flow Control configuration
	Jumbo Frame
Link Aggregation	Max. 4 members per group
	Static Group
	LACP
	Up to 2 groups
Storm Control	Boardcast suppression
	Multicast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	Support
Loopback Detection	Support
Port Isolation	Support
Port Rate-limit	Support
Loopback Detection	Support
VLAN	Access/Trunk/Hybrid
VLAN	Congurable VID from 1 - 4094;Max. 31 static VLAN groups
MAC Address	Dynamic MAC Address
MAC Address	Static MAC address
Spanning Tree Protocol	STP/RSTP
Spanning Tree Protocol	Edge Port

Multicast	IGMP Snooping
	Router Port
	Static IGMP Join
	IGMP V1/V2
QoS	Traffic classification, Supporting SP and WRR scheduling
	Port Priority
	Support up to 8 queues per port
Services
Access Protocol	HTTP
Diagnostics
Port Statistics	Support
Equipment Management
Manager Access	HTTP

Manager IP	Static Address
	DHCP Client
User Management	Support
Firmware Management	Firmware upgrade
Configuration Management	Upload/Backup Configuration
Save	Support
Restart	Support
Factory Defaults	Support
Standard Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
