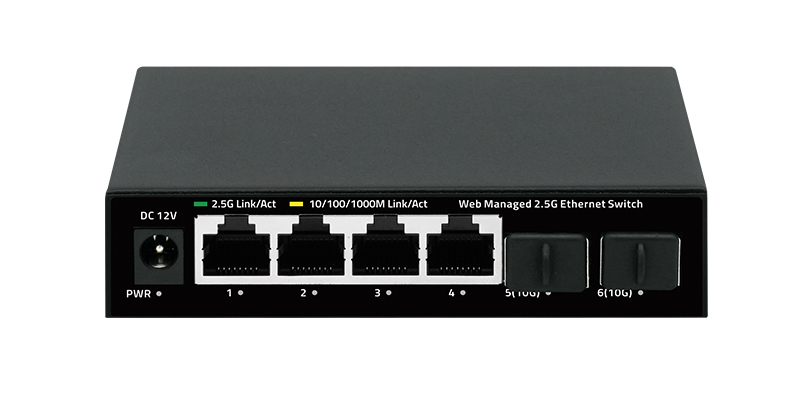

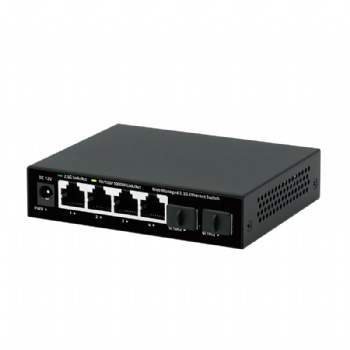

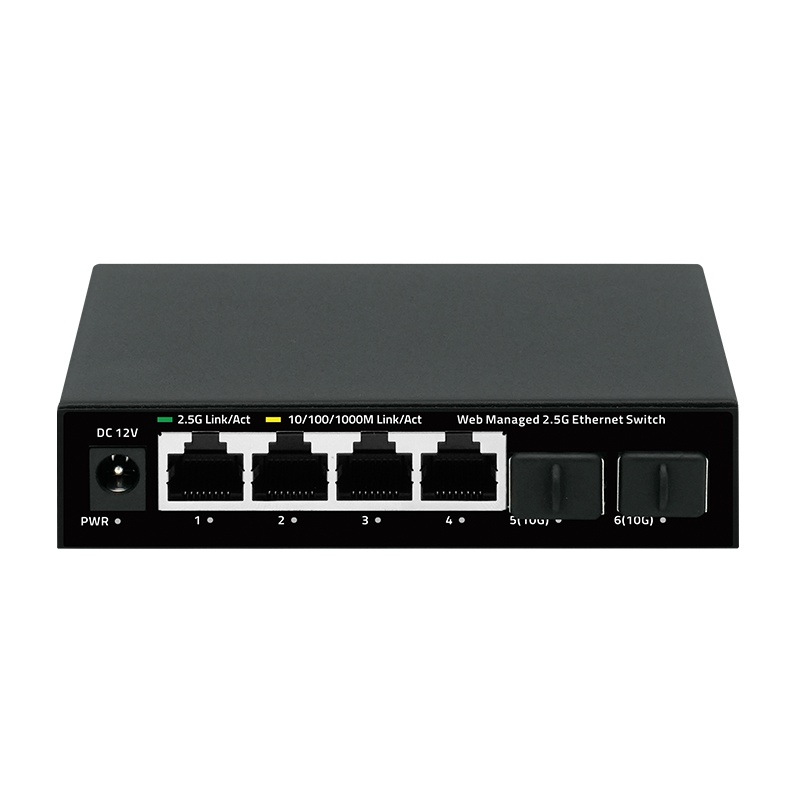

4-Port 2.5G and 2-Port 10G SFP+ Web Managed Switch

1, 4*2.5Gbps RJ45 ports+2*10Gbps SFP+ ports

2, Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z,IEEE802.3ae, and IEEE 802.3x standards

3, Ethernet Ports support 10M/100M/1G/2.5Gbps self-adaptive

4, Support automatic port flipping (Auto MDI/MDIX)

5, The panel indicator LEDs will monitor the working status and assist in fault analysis

6, Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex

7, Support QoS data priority

Description	Specification
Model	SST-WTG4E2S
Interface	42.5Gbps RJ45 ports 210Gbps SFP+ ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE802.3z (Gigabit Ethernet Fiber Standard) IEEE802.3bz (2.5G Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control)
Switching Bandwidth	60Gbps
Packet Forwarding Rate	44.64Mpps
Packet Buffer	8Mbit
MAC Address Table	4K
Jumbo Frame	16K
VLAN	VLAN range 1-4094, maximum active VLAN is 31
Transmission Method	Store and Forward
Power Supply	AC 100-240V 50/60Hz DC 12V 1A
Mainboard Power Consumption	5.34W

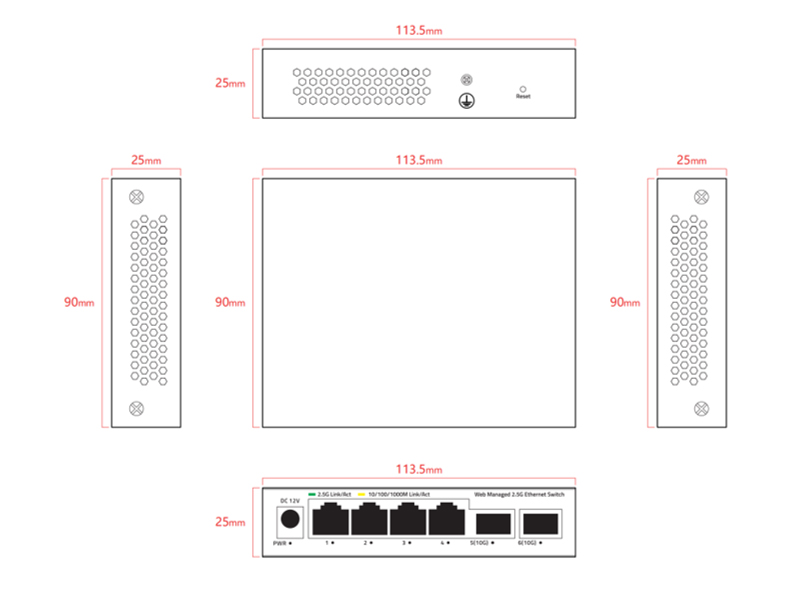

Structure Information	Product Dimensions: 113.59025mm Packaging Dimensions: 17512063mm Product Net Weight: 0.24KG Product Gross Weight: 0.37KG

Packing Information	Carton Dimensions: 520335380mm Packing Quantity: 40PCS Packing Weight: 15.8KG
Package Contents	Switch 1pcs, Ac adapter 1pcs, Manual 1pcs, Certificate of Inspection 1pcs
Fan Quantity	0
Installation	Desktop
Surge Protection	Port Surge: Common mode 4KV, Differential mode 2KV Electrostatic ESD: Air 8KV, Contact 6KV
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Green LED	On: Powered on Off: Powered off
Ports 1-4	Green LED on: 2.5Gbps Link normal Yellow LED on: 10/100/1000Mbps Link normal Off: Link blocked Flashing: Data transmitting
Ports 5-6	Blue LED on: 10Gbps Link normal Green LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting

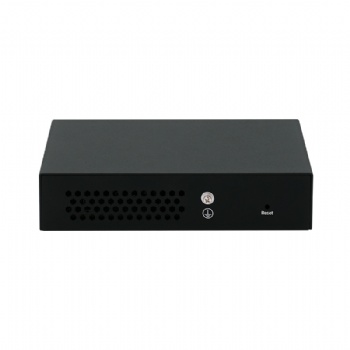

Reset	Long press for 6 seconds to restore factory settings

L2 Function
Port	Port Switch configuration
	Port Speed configuration
	Port Duplex configuration
	Port Flow Control configuration
	EEE
	Jumbo Frame
Link Aggregation	Max. 4 members per group
	Static Group
	LACP
	Up to 2 groups
Storm Control	Boardcast suppression
	Multicast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	Support
Port Security	MAC Address Constraints
Port Isolation	Support
Port Rate-limit	Support
Loopback Detection	Support
VLAN	Access/Trunk/Hybrid
VLAN	Congurable VID from 1 - 4094;Max. 31 static VLAN groups
MAC Address	Dynamic MAC Address
MAC Address	Static MAC address
Spanning Tree Protocol	STP/RSTP
Spanning Tree Protocol	Edge Port

Multicast	IGMP Snooping
	Router Port
	Static IGMP Join
	IGMP V1/V2
QoS	Traffic classification, Supporting SP and WRR scheduling
	Port Priority
	Support up to 8 queues per port
Services
Access Protocol	HTTP
Diagnostics
Port Statistics	Support
Equipment Management
Manager Access	HTTP

Manager IP	Static Address
	DHCP Client
User Management	Support
Firmware Management	Firmware upgrade
Configuration Management	Upload/Backup Configuration
Save	Support
Restart	Support
Factory Defaults	Support
Standard Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
