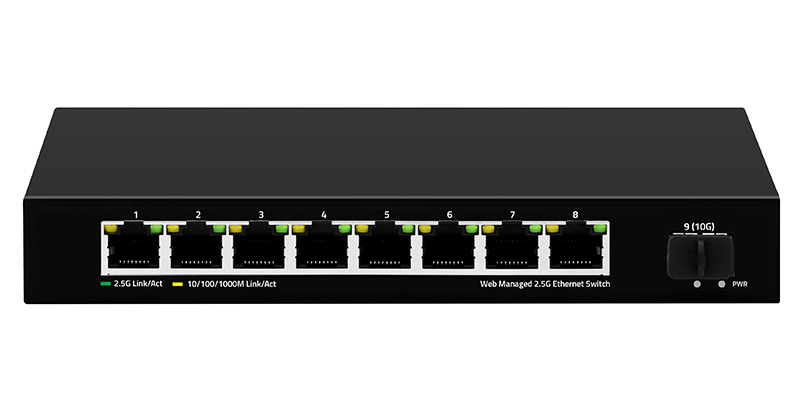

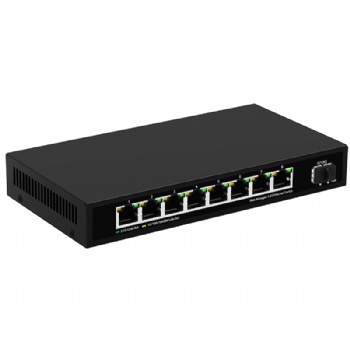

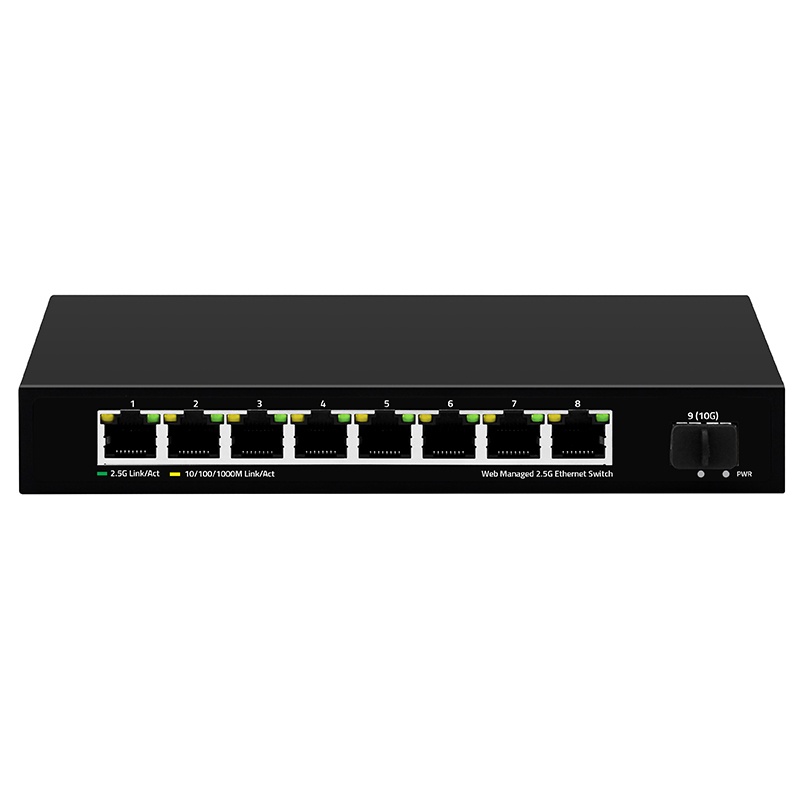

9 Port 10G uplink 2.5G Web Managed Ethernet switch

The 9 Port 10G uplink 2.5G light network management Ethernet switch, adopts the network chip solution of high quality and high speed. The product is designed
to be fan-free and quiet, which completely solves the problem of loud noise of small switches deployed in the office environment. The switch has 8* 100/1000/2500M RJ45
ports and 1* 10G SFP+ port, providing seamless connection to 100/1000/2500M Ethernet for easy management and maintenance. The switch can be widely used in security
network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

Main Feature

1, 8* 100/1000/2500M RJ45 port +1*10G SFP+ ports;

2, Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x；

3, Ethernet port support 100/1000/2500M self-adaptive;

4, Supports automatic port rollover(Auto MDI/MDIX);

5, Panel indicators monitor working status and assist in fault analysis;

6, Support QoS data priority;

7, Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard;

8, Support Surge protection: Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV.

Technical Parameter

I/O Interface
Model No.	SST-WTG8E1S
Power	DC12V 2A
Ethernet	8100/1000/2500M RJ45 ports 110G SFP+ ports
Performance
Bandwidth	60Gbps
Packet forwarding rate	44.64Mpps
Package cache	8Mbit
VLAN	4096
MAC address table	4K
Jumbo frame	10Kbytes
Forwarding mode	Store forward
MTBF	100000 Hour
Network parameter
Network protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz(5G Ethernet) IEEE 802.3z(Gigabit Ethernet) IEEE 802.3ae(10G Ethernet) IEEE802.3x (Flow control)
Industry standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5(Surge)
Network medium	10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or higher UTP/STP(≤100m) 1000Base-TX: Cat5 or higher UTP/STP(≤100 M)
SFP medium	Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety certification	CE, FCC, RoHS
Environmental standard
Working environment	Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~95%, no condensation
Functional indication
PWR(Power indicator)	On: Powered on Off: Powered off
SYS	Flashing: System startup Lighting: System Running
1-8 Port	Green On: 2.5G Link connect normal Yellow On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting
9 Port Green Light	On: 10G Link connect normal Off: Link off Flashing: data transmitting
Reset	Long press for 6 seconds to Factory reset
Physical specification

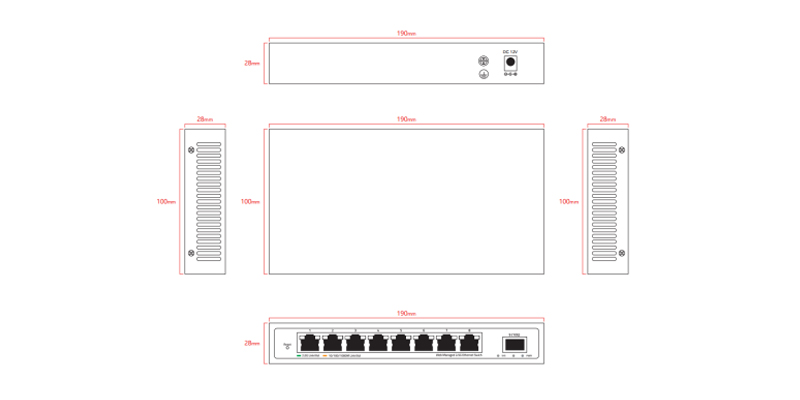

Structural dimension	Product size: 19010028mm Package size: 24519060mm Product weight: 0.49KG Packing weight: 0.71KG
Packing information	Outer box size: 520320400mm Packing quantity: 20 pcs Packing weight: 15.2KG
Operating voltage	Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V2A
Power	Maximum 24W
Packing list	Switch 1pcs, Specification 1pcs, Certificate of qualification 1pcs, Power adapter 1pcs
