deployed in the office environment through the fanless silent design. This switch has 5* 100/1000/2500M RJ45 ports and 1* 10G SFP port, providing seamless connection to
100/1000/2500M Ethernet for easy management and maintenance. This switch can be widely used in security network video surveillance, hotels, campuses, and network engineering
of small and medium-sized enterprises.
Main Features
1, 5* 100/1000/2500M RJ45 ports+1* 10G SFP port;
2, Comply with IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x;
3, Ethernet ports support 100/1000/2500M self-adaptive;
4, Support port Auto MDI/MDIX;
5, Panel indicator lights monitor working status and help failure analysis;
6, Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Back pressure standard;
7, Support surge protection: common mode 6KV; ESD Air 8KV, contact 6KV.
Technical Specification
|
I/O Interface |
|
|
Power |
DC12V 1A |
|
Ethernet |
5*100/1000/2500MRJ45 Ports 1*10G SFP Port |
|
Performance |
|
|
Bandwidth |
45Gbps |
|
Pack forward rate |
33.48Mpps |
|
VLAN |
4096 |
|
MAC address |
4K |
|
Jumbo Frame |
10Kbytes |
|
Transfer mode |
Storage & forward |
|
MTBF |
100000 Hours |
|
Standard |
|
|
Network protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) |
|
Industry standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5(Surge) |
|
Network Medium |
10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m) |
|
Optical Medium |
multi mode: 50/125, 62.5/125, 100/140um Single mode: 8/125, 8.7/125, 9/125, 10/125um |
|
Certificate |
|
|
Safety certificate |
CE,FCC,RoHS |
|
Environment standard |
|
|
Working environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Power voltage |
Adapter input voltage: AC 100-240 V switch input voltage: DC 12V1A |
|
Power |
Maximum 12W |
|

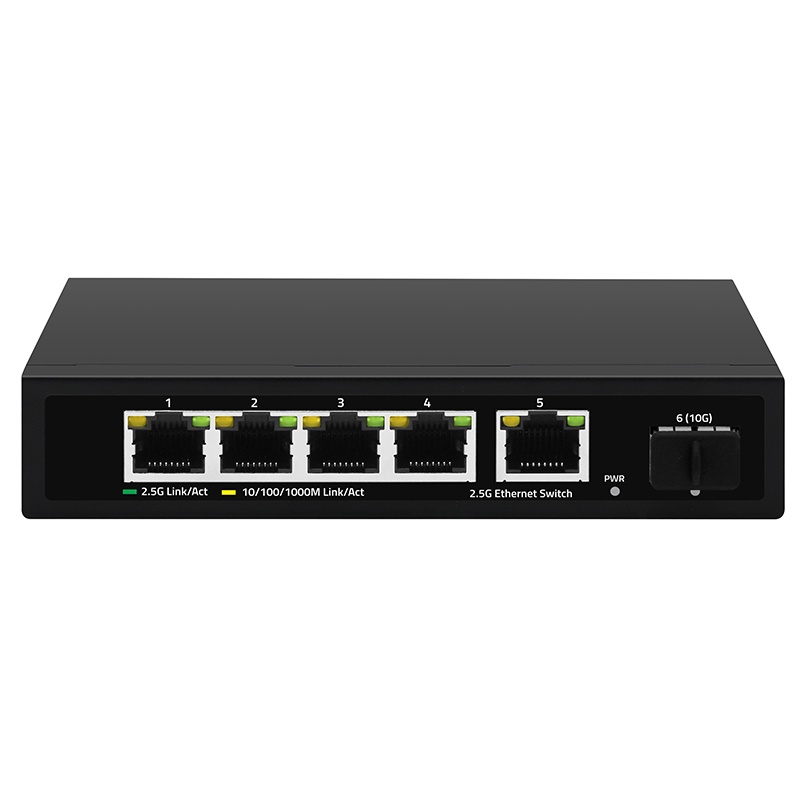

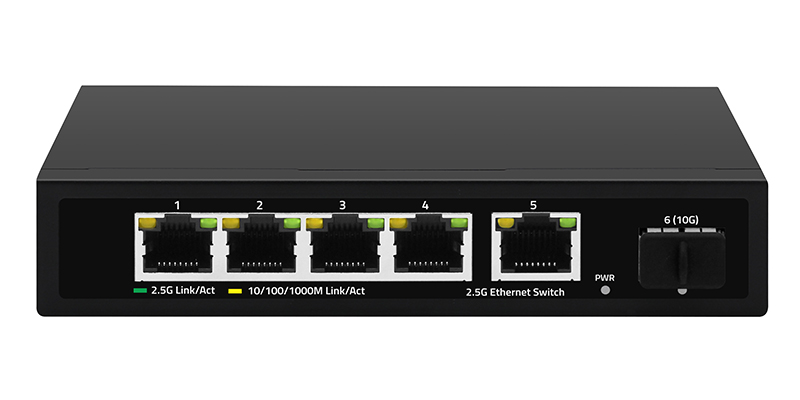

Indicator |
|
|
PWR (Power) |
On: Powered on Off: Powered off |
|
1-5 Port green light |
On: 2.5G Link connect normal Off: Link off Flashing: data transmitting |
|
1-5 Port yellow light |
On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting |
|
6 Port green light |
On:10G Link connect normal Off: Link off Flashing: data transmitting |
|
Physical specification |
|
|
Structure size |
Product Size: 140*93*28mm Package Size: 203*160*55mm Product Net-Weight: 0.33KG Product Gross-Weight: 0.46KG |
|
Packing info |
Carton size: 580*335*445mm Packing Qty: 40pcs Packing weight: 19.5KG |
|
Packaging list |
1. Switch 1pcs、 2. User manual 1pcs、 3. Certificate 1pcs、 4. Power adapter 1pcs |
|
Order Info |
|
|
Model Number |
SST-TG5E1S |

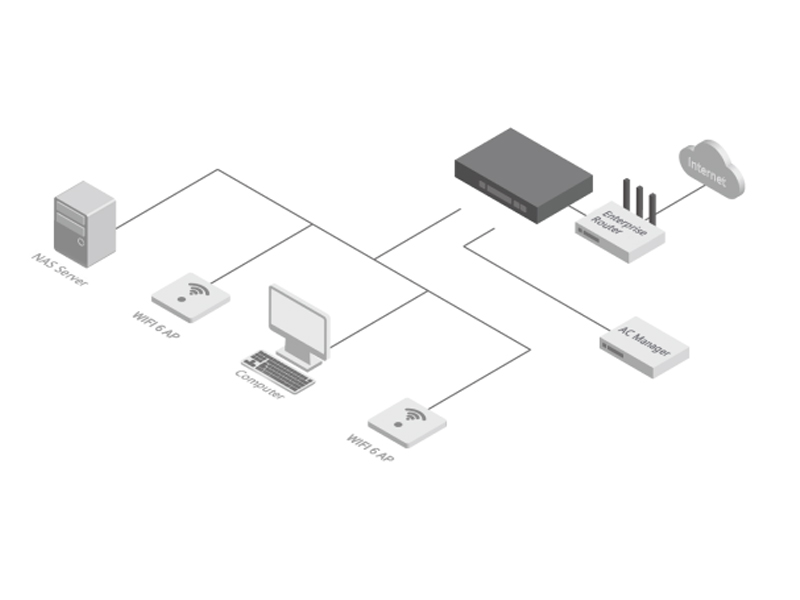

Product application
