Shenzhen SunSoont Technology Co., Ltd

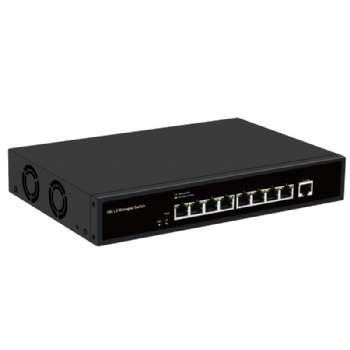

8-Port 10G L3 Managed Ethernet Switch
Hardware Features
|
Description |
Specification |
|
Model |
SST-MTG8ETG |
|
Interface |
8*10Gbps RJ45 ports |
|
Port Standard |
IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.3az (Energy Efficient Ethernet) IEEE802.1w Rapid Spanning Tree Protocol IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) IEEE802.3 bz (2.5G/5G Ethernet standard) |
|
Switching Bandwidth |
160Gbps |
|
Packet Forwarding Rate |
119.04Mpps |
|
Packet Buffer |
12Mbit |
|
MAC Address Table |
16K |
|
Jumbo Frame |
Support |
|
VLAN |
VLAN range 1-4094, maximum active VLAN is 4K |
|
Transmission Method |
Store and Forward |
|
Power Supply |

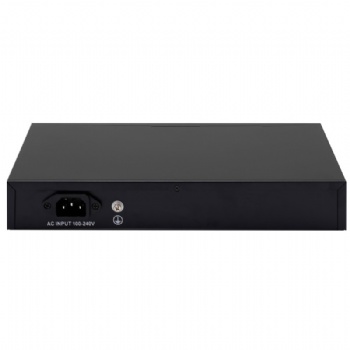

AC 100-240V 50/60Hz DC 12V 4A |
|
Mainboard Power Consumption |
33.97W |
|
Structure Information |
Product Dimensions: 270*181*44mm Packaging Dimensions: 312*262*84mm Product Net Weight: 1.3KG Product Gross Weight: 1.75KG |
|
Package Information |
Carton Dimensions: 540*435*332mm Packing Quantity: 10PCS Packing Weight: 18.5KG |
|
Package Contents |
Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounting kit 1 pair |
|
Fan Quantity |
2 |
|
Installation |
Desktop, Rack-mounting |
|
Surge Protection |
Port Surge: Common mode 4KV, Differential mode 1KV Electrostatic ESD: Air 8KV, Contact 6KV |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-40~70°C |
|
Operation Humidity |
10%~90%, non condensing |
|
Storage Humidity |
5%~95%, non condensing |
|
PWR Green LED |
On: Powered on Off: Powered off |
|
SYS Green LED |
On: The system is normal Flashing: System startup in progress |
|

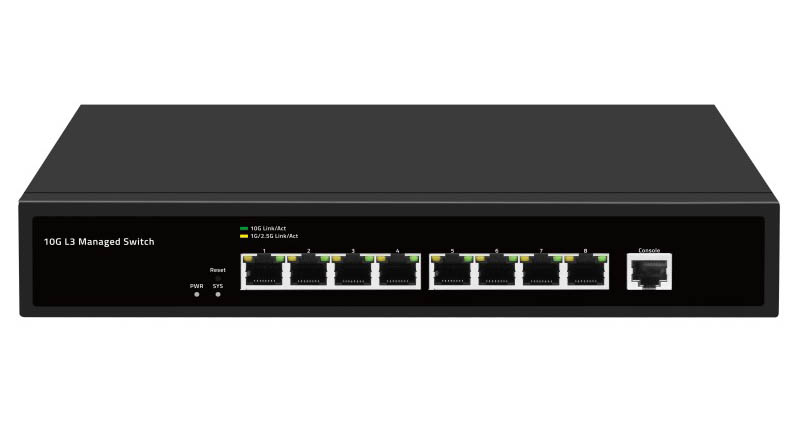

Ports 1-8 |
Green LED on: 10Gbps Link normal Yellow LED on: 1G/2.5G/5Gbps Link normal Off: Link blocked Flashing: Data transmitting |
|
Reset |
Long press for 6 seconds to restore factory settings |
Software Features
|
L3 Function |
|
|
IPv4 |
IPv4 VLAN Interface |
|
IPv4 Static Routes |
|
|
ARP |
|
|
IPv6 |
IPv6 VLAN Interface |
|
IPv6 Static Routes |
|
|
IPv6 ND |
|
|
RIP |
V1/V2 |
|
OSPF |
Router-ID |
|
Authentication |
|
|
V2 |
|
|
L2 Function |
|
|
Port |
Port Switch configuration |
|
Port Description configuration |
|
|
Port Speed configuration |
|
|
Port Duplex configuration |
|
|
Port Flow Control configuration |
|
|
Support 10G/2.5G |
|
|
Jumbo Frame, Up to 10K |
|
|
EEE |
|
|
Fiber Module(DDM) |
|
|
Link Aggregation |
Support load balance policy; Base on MAC and IP-MAC |
|
Static and Dynamic Group |
|
|
Support LACP |
|
|
Up to 8 groups |
|
|
Storm Control |
Boardcast suppression |
|
Unknown Multicast |
|
|
Unknown Unicast |
|
|
Port Mirroring |
One to one monitor |
|
Many to one monitor |
|
|
Ingress/Egress/Both |
|
|
Up to 4 session groups |
|
|
Port Security |
MAC Address Constraints |
|
Port Security MAC Address |
|
|
Protect/Restrict/Shutdown |
|
|
Port Isolation |
Support |
|
Port Rate-limit |
Support |
|
Loopback Detection |
Support |
|
VLAN |
Access/Trunk/Hybrid |
|
VLAN Tunnel (Q-in-Q Tunnel) |
|
|
VLAN range 1-4094, maximum active VLAN is 4K |
|
|
Voice VLAN |
|
|
MAC VLAN |
|
|
Surveillance VLAN |
|
|
Protocol VLAN |
|
|
GVRP |
|
|
MAC Address |
Dynamic MAC address |
|
Static MAC address |
|
|
Filtering MAC Address |
|
|
Spanning Tree Protocol |
STP/RSTP/MSTP |
|
BPDU Filter |
|
|
BPDU Guard |
|
|
Edge Port |
|
|
LLDP |
LLDP |
|
LLDP MED |
|
|
Multicast |
IGMP Snooping |
|
IGMP V1/V2/V3 |
|
|
Router Port |
|
|
Static IGMP group address |
|
|
IGMP groups filtering |
|
|
Querier |
|
|
MLD Snooping |
|
|
MVR |
|
|
QoS |
Traffic classification based, Strict priority and WRR |
|
Port Priority |
|
|
802.1P Priority |
|
|
IP TOS Priority |
|
|
IP DSCP Priority |
|
|
Support up to 8 queues per port |
|
|
Priority Remarking |
|
|
ERPS |
Only SFP port |
|
Services |
|
|
DHCP |
DHCP Server |
|
IP Pool |
|
|
Static Binding |
|
|
Option 43 |
|
|
DHCP Relay |
|
|
Access Protocol |
HTTP |
|
HTTPS |
|
|
Telnet |
|
|
SSHv2 |
|
|
Manager ACL |
|
|
Session Timeout |
|
|
Password Retry Count |
|
|
Silent Time |
|
|
Security |
|
|
AAA |
RADIUS |
|
TACACS+ |
|
|
802.1X |
|
|
Base on port/MAC/local/WEB |
|
|
DHCP Snooping |
Global/VLAN |
|
Option 82 |
|
|
Circuit ID |
|
|
IP Source Guard |
Support |
|
Dynamic ARP Inspection |
Support |
|
DoS |
Support |
|
ACL |
MAC ACL |
|
IPv4 ACL |
|
|
IPv6 ACL |
|
|
Diagnostics |
|
|
Syslog |
Logging Message |
|
Remote Server |
|
|
Ping |
Support |
|
Traceroute |
Support |
|
Copper Test |
Support |
|
UDLD |
Support |
|
Equipment Management |
|
|
Manager Access |
Console |
|
HTTP/HTTPS |
|
|
Telnet |
|
|
SSH |
|
|
SNMP |
|
|
Manager IP |
Static Address |
|
DHCP Client |
|
|
Support IPv4 and IPv6 address |
|
|
Manager VLAN |
|
|
DNS |
|
|
Time Synchronization |
SNTP |
|
Manual Time |
|
|
SNMP |
V1/V2C/V3 |
|
Community |
|
|
V3 User |
|
|
Group |
|
|
Trap Host |
|
|
SNMP MIB |
RFC 1213 MIB-II |
|
RFC 1493 Bridge MIB |
|
|
RFC 1643 Ethernet MIB |
|
|
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) |
|
|
RFC 2863 Interface MIB |
|
|
LLDP |
|
|
Private MIB |
|
|
RMON |
Statistics |
|
History Configuration |
|
|
Event Configuration |
|
|
Alarm Configuration |
|
|
User Management |
Support |
|
Firmware Management |
Firmware upgrade |
|
Double Image; Swap between Active and Alternate firmware image |
|
|
Configuration Management |
Upload and download |
|
Upload and download via USB interface |
|
|
Save |
Support |
|
Restart |
Support |
|
Factory Defaults |
Support |
|
Standard Compliance |
|
IEEE 802.3x flow control and back pressure |
|
IEEE 802.3ad port trunk with LACP |
|
IEEE 802.1D Spanning Tree Protocol |
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
IEEE 802.1s Multiple Spanning Tree Protocol |
|
IEEE 802.1p Class of Service |
|
IEEE 802.1Q VLAN tagging |
|
IEEE 802.1x Port Authentication Network Control |
|
IEEE 802.1ab LLDP |
|
RFC 768 UDP |
|
RFC 793 TFTP |
|
RFC 791 IP |
|
RFC 792 ICMP |
|
RFC 2068 HTTP |
|
RFC 1112 IGMP v1 |
|
RFC 2236 IGMP v2 |
|
RFC 3376 IGMP v3 |
|
RFC 2710 MLD v1 |
|
FRC 3810 MLD v2 |
|
RFC 2328 OSPF v2 |

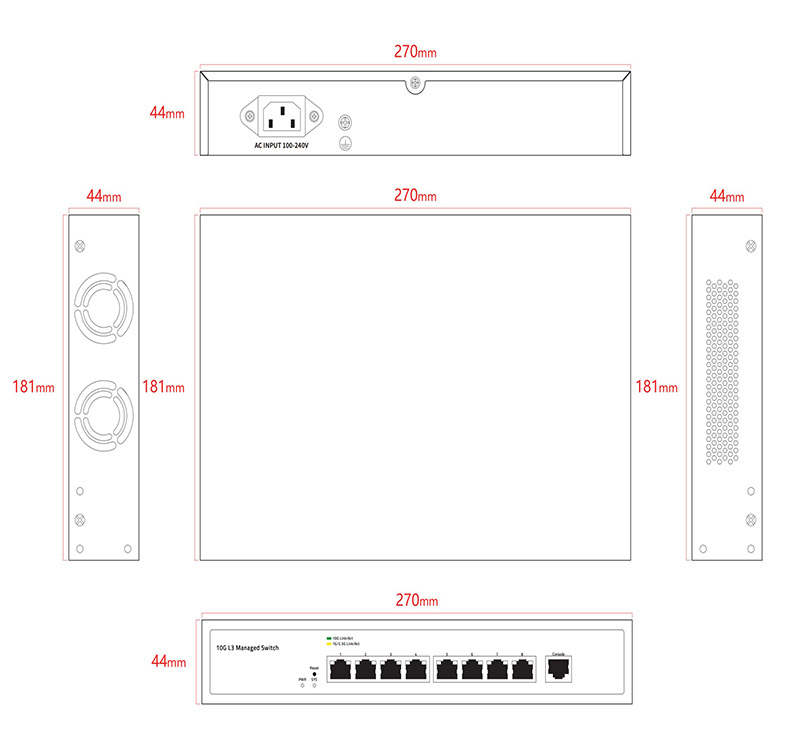

Product Structure Diagram
