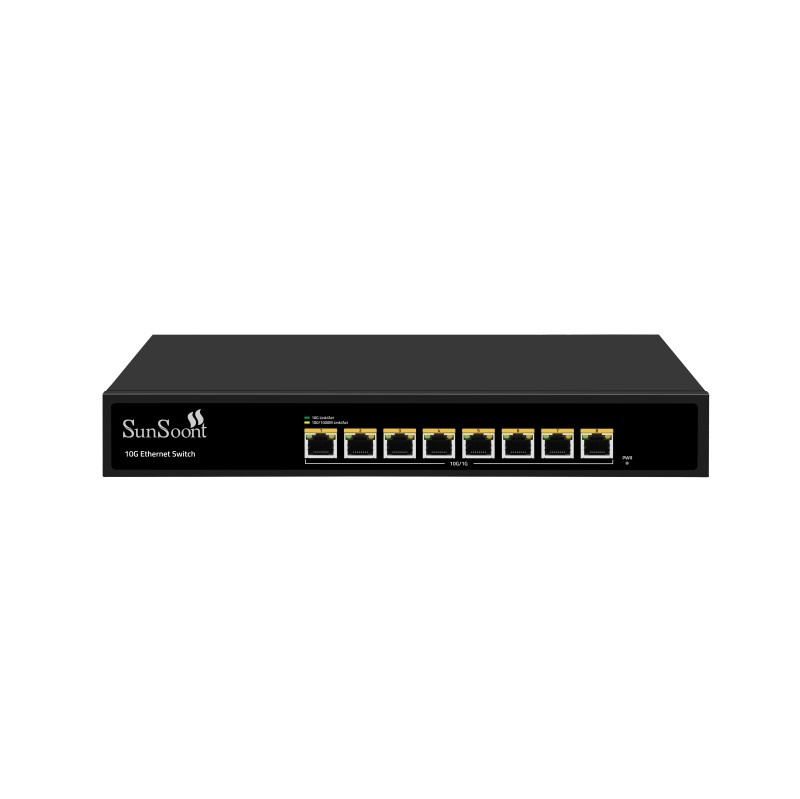

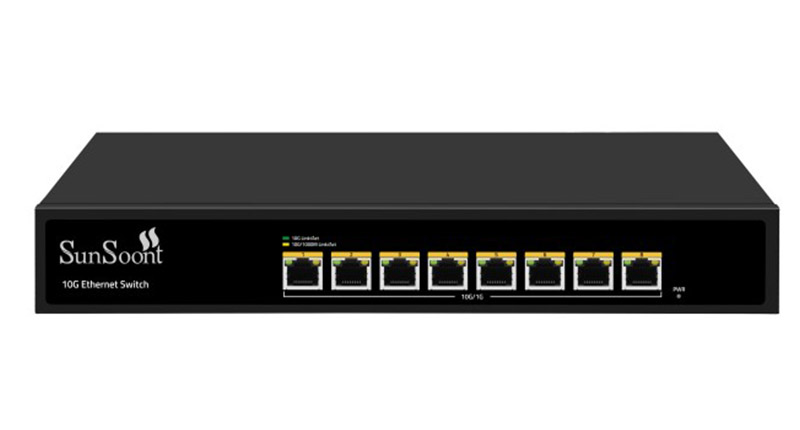

8 Port Full 10G RJ45 Ethernet Switch

This 8-port full 10G RJ45 Ethernet Switch adopts a high-quality and high-speed network chip solution with a full 10G network interface and smooth line speed forwarding.
It is configured with 8* 10G RJ45 ports, which supports 1.25G/2.5G/10G rates. It adopts a storage and forwarding mechanism, and internally integrates a high capacity
cache to ensure that all ports can achieve 10G non-blocking line speed forwarding, and adopt to more emergency situations. With a sturdy and durable and high strength
steel shell design, the efficient heat dissipation ensures stable operation of the product. The switch can be widely used in security network video monitoring, hotels,
campuses, large and medium-sized enterprise network engineering, and other fields.

Main Feature

1, 8*10G RJ45 ports.

2, Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3 bz, IEEE 802.3 ae, IEEE 802.3.x.

3, RJ45 port support 1.25G/2.5G/10G .

4, Support Port Auto MDI/MDIX.

5, Panel Indicators monitor working conditions and assist in fault analysis.

6, Flow Control Mode, IEEE802.3x standard for full duplex, and back pressure standard for half duplex.

7, Supports one click code dialing and three speed switching.

8, Support Purge Protection: ESD: air 8KV, Contact 6KV, Class B.

Technical Specification

I/O Interface
Model No.	SST-TG8E
Power Supply	AC 100-240V 50/60Hz DC 12V 8A
Ethernet	8* 10G RJ45 ports
Chip Scheme	RTL9303
Performance
Bandwidth	160Gbps
Packet Forwarding Rate	119.04Mpps
RAM	128MByte
Flash Memory	16MByte
Memory Cache	12Mbit
Mac Address Table	16K
Jumbo Frame	10Kbytes
Standard
Network Protocol	IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) IEEE802.3 bz (2.5G/5G Ethernet standard)
Industry Standard	EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge)
Certification
Safety certification	CE, FCC, RoHS
Environment Standard
Working environment	Working temperature: - 10~50 ° C Storage temperature: - 40~70 ° C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Functional indication
Indicator Light	PWR (Power Indicator)
PWR（Power Indicator）	On: Powered on Off: Powered off
SYS	Flashing: System startup in progress On: System startup completed
Dialing light	Left Side: 1 to 8 Ports have speeds of 10G/1G. Middle: 1 to 8 Ports have speeds of 10G/2.5G. Right Side: 1 to 4 Ports have speeds of 10G/1G, 5 to 8 Ports have speeds of 10G/2.5G.
Physical specifications

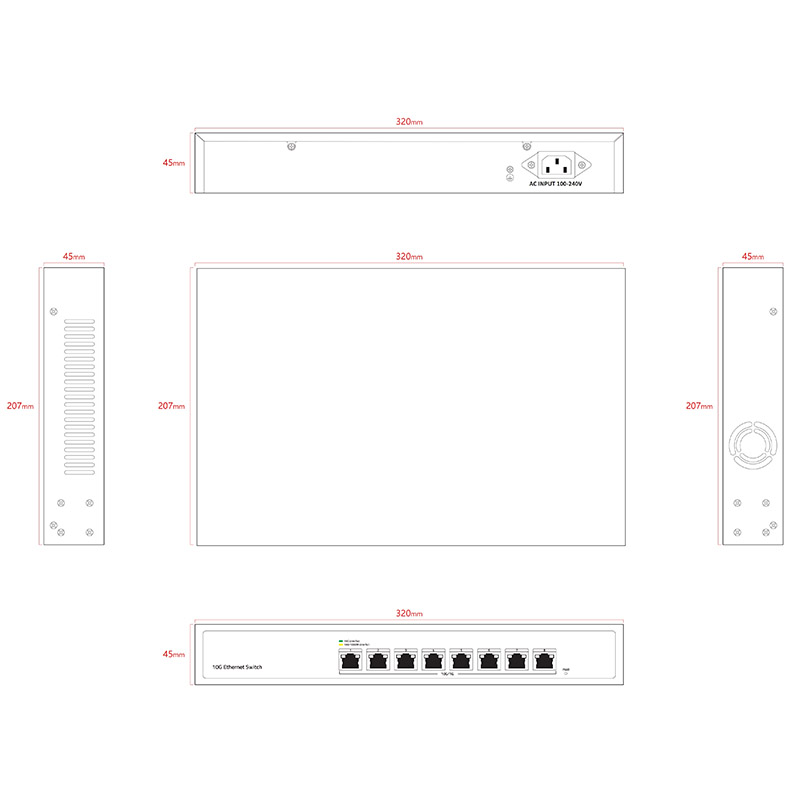

Structure size	Product size: 32020745mm Package size: 37029085mm Net weight: 1.72KG Gross weight: 2.21KG
Packing information	Carton size: 445310390mm Packing quantity: 5 Pcs Packing weight: 11.6KG
Supply voltage	Power Adapter: 12V 8A
Power	Maximum 13.8W
Packing list	Switch 1PCS, manual 1PCS, certificate of conformity 1PCS, power cord 1PCS
