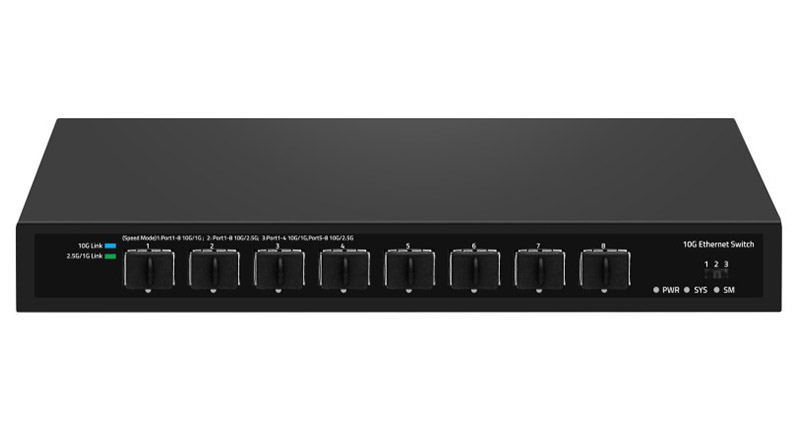

8 Port Full 10G SFP+ Ethernet Switch

This 8-port full 10G SFP Ethernet Switch adopts a high-quality and high-speed network chip solution with a full 10G network interface and smooth line speed forwarding.
It is configured with 8* 10G SFP+ ports, which supports 1.25G/2.5G/10G rates. It adopts a storage and forwarding mechanism, and internally integrates a high capacity
cache to ensure that all ports can achieve 10G non-blocking line speed forwarding, and adopt to more emergency situations. With a sturdy and durable and high strength
steel shell design, the efficient heat dissipation ensures stable operation of the product. The switch can be widely used in security network video monitoring, hotels, campuses,
large and medium-sized enterprise network engineering, and other fields.

Main Feature

1, 8*10G SFP+ ports.

2, Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3 bz, IEEE 802.3 ae, IEEE 802.3.x.

3, SFP+ port support 1.25G/2.5G/10G .

4, Support Port Auto MDI/MDIX.

5, Panel Indicators monitor working conditions and assist in fault analysis.

6， Flow Control Mode, IEEE802.3x standard for full duplex, and back pressure standard for half duplex.

7, Supports one click code dialing and three speed switching.

8, Support Purge Protection: ESD: air 8KV, Contact 6KV, Class B.

Technical Specification

I/O Interface
Model No.	SST-TG8S
Power input	DC 12V
Ethernet	8* 10G SFP+ ports
Chip Scheme	RTL9303
Performance
Bandwidth	160Gbps
Packet Forwarding Rate	119.04Mpps
RAM	128MByte
Flash Memory	16MByte
Memory Cache	12Mbit
Mac Address Table	16K
Jumbo Frame	12Kbytes
Standard
Network Protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet fiber standard) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control)
Industry Standard	EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge)
Optical Media	Multimode Fiber: 50/125, 62.5/125, 100/140um Single mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety certification	CE, FCC, RoHS
Environment Standard
Working environment	Working temperature: - 10~50 ° C Storage temperature: - 40~70 ° C Working humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Functional indication
Indicator Light	PWR (Power Indicator)
PWR（Power Indicator）	On: Powered on Off: Powered off
SYS	Flashing: System startup in progress On: System startup completed
SFP Port Light	Blue on: 10G link Green on: 1000M/2500M link Flashing: Data transmitting Off: Link not working
Dialing light	Left Side: 1 to 8 Ports have speeds of 10G/1G. Middle: 1 to 8 Ports have speeds of 10G/2.5G. Right Side: 1 to 4 Ports have speeds of 10G/1G, 5 to 8 Ports have speeds of 10G/2.5G.
Physical specifications

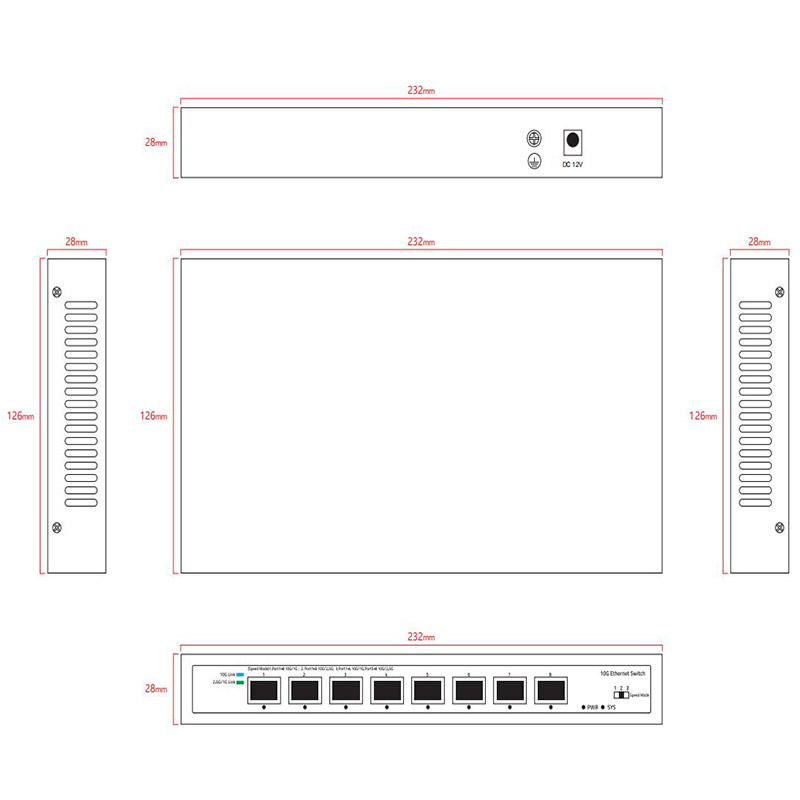

Structure size	Product size: 23212628mm Package size: 35021055mm Net weight: 0.83KG Gross weight: 1.11KG
Packing information	Carton size: 580440370mm Packing quantity: 20 Pcs Packing weight: 23.2KG
Supply voltage	Power Adapter: 12V2A
Power	Maximum 18W
Packing list	Switch 1PCS, manual 1PCS, certificate of conformity 1PCS, power cord 1PCS
