product fault tolerance, ensure stable network operation and link load balancing; the device supports automatic DoS attack prevention, SNMP, IEEE 802.1q, spanning tree,
rapid generation tree protocol, link aggregation and other functions. Advanced security features and advanced Quality of Service (QoS), can be used as a core, distribution
or access layer switch, with high port density, easy to manage, it is an ideal choice for a variety of commercial network applications.
Main Feature
Specification
|
I/O Interface |
|
|
Power |
AC100-240V/50-60Hz |
|
Ethernet |

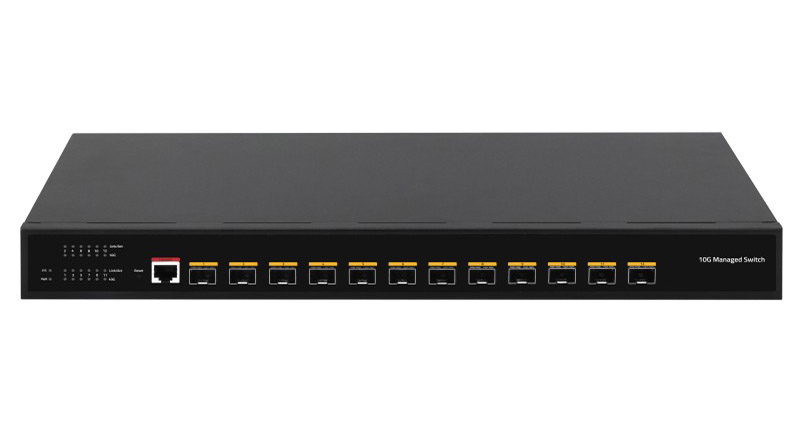

12* 10G SFP+ Ports 1* RJ45 Console Port |
|
Performance |
|
|
Bandwidth |
240Gbps |
|
Packet Buffer Memory |
178.56Mpps |
|
DDR SDRAM |
128MByte |
|
Flash Memory |
16MByte |
|
Package Cache |
16Mbit |
|
MAC Address Table |
32K |
|
Jumbo frame |
12Kbytes |
|
VLANs |
4096 |
|
MTBF |
100000 hours |
|
Standard |
|
|
Network Protocol |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet optical fiber) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3ad (link aggregation) IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (Virtual Local Area Network) IEEE 802.1p (VLAN Tags) IEEE 802.1X (User Authentication) |
|
Industry Standard |
EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge) |
|
Network Medium |
Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um |
|
Fiber Optic Medium |
Multimode fiber: 50/125, 62.5/125, 100/140um Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um |
|
Certification |
|
|
Safety Certificate |
CE, FCC, RoHS |
|
Environment |
|
|
Working Environment |
Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing |
|
Indication |
|
|
Indicator |
PWR (Power Indicator) ，SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator) |
|
PWR（ Power indicator） |
On: Powered on Off: Powered Off |
|
SYS（ System light） |
On: System normal, Flashing: system startup |
|
10G（ Link Light） |
On: 10G Link |
|
ACT(Data Light) |
On: Connecting; Flashing: Data Transmit; Off: Disconnect |
|
Physical specifications |
|
|
Structure Size |

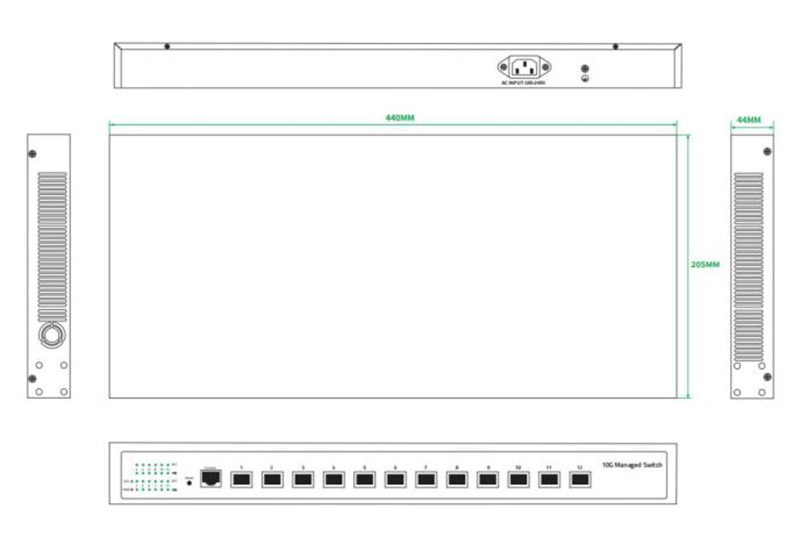

Product Dimensions: 440*205*44mm Package Dimensions: 500*290*85mm Product N.W: 2.50 KG Product G.W: 3.12 KG |
|
Packing Info |
Carton Dimensions: 520*445*300mm Packing Quantity: 5 PCS Packing weight: 16.6 KG |
|
Power Voltage |
Voltage: AC100-240V, 50/60Hz Power supply: 12V8A |
|
Package List |
Switch: 1 Set, Instruction manual: 1 PC, Certificate: 1 PC, Power cord: 1 PC Serial cable: 1 PC, Rack ear: 1 Pair |
Software function
|
L3 Function |
|
|
IPv4 |
IPv4 VLAN Interface |
|
IPv4 Static Routes |
|
|
ARP |
|
|
IPv6 |
IPv6 VLAN Interface |
|
IPv6 Static Routes |
|
|
IPv6 ND |
|
|
RIP |
V1/V2 |
|
OSPF |
Router-ID |
|
Authentication |
|
|
v2 |
|
|
L2 Function |
|
|
Port |
Port Switch |
|
Port Description |
|
|
Port Speed |
|
|
Port Duplex |
|
|
Port Flow Control |
|
|
Jumbo, Up to 10K |
|
|
Support 10G/2.5G (2023.3.2) |
|
|
Fiber Module(DDM) |
|
|
Link Aggregation |
Supports load balance policy; Base on MAC and IP-MAC |
|
Static and Dynamic Group |
|
|
Supports LACP |
|
|
Up to 8 groups |
|
|
Storm Control |
Broadcast |
|
Unknown Multicast |
|
|
Unknown Uni-cast |
|
|
Port Mirroring |
One to one monitor |
|
Many to one monitor |
|
|
Ingress/Egress/Both |
|
|
Up to 4 session groups |
|
|
Port Security |
MAC Address Constraints |
|
Port Security MAC Address |
|
|
Protect/Restrict/Shutdown |
|
|
Port Isolation |
|
|
Port Rate-limit |
|
|
Loopback Detection |
|
|
VLAN |
Access/Trunk/Hybrid |
|
VLAN Tunnel （Q-in-Q Tunnel） |
|
|
Configurable VID from 1 - 4094; Max. 4K static VLAN groups |
|
|
Voice VLAN |
|
|
MAC VLAN |
|
|
Surveillance VLAN |
|
|
Protocol VLAN |
|
|
GVRP |
|
|
MAC Address |
Dynamic Address |
|
Static Address |
|
|
Filtering Address |
|
|
Spanning Tree Protocol |
STP/RSTP/MSTP |
|
BPDU Filter |
|
|
BPDU Guard |
|
|
Edge Port |
|
|
ERPS |
Only SFP port |
|
ALL Port |
|
|
LLDP |
LLDP |
|
LLDP MED |
|
|
Multicast |
IGMP Snooping |
|
IGMP V1/V2/V3 |
|
|
Router Port |
|
|
Static IGMP group address |
|
|
IGMP groups filtering |
|
|
Queerer |
|
|
MLD Snooping |
|
|
MVR |
|
|
QoS |
Traffic classification based, Strict priority and WRR |
|
Port Priority |
|
|
802.1P Priority |
|
|
IP TOS Priority |
|
|
IP DSCP Priority |
|
|
Supports up to 8 queues per port |
|
|
Priority Remarking |
|
|
Services |
|
|
DHCP |
DHCP Server |
|
IP Pool |
|
|
Static Binding |
|
|
DHCP Relay |
|
|
Option 43 |
|
|
Access Protocol |
HTTP |
|
HTTPS |
|
|
Telnet |
|
|
SSHv2 |
|
|
Manager ACL |
|
|
Session Timeout |
|
|
Password Retry Count |
|
|
Silent Time |
|
|
Security |
|
|
AAA |
RADIUS |
|
TACACS+ |
|
|
802.1X |
|
|
Base on port/MAC/local/WEB |
|
|
DHCP Snooping |
Global/VLAN |
|
Option 82 |
|
|
Circuit ID |
|
|
IP Source Guard |
|
|
Dynamic ARP Inspection |
|
|
DOS Anti Attack |
|
|
ACL |
MAC ACL |
|
IPv4 ACL |
|
|
IPv6 ACL |
|
|
Diagnostics |
|
|
Sys log |
Logging Message |
|
Remote Server |
|
|
Ping |
|
|
Trace route |
|
|
Copper Test |
|
|
UDLD |
|
|
Management |
|
|
Manager Access |
Console |
|
HTTP/HTTPS |
|
|
Telnet |
|
|
SSH |
|
|
SNMP |
|
|
Manager IP |
Static Address |
|
DHCP Client |
|
|
Supports IPv4 and IPv6 address |
|
|
Manager VLAN |
|
|
DNS |
|
|
Time Synchronization |
SNTP |
|
Manual Time |
|
|
SNMP |
V1/V2C/V3 |
|
Community |
|
|
V3 User |
|
|
Group |
|
|
Trap Host |
|
|
SNMP MIB |
RFC 1213 MIB-II |
|
RFC 1493 Bridge MIB |
|
|
RFC 1643 Ethernet MIB |
|
|
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) |
|
|
RFC 2863 Interface MIB |
|
|
LLDP |
|
|
Private MIB |
|
|
RMON |
Statistics |
|
History |
|
|
Event |
|
|
Alarm |
|
|
User |
|
|
Firmware |
Firmware Upgrade |
|
Configuration |
Upload and download |
|
Upload and download via USB interface |
|
|
Save |
|
|
Restart |
|
|
Factory Defaults |
|
|
Standards Compliance |
|
|
IEEE 802.3x flow control and back pressure |
|
|
IEEE 802.3ad port trunk with LACP |
|
|
IEEE 802.1D Spanning Tree Protocol |
|
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
IEEE 802.1s Multiple Spanning Tree Protocol |
|
|
IEEE 802.1p Class of Service |
|
|
IEEE 802.1Q VLAN tagging |
|
|
IEEE 802.1x Port Authentication Network Control |
|
|
IEEE 802.1ab LLDP |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
RFC 768 UDP |
|
|
RFC 793 TFTP |
|
|
RFC 791 IP |
|
|
RFC 792 ICMP |
|
|
RFC 2068 HTTP |
|
|
RFC 1112 IGMP v1 |
|
|
RFC 2236 IGMP v2 |
|
|
RFC 3376 IGMP v3 |
|
|
RFC 2710 MLD v1 |
|
|
FRC 3810 MLD v2 |
|
|
RFC 2328 OSPF v2 |
|
