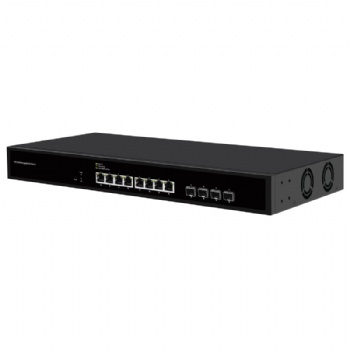

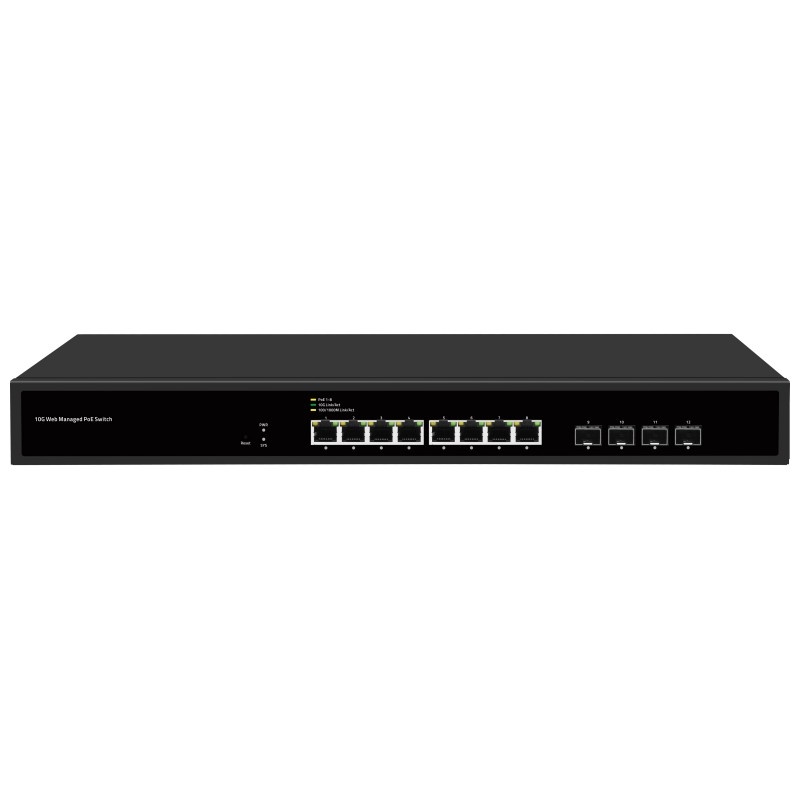

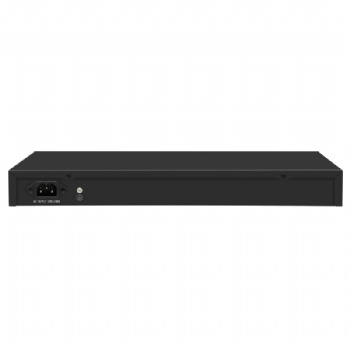

12-Port 10G Web Managed Ethernet PoE Switch
Hardware Features
|
Description |
Specification |
|
Model |
SST-WPTG8E4STG |
|
Interface |
8*10Gbps PoE ports 4*10Gbps SFP+ ports |
|
Port Standard |
IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) |
|
Switching Bandwidth |
240Gbps |
|
Packet Forwarding Rate |
178.56Mpps |
|
Packet Buffer |
16Mbit |
|
MAC Address Table |
32K |
|
VLAN |
VLAN range 1-4094, maximum active VLAN is 4K |
|
Jumbo Frame |
Support |
|
Transmission Method |
Store and Forward |
|
PoE Standard |
IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3bt (90W) |
|
PoE Port Output Voltage |
DC 44-57V |
|
PoE Ports |
Ports 1-4 support BT90W power supply Ports 5-8 PoE power output <30W |
|
PoE Power Budget |
200W |
|
Surge Protection |
Port Surge: Common mode 4KV, Differential mode 1KV Electrostatic ESD: Air 8KV, Contact 6KV |
|
Operating Temperature |
0~40°C |
|
Storage Temperature |
-40~70°C |
|
Operation Humidity |
10%~90%, non condensing |
|
Storage Humidity |
5%~95%, non condensing |
|
Power Supply |
AC 100-240V 50/60Hz DC 54V3.7A &12V5A |
|
Mainboard Power Consumption |
48.75W |
|
Structure Information |
Product Dimensions: 440*204*44mm Packaging Dimensions: 500*290*85mm Product Net Weight: 2.9KG Product Gross Weight: 3.48KG |
|
Packing Information |
Carton Dimensions: 520*445*310mm Packing Quantity: 5PCS Packing Weight:18.4KG |
|
Package Contents |
Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs,Rack-mounted kit 1 pair |
|
Fan Quantity |
2 |
|
Installation |
Desktop, Rack-mounting |
|
PWR Green LED |
On: Powered on Off: Powered off |
|
SYS Green LED |
On: The system is normal Flashing: System startup in progress |
|
Ports 1-8 |
Green LED on: 10Gbps Link normal Yellow LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting |
|
Ports 9-12 |
Green LED on: 10Gbps Link normal Yellow LED on: 1G/2.5G/5Gbps Link normal Off: Link blocked Flashing: Data transmitting |
|
PoE Yellow LED |
On: PoE powered on Off: PoE powered off |
|
Reset |
Long press for 6 seconds to restore factory settings |
Software Features
|
L2 Function |
|
|
Port |
Port Switch configuration |
|
Port Speed configuration |
|
|
Port Duplex configuration |
|
|
Port Flow Control configuration |
|
|
EEE |
|
|
Jumbo Frame |
|
|
Link Aggregation |
Support load balance policy; Base on MAC and IP-MAC |
|
Static and Dynamic Group |
|
|
LACP |
|
|
Up to 8 groups |
|
|
Storm Control |
Boardcast suppression |
|
Unknown Multicast |
|
|
Unknown Unicast |
|
|
Port Mirroring |
One to one monitor |
|
Many to one monitor |
|
|
Ingress/Egress/Both |
|
|
Up to 4 session groups |
|
|
Port Security |
MAC Address Constraints |
|
Protect/Restrict/Shutdown |
|
|
Port Isolation |
Support |
|
Port Rate-limit |
Support |
|
VLAN |
Access/Trunk/Hybrid |
|
VLAN Tunnel (Q-in-Q Tunnel) |
|
|
VLAN range 1-4094, maximum active VLAN is 4K |
|
|
MAC Address |
Filtering MAC Address |
|
Static MAC address |
|
|
Spanning Tree Protocol |
STP/RSTP/MSTP |
|
BPDU Filter |
|
|
BPDU Guard |
|
|
Edge Port |
|
|
LLDP |
LLDP |
|
LLDP MED |
|
|
Multicast |
IGMP Snooping |
|
Router Port |
|
|
Static IGMP group address |
|
|
IGMP V1/V2/V3 |
|
|
QoS |
Traffic classification, Supporting SP and WRR scheduling |
|
Port Priority |
|
|
802.1P Priority |
|
|
IP DSCP Priority |
|
|
Priority Remarking |
|
|
Support up to 8 queues per port |
|
|
ERPS |
Main Ring |
|
PoE |
|
|
PoE Configuration |
PoE used power |
|
PoE Type/Level/Power/Voltage/Current |
|
|
PoE Switch |
|
|
PoE power AF/AT adaptation |
|
|
IEEE 802.3bt,compatible with IEEE 802.3af/802.3at PoE |
|
|
Services |
|
|
Access Protocol |
HTTP |
|
Session Timeout |
|
|
Security |
DHCP Snooping |
|
Diagnostics |
|
|
Copper Test |
Support |
|
Ping |
Support |
|
Equipment Management |
|
|
Manager Access |
HTTP |
|
SNMP |
|
|
Time Synchronization |
SNTP |
|
Manual Time |
|
|
Manager IP |
Static Address |
|
Manager VLAN |
|
|
DNS |
|
|
DHCP Client |
|
|
SNMP |
V1/V2C/V3 |
|
Community |
|
|
V3 User |
|
|
Group |
|
|
Trap Host |
|
|
SNMP MIB |
RFC 1213 MIB-II |
|
RFC 1643 Ethernet MIB |
|
|
RFC 2863 Interface MIB |
|
|
User Management |
Support |
|
Firmware Management |
Firmware upgrade |
|
Configuration Management |
Upload/Backup Configuration |
|
Save |
Support |
|
Restart |
Support |
|
Factory Defaults |
Support |
|
Standard Compliance |
|
|
IEEE 802.3x flow control and back pressure |
|
|
IEEE 802.3ad port trunk with LACP |
|
|
IEEE 802.1D Spanning Tree Protocol |
|
|
IEEE 802.1w Rapid Spanning Tree Protocol |
|
|
IEEE 802.1p Class of Service |
|
|
IEEE 802.1Q VLAN tagging |
|
|
IEEE 802.1ab LLDP |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt PoE++ Power over Ethernet Plus Plus |
|
|
RFC 768 UDP |
|
|
RFC 793 TFTP |
|
|
RFC 791 IP |
|
|
RFC 792 ICMP |
|
|
RFC 2068 HTTP |
|
|
RFC 1112 IGMP v1 |
|
|
RFC 2236 IGMP v2 |
|
|
RFC 3376 IGMP v3 |
|

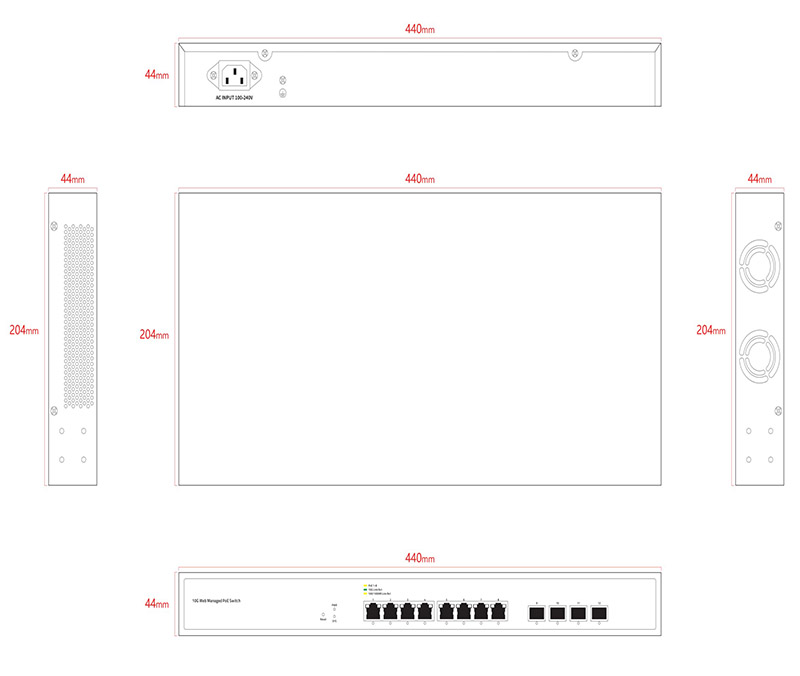

Product Structure Diagram
