Description

  Specification

Model

SST-WTG4E2STG

Interface

4*10Gbps RJ45 ports

2*10Gbps SFP+ ports

Port Standard

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE802.3ab (Gigabit Ethernet)

IEEE 802.3bz (5G Ethernet)

IEEE 802.3z (Gigabit Ethernet)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow Control)

Switching Bandwidth

120Gbps

Packet Forwarding Rate

89.28Mpps

Packet Buffer

12Mbit

MAC Address Table

16K

Jumbo Frame

VLAN range 1-4094, maximum active VLAN is 4K

VLAN

Support

Transmission Method

Store and Forward

Power Supply

AC 100-240V   50/60Hz

DC 12V 2.5A

Mainboard Power Consumption

24.3W

Structure Information

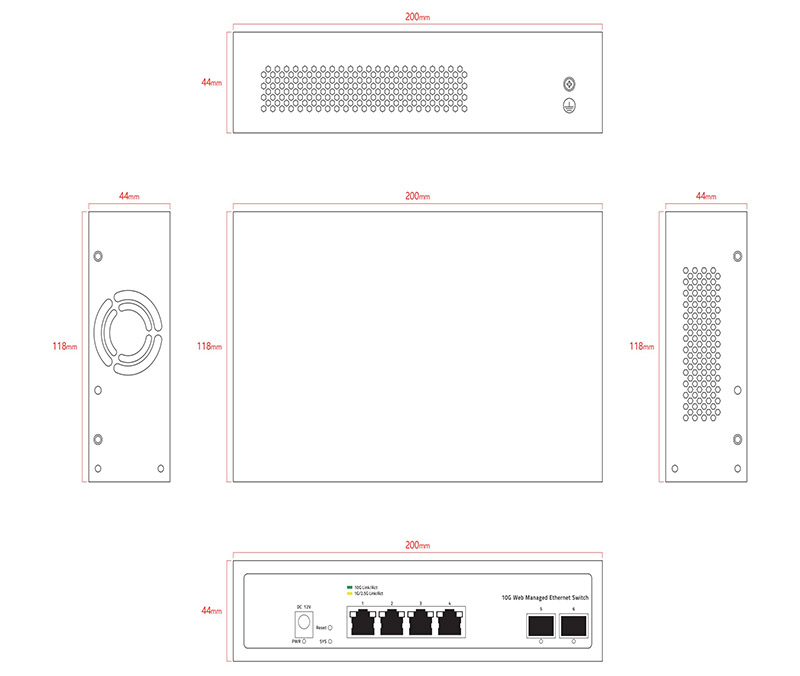

Product Dimensions: 200*118*44mm

Packaging Dimensions: 303*190*60mm

Product Net Weight: 0.77KG

Product Gross Weight: 1.01KG

Description

  Specification

Package Information

Carton Dimensions:  620*320*402mm

Packing Quantity: 20PCS

Packing Weight: 21.2KG

Package Contents

Switch 1pcs, AC Adapter 1pcs, Manual 1pcs, Certificate of Inspection 1pcs

Fan Quantity

1

Installation

Desktop

Surge Protection

Port Surge: Common mode 4KV, Differential mode 2KV(Class A)

Electrostatic ESD: Air 8KV(Class B), Contact 6KV (Class A)

Operating Temperature

0~40°C

Storage Temperature

-40~70°C

Operation Humidity

10%~90%, non condensing

Storage Humidity

5%~95%, non condensing

PWR Green LED

On: Powered on

Off: Powered off

SYS Green LED

On: The system is normal

Flashing: System startup in progress

Ports 1-4

Green LED on: 10Gbps Link normal

Yellow LED on: 100M/1G/2.5Gbps Link normal

Off: Link blocked

Flashing: Data transmitting

Ports 5-6

Green LED on: 10Gbps Link normal

Yellow LED on: 1G/2.5Gbps Link normal

Off: Link blocked

Flashing: Data transmitting

Reset

Long press for 6 seconds to restore factory settings

Description

  Specification

L2 Function

Port

Port Switch configuration

Port Description configuration

Port Speed configuration

Port Duplex configuration

Port Flow Control configuration

Jumbo Frame

EEE

Link Aggregation

Support load balance policy; Base on MAC and IP-MAC

Static and Dynamic Group

 LACP

Up to 8 groups

Storm Control

Boardcast suppression

Unknown Multicast

Unknown Unicast

Port Mirroring

One to one monitor

Many to one monitor

Ingress/Egress/Both

Up to 4 session groups

Port Security

MAC Address Constraints

Protect/Restrict/Shutdown

Port Isolation

Support

Port Rate-limit

Support

VLAN

Access/Trunk/Hybrid

VLAN Tunnel （Q-in-Q Tunnel）

VLAN range 1-4094, maximum active VLAN is 4K

MAC Address

Filtering MAC Address

Static MAC address

Description

  Specification

Spanning Tree Protocol

STP/RSTP/MSTP

BPDU Filter

BPDU Guard

Edge Port

Multicast

IGMP Snooping

Router Port

Static IGMP Join

IGMP V1/V2

QoS

Traffic classification, supporting SP and WRR scheduling

 Port Priority

802.1P Priority

IP DSCP Priority

Priority Remarking

Support up to 8 queues per port

ERPS

Main Ring

Loopback Detection

Support

Services

Access Protocol

HTTP

Session Timeout

Security

DHCP Snooping

Diagnostics

Copper Test

Support

Ping

Support

Equipment Management

Manager Access

HTTP

SNMP

Manager IP

Static Address

Manager VLAN

DNS

DHCP Client

Time Synchronization

SNTP

Manual Time

Description

  Specification

SNMP

V1/V2C/V3

Community

V3 User

Group

Trap Host

SNMP MIB

RFC 1213 MIB-II

RFC 1643 Ethernet MIB

RFC 2863 Interface MIB

User Management

Support

Firmware Management

Firmware upgrade

Configuration Management

Upload/Backup Configuration

Save

Support

Restart

Support

Factory Defaults

Support

Standard Compliance

IEEE 802.3x flow control and back pressure

IEEE 802.3ad port trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN tagging

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

RFC 3376 IGMP v3
